Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 05:24 AM
05 0520_05 2484 _07112018_212519.mp4
- Date
- 11/07/2018
- W/O
- 735028
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00462
- PipeID
- P20887
- Time
- 9:24 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6213
- Sewer Name
- 05 INGLEWOOD TRUNK #1 RELIEF
- City
- INGLEWOOD
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735028_TV05326_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2484
- Downstream MH
- 05 0520
- Dir. of Survey
- Upstream
- Length Surveyed
- 10.9 ft.
- Total Length
- 10.9 ft.
- Structural Index
- 2
- Structural Quick
- 3111
- Structural Rating
- 4
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (2)

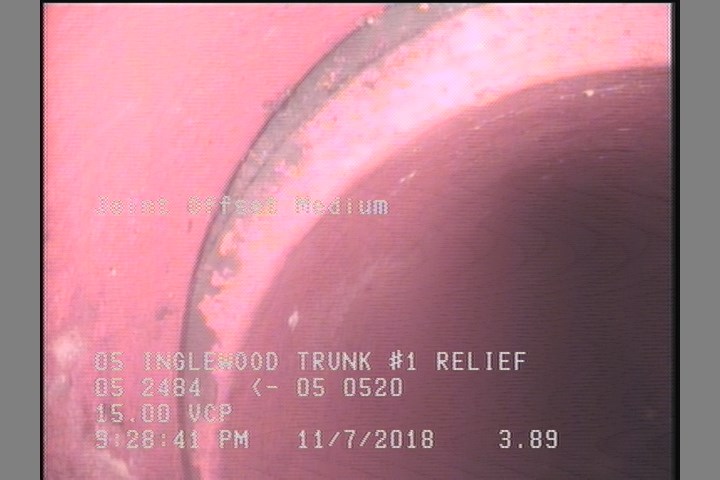

3.9 ft. - Joint Offset Medium

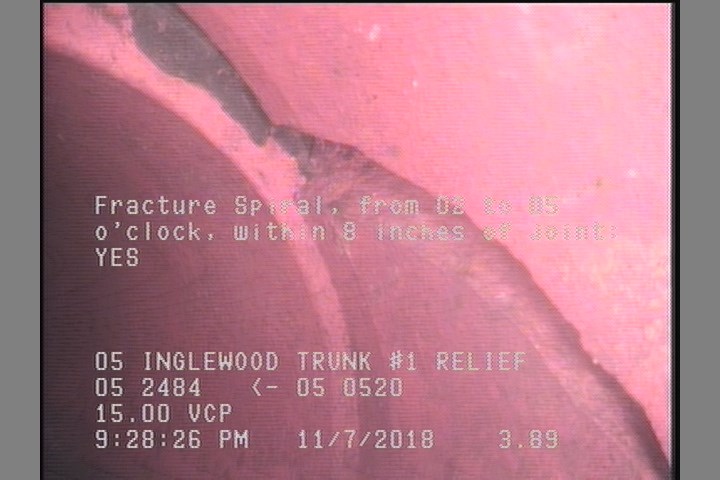

3.9 ft. - Fracture Spiral, from 02 to 05 o'clock, within 8 inches of joint: YES
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 3.9 | JOM | — |
| 3.9 | FS | — |
| 0 | MWL | — |
| 0 | AMH | 05 2484 |
| 0 | MWM | — |
| 0 | MGO | HEAVY STEAM |
| 0 | MGO | PIPE IS 8" |
| 10.9 | AMH | 05 0520 |
| 10.9 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MGO | CONNECTION AT MH 11 O'CLOCK |
| 10.9 | MGO | CONNECTION AT MH 12 O'CLOCK |
Properties (5)
- additional_info
- SC365241
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-11-07T21:24:24-08:00
- year_laid
- 35144
