Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 06:58 AM
05 2489_05 2488 _07112018_225817.mp4
- Date
- 11/07/2018
- W/O
- 735028
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00462
- PipeID
- P20884
- Time
- 10:58 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6213
- Sewer Name
- 05 INGLEWOOD TRUNK #1 RELIEF
- City
- INGLEWOOD
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735028_TV05326_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2489
- Downstream MH
- 05 2488
- Dir. of Survey
- Downstream
- Length Surveyed
- 362.7 ft.
- Total Length
- 362.7 ft.
- Structural Index
- 3
- Structural Quick
- 4132
- Structural Rating
- 12
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)

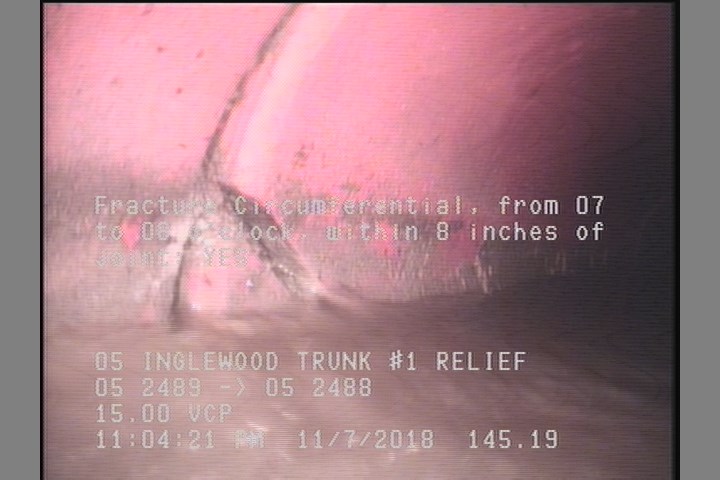

145.2 ft. - Fracture Circumferential, from 07 to 08 o'clock, within 8 inches of joint: YES

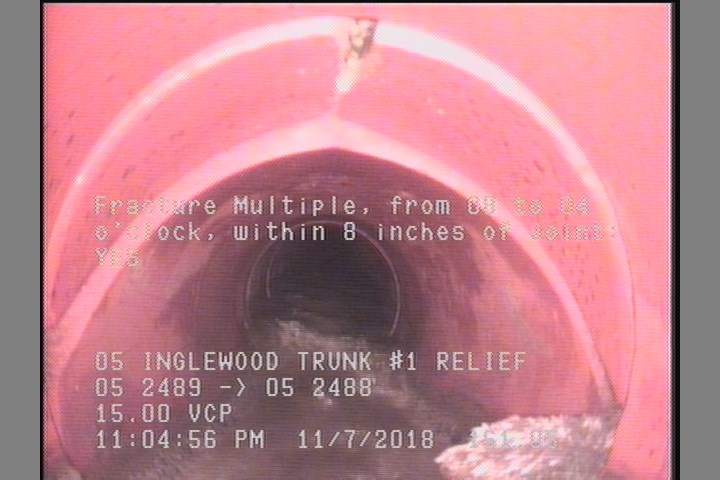

161 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

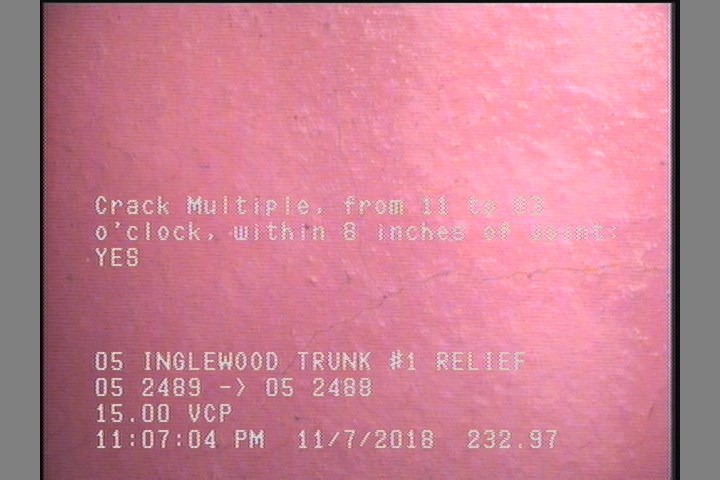

233 ft. - Crack Multiple, from 11 to 03 o'clock, within 8 inches of joint: YES

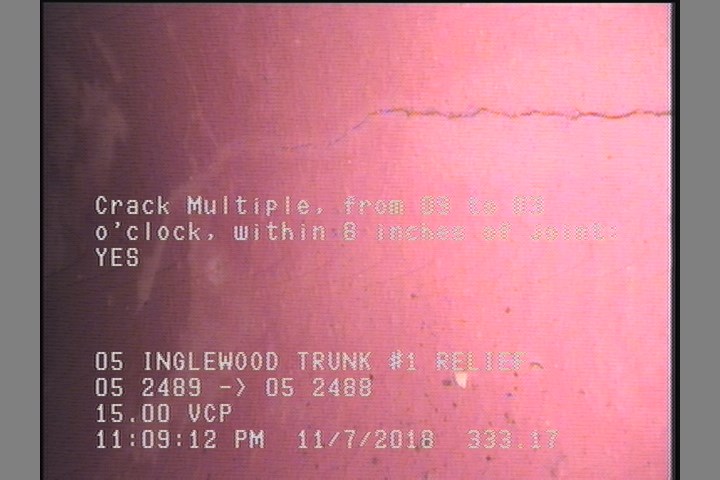

333.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 161.1 | RFJ | — |
| 161 | FM | — |
| 0 | MWM | — |
| 145.2 | FC | — |
| 84.1 | TF | — |
| 362.7 | AMH | 05 2488 |
| 233 | CM | — |
| 0 | MWL | — |
| 0 | AMH | 05 2489 |
| 333.2 | CM | — |
Properties (5)
- additional_info
- SC365241
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-11-07T22:58:10-08:00
- year_laid
- 35144
