Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 07:29 AM
05 2311_05 2310 _07112018_233046.mp4
- Date
- 11/07/2018
- W/O
- 735028
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00462
- PipeID
- P07433
- Time
- 11:29 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6213
- Sewer Name
- 05 INGLEWOOD TRUNK #1 RELIEF
- City
- INGLE WOOD
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735028_TV05326_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2311
- Downstream MH
- 05 2310
- Dir. of Survey
- Downstream
- Length Surveyed
- 509.2 ft.
- Total Length
- 509.2 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

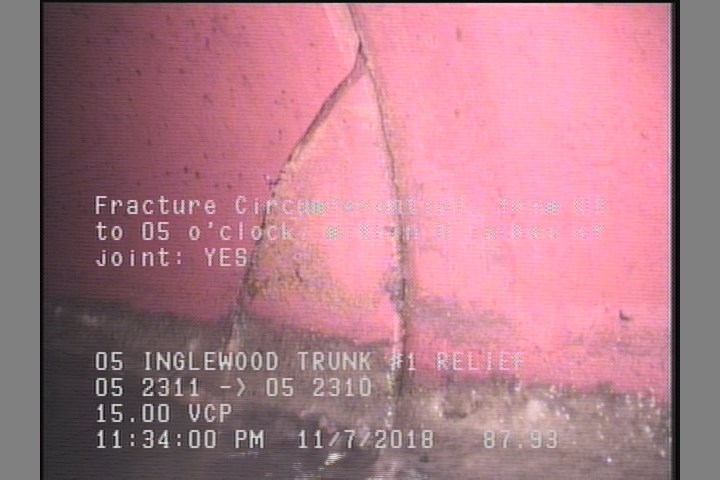

87.9 ft. - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES

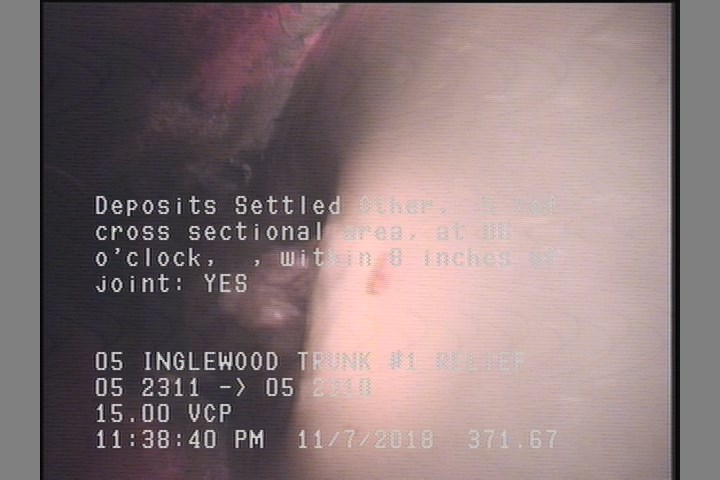

371.7 ft. - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 371.7 | DSZ | — |
| 509.2 | AMH | 05 2310 |
| 0 | AMH | 05 2311 |
| 87.9 | FC | — |
| 0 | MWM | — |
| 509.2 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 486.5 | RFJ | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC365241
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-11-07T23:29:25-08:00
- year_laid
- 30643
