Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 05:50 AM

  • 05 2484_05 2483 _07112018_215053.mp4

Date
11/07/2018
W/O
735028
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00462
PipeID
P20879
Time
9:50 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6213
Sewer Name
05 INGLEWOOD TRUNK #1 RELIEF
City
INGLEWOOD
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
05
Purpose
Routine Assessment
Project
RFIR_WO_735028_TV05326_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 2484
Downstream MH
05 2483
Dir. of Survey
Downstream
Length Surveyed
490.1 ft.
Total Length
490.1 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
2
O&M Quick
2C11
O&M Rating
43
Overall Index
2
Overall Quick
—
Overall Rating
45
Pipe schematic from manhole 05 2484 to 05 2483
MH: 05 2484MH: 05 2483downstream0 ft. MGO - General Observation - HEAVY STEAM0 ft. MGO - General Observation - CONNECTION AT MH 7 O'CLOCK0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 248456.6 ft. FC - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES242.3 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start321.4 ft. RFJ - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YES345 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Finish490.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK490.1 ft. AMH - Downstream Manhole, Survey Ends - 05 2483

Observation photos (3)

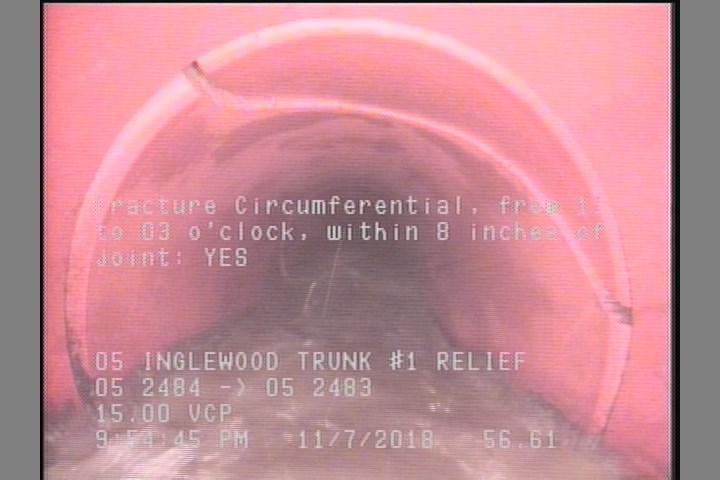

  • Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES

    56.6 ft. - Fracture Circumferential, from 11 to 03 o'clock, within 8 inches of joint: YES

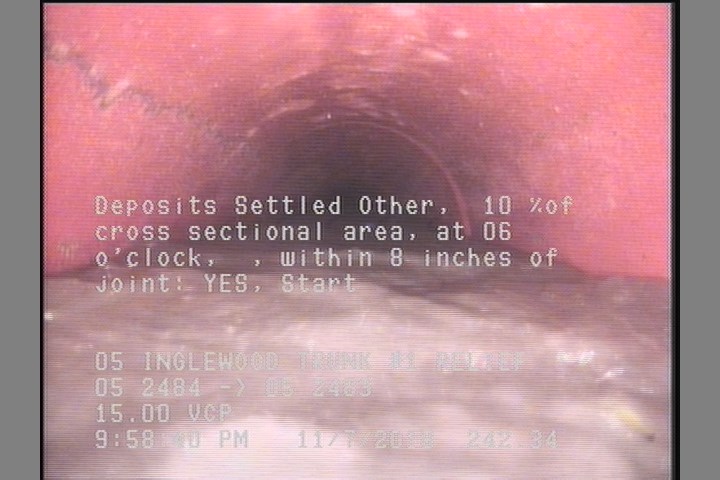

  • Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

    242.3 ft. - Deposits Settled Other, 10 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

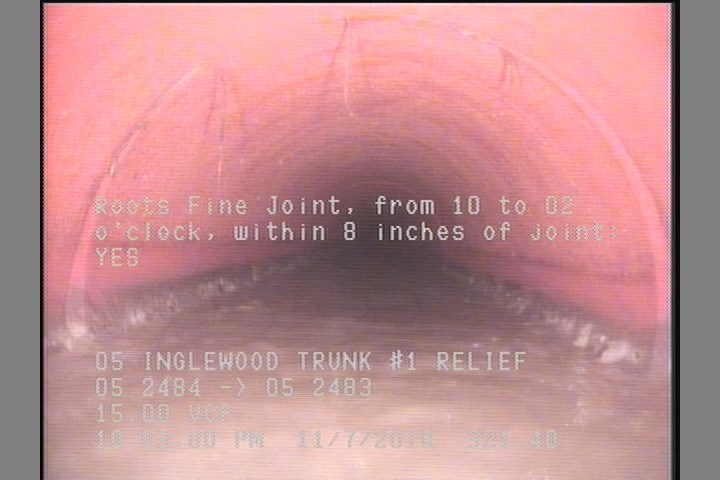

  • Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YES

    321.4 ft. - Roots Fine Joint, from 10 to 02 o'clock, within 8 inches of joint: YES

All inspections of P20879Work order 735028

Observations (11)

DistanceCodeObservation
345DSZ—
0MGOHEAVY STEAM
242.3DSZ—
321.4RFJ—
490.1MGOCONNECTION AT MH 3 O'CLOCK
0MGOCONNECTION AT MH 7 O'CLOCK
56.6FC—
0MWM—
0MWL—
490.1AMH05 2483
0AMH05 2484

Properties (5)

additional_info
SC365241
custom_field_two
3
customer
LACSD
datetime
2018-11-07T21:50:49-08:00
year_laid
35144
