Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 8, 2018, 06:35 AM

  • 05 0524_05 2489 _07112018_223727.mp4

Date
11/07/2018
W/O
735028
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00462
PipeID
P20885
Time
10:35 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6213
Sewer Name
05 INGLEWOOD TRUNK #1 RELIEF
City
INGLEWOOD
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
05
Purpose
Routine Assessment
Project
RFIR_WO_735028_TV05326_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 0524
Downstream MH
05 2489
Dir. of Survey
Downstream
Length Surveyed
377.7 ft.
Total Length
377.7 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 05 0524 to 05 2489
MH: 05 0524MH: 05 2489downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - HEAVY STEAM0 ft. AMH - Upstream Manhole, Survey Begins - 05 052425.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"67.2 ft. CL - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES316.6 ft. FC - Fracture Circumferential, from 06 to 09 o'clock, within 8 inches of joint: YES377.7 ft. AMH - Downstream Manhole, Survey Ends - 05 2489

Observation photos (2)

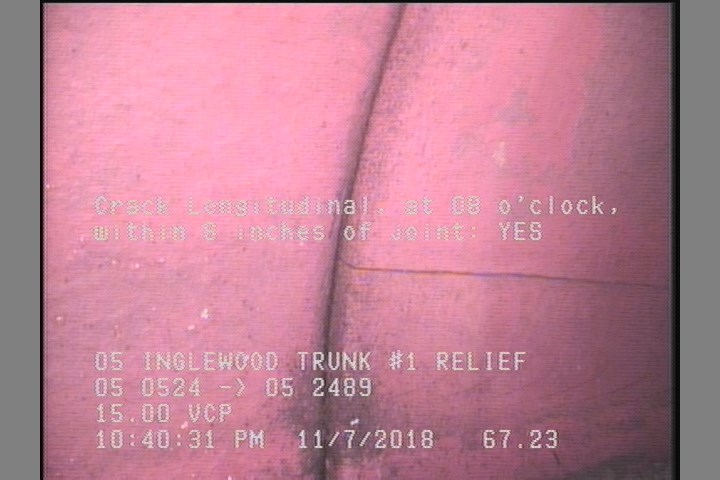

  • Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

    67.2 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

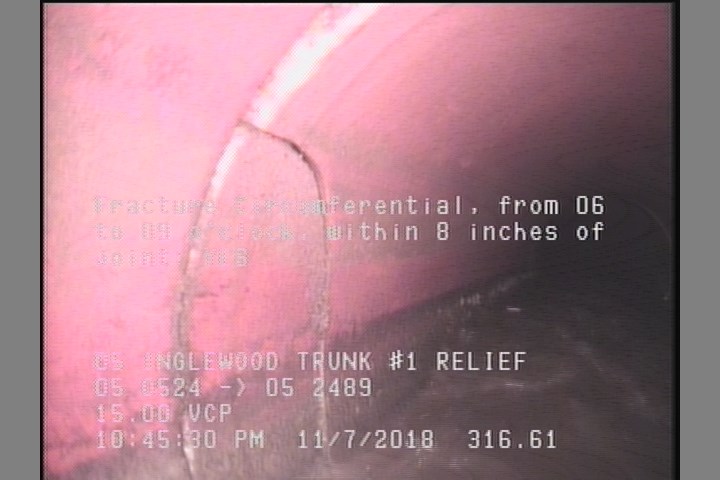

  • Fracture Circumferential, from 06 to 09 o'clock, within 8 inches of joint: YES

    316.6 ft. - Fracture Circumferential, from 06 to 09 o'clock, within 8 inches of joint: YES

All inspections of P20885Work order 735028

Observations (8)

DistanceCodeObservation
316.6FC—
25.3TF—
0MWM—
0MWL—
67.2CL—
0MGOHEAVY STEAM
377.7AMH05 2489
0AMH05 0524

Properties (4)

additional_info
SC365241
custom_field_two
3
customer
LACSD
datetime
2018-11-07T22:35:39-08:00
