Wastewater/Activity/PacpInspection/1.0Nov 27, 2018, 09:36 AM
C 0572_C 0552_27112018_013703.mp4
- Date
- 11/27/2018
- W/O
- 735004
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00362
- PipeID
- P04741
- Time
- 1:36 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6229
- Sewer Name
- C JOINT OUTFALL C - UNIT 4D
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735004_TV03084_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 6 in.
- Width
- 6 in.
- Upstream MH
- C 0572
- Downstream MH
- C 0552
- Dir. of Survey
- Downstream
- Length Surveyed
- 35.5 ft.
- Total Length
- 35.5 ft.
- Structural Index
- 4
- Structural Quick
- 4600
- Structural Rating
- 24
- O&M Index
- 2
- O&M Quick
- 2600
- O&M Rating
- 12
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 36
Observation photos (2)

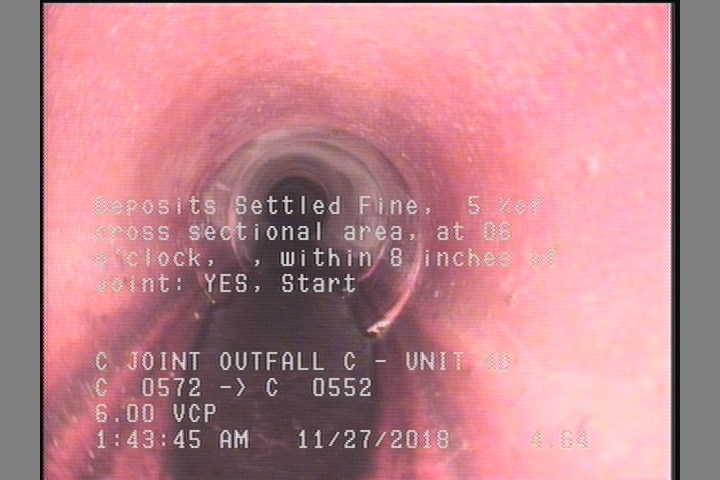

4.6 ft. - Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start

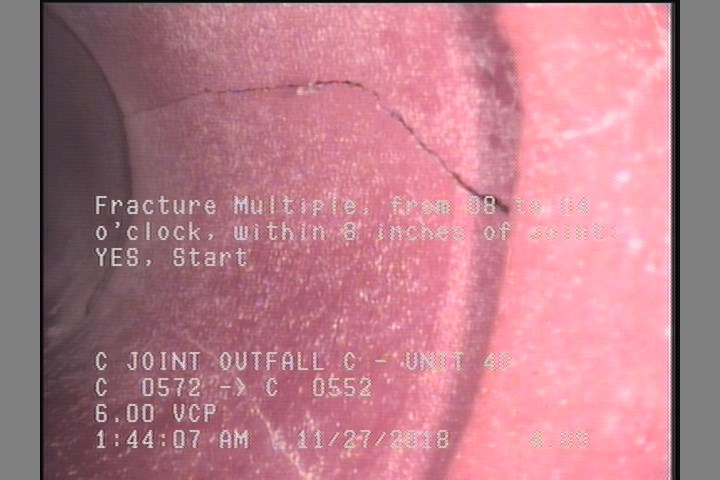

4.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 35.5 | DSF | — |
| 4.9 | FM | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 4.6 | DSF | — |
| 0 | MWL | — |
| 35.5 | AMH | C 0552 |
| 0 | AMH | C 0572 |
| 35.5 | FM | — |
| 0 | MGO | CONNECTION AT MH 6 O'CLOCK |
| 11.1 | TF | — |
| 0 | MWM | — |
Properties (4)
- additional_info
- SC365457
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-27T01:36:47-08:00
