Wastewater/Activity/PacpInspection/1.0Nov 27, 2018, 08:31 AM
A 0843_C 0569_27112018_003116.mp4
- Date
- 11/27/2018
- W/O
- 735004
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00362
- PipeID
- P05252
- Time
- 12:31 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6229
- Sewer Name
- C JOINT OUTFALL C - UNIT 4D
- City
- LONG BEACH
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 08
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735004_TV03084_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- A 0843
- Downstream MH
- C 0569
- Dir. of Survey
- Downstream
- Length Surveyed
- 330.4 ft.
- Total Length
- 330.4 ft.
- Structural Index
- 3
- Structural Quick
- 3E22
- Structural Rating
- 88
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 88
Observation photos (3)

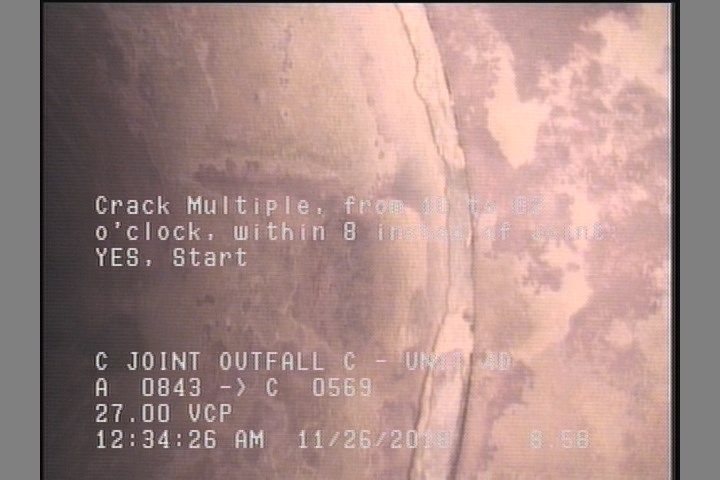

8.6 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start

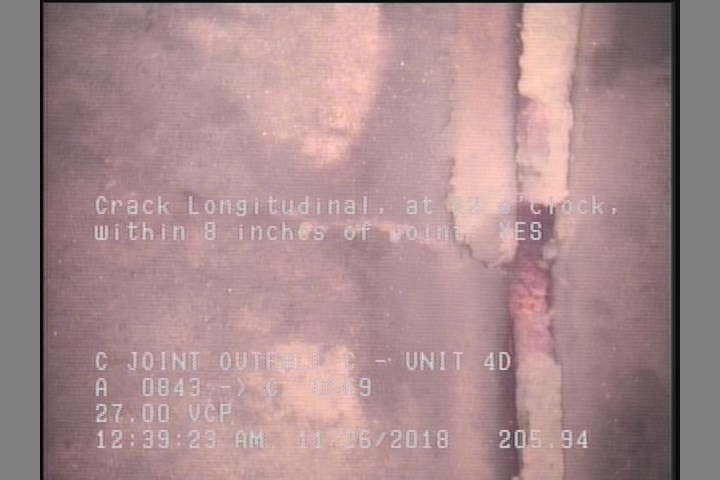

205.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

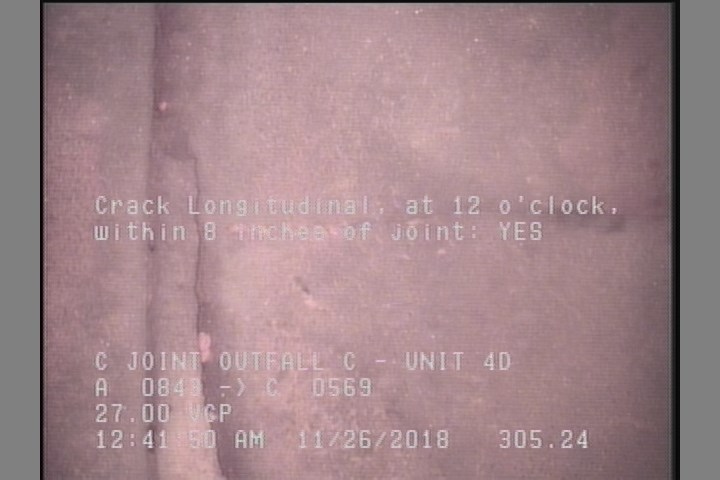

305.2 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | A 0843 |
| 148.7 | CM | — |
| 305.2 | CL | — |
| 0 | MWM | — |
| 205.9 | CL | — |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 330.4 | AMH | C 0569 |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 8.6 | CM | — |
Properties (4)
- additional_info
- SC365457
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-11-27T00:31:02-08:00
