Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 29, 2018, 09:53 AM

  • 01 0779_G 0154_29112018_015503.mp4

Date
11/29/2018
W/O
735001
Weather
Heavy Rain
Operator/Surveyor
B.FUGATE
Sewer ID
Z00892
PipeID
P01478
Time
1:53 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6238
Sewer Name
01 BULLIS ROAD TRUNK
City
COMPTON
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
17
Purpose
Routine Assessment
Project
RFIR_WO_735001_TV01203_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0779
Downstream MH
G 0154
Dir. of Survey
Downstream
Length Surveyed
187.1 ft.
Total Length
187.1 ft.
Structural Index
4
Structural Quick
4F00
Structural Rating
148
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
4
Overall Quick
—
Overall Rating
148
Pipe schematic from manhole 01 0779 to G 0154
MH: 01 0779MH: G 0154downstream0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 07793.6 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start16.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"19.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"21.6 ft. TB - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"64.6 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"67.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"98.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"119.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"145.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"151 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"167 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"187.1 ft. FM - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish187.1 ft. AOC - Drop Connection, Survey Ends - G 0154

Observation photos (2)

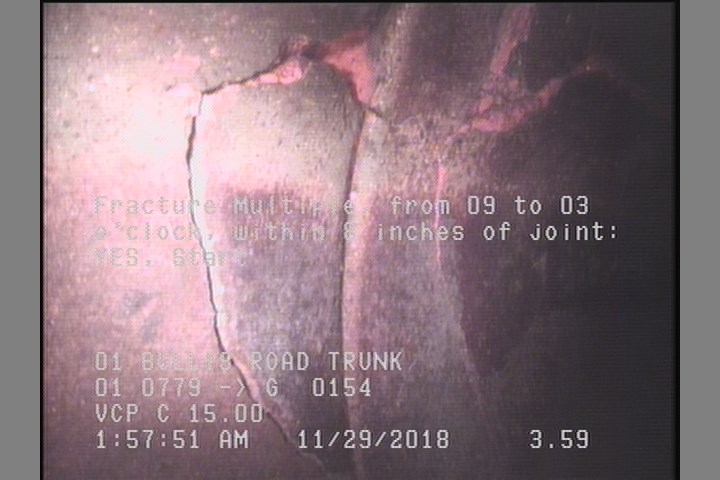

  • Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    3.6 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

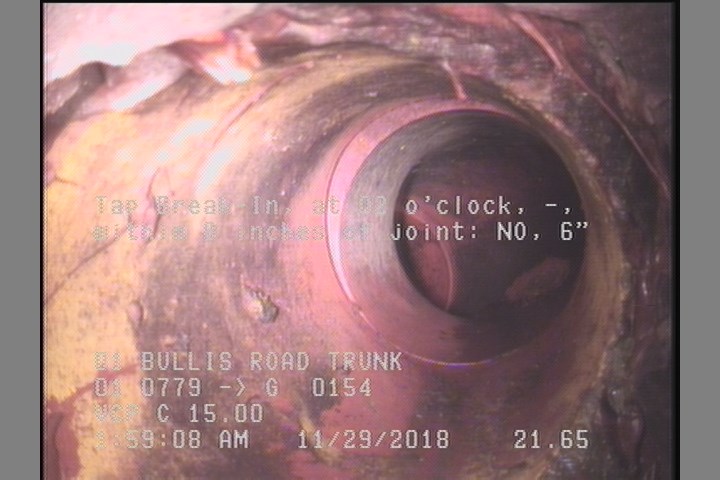

  • Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

    21.6 ft. - Tap Break-In, at 02 o'clock, -, within 8 inches of joint: NO, 6"

All inspections of P01478Work order 735001

Observations (16)

DistanceCodeObservation
64.6TFC—
3.6FM—
167TFC—
151TF—
0MWM—
145.7TFC—
19.4TFC—
119.2TFC—
187.1FM—
0MWL—
16.4TFC—
187.1AOCG 0154
67.7TFC—
0AMH01 0779
21.6TB—
98.2TF—

Properties (4)

additional_info
SC365466
custom_field_two
1
customer
LACSD
datetime
2018-11-29T01:53:46-08:00
