Wastewater/Activity/PacpInspection/1.0Nov 14, 2018, 08:10 AM
02 1362_02 1361 _14112018_001147.mp4
- Date
- 11/14/2018
- W/O
- 735000
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00277
- PipeID
- P03885
- Time
- 12:10 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6220
- Sewer Name
- 02 JANE STREET BRANCH TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 11A
- Purpose
- Routine Assessment
- Project
- RFIR_WO_735000_TV02342_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 02 1361
- Downstream MH
- 02 1362
- Dir. of Survey
- Upstream
- Length Surveyed
- 270.3 ft.
- Total Length
- 270.3 ft.
- Structural Index
- 3
- Structural Quick
- 3J00
- Structural Rating
- 159
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 161
Observation photos (2)

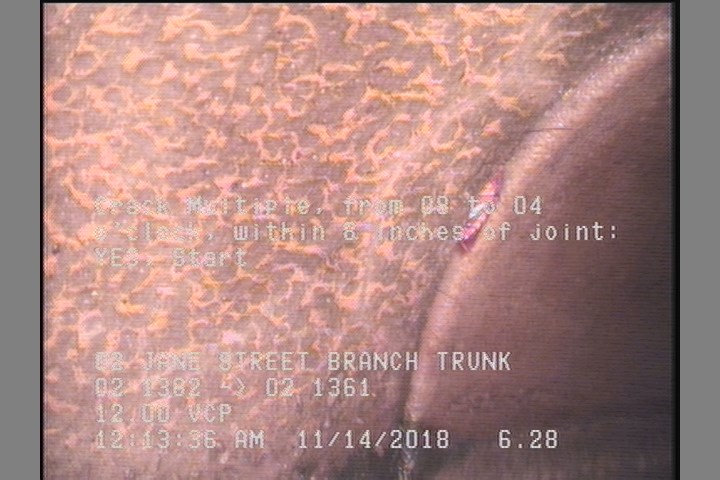

6.3 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

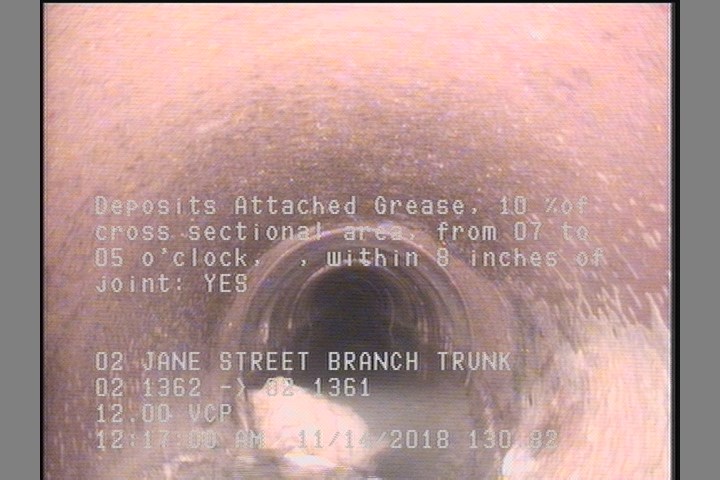

130.8 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 130.8 | DAGS | — |
| 81.3 | TF | — |
| 268.8 | CM | — |
| 159.7 | TF | — |
| 0 | MWM | — |
| 135.3 | TF | — |
| 264.4 | TF | — |
| 39 | TF | — |
| 222.4 | TF | — |
| 1.9 | TF | — |
| 0 | MWL | — |
| 270.3 | AMH | 02 1362 |
| 6.3 | CM | — |
| 0 | AMH | 02 1361 |
Properties (4)
- additional_info
- SC365248
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-11-14T00:10:50-08:00
