Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 28, 2018, 07:35 AM

  • 18 0665_18 0664 _27112018_233504.mp4

Date
11/27/2018
W/O
734990
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00696
PipeID
P14514
Time
11:35 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6232
Sewer Name
18 PHOEBE AVENUE TRUNK
City
LA MIRADA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
36
Purpose
Routine Assessment
Project
RFIR_WO_734990_TV18081_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
18 0665
Downstream MH
18 0664
Dir. of Survey
Downstream
Length Surveyed
229.9 ft.
Total Length
229.9 ft.
Structural Index
3
Structural Quick
3F26
Structural Rating
114
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
114
Pipe schematic from manhole 18 0665 to 18 0664
MH: 18 0665MH: 18 0664downstream0 ft. AMH - Upstream Manhole, Survey Begins - 18 06650 ft. MGO - General Observation - CONNECTION AT MH 6 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area11.2 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start36.6 ft. FL - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Finish56.3 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start86.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start86.7 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Finish129 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"134 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"214.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"219.8 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"229.9 ft. AMH - Downstream Manhole, Survey Ends - 18 0664229.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (3)

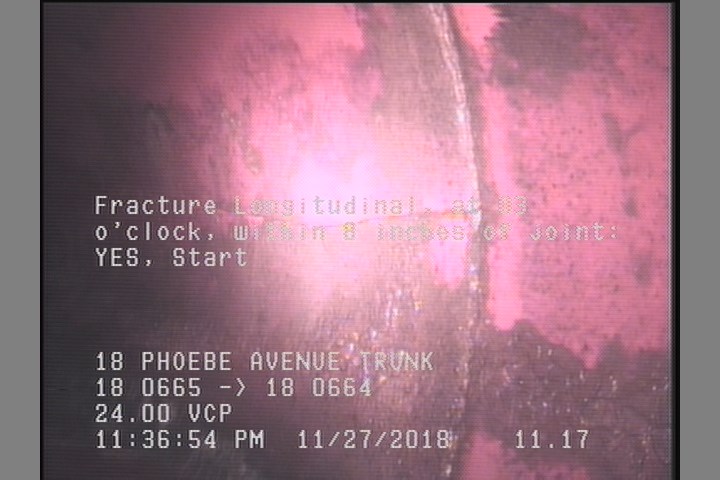

  • Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start

    11.2 ft. - Fracture Longitudinal, at 03 o'clock, within 8 inches of joint: YES, Start

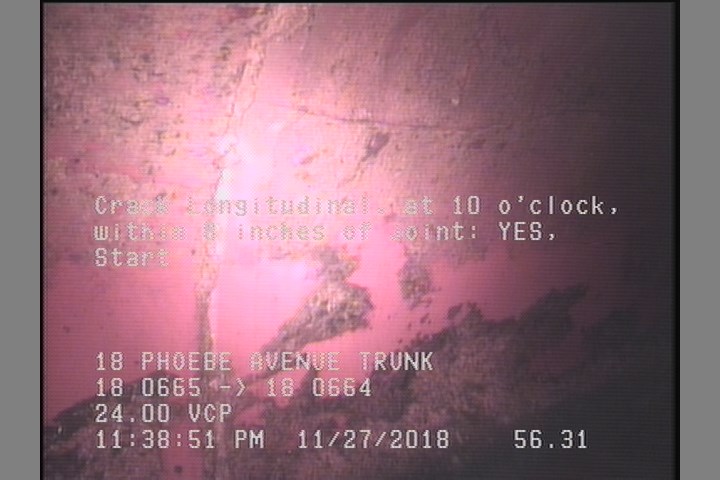

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start

    56.3 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES, Start

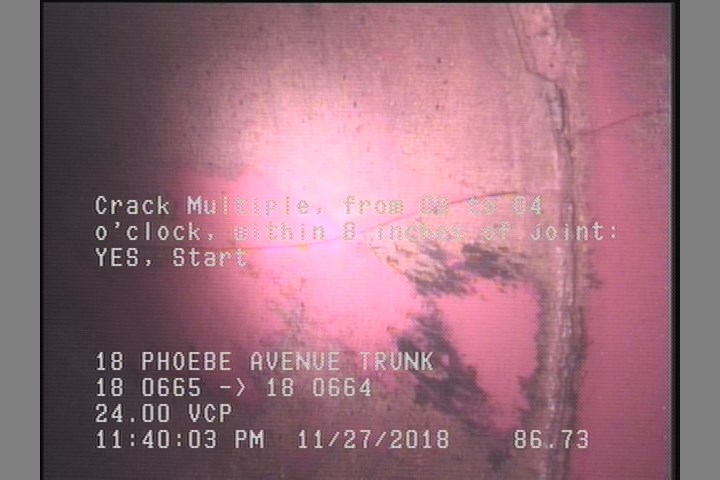

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    86.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14514Work order 734990

Observations (15)

DistanceCodeObservation
229.9AMH18 0664
0AMH18 0665
56.3CL—
0MGOCONNECTION AT MH 6 O'CLOCK
36.6FL—
0MWM—
129TFC—
86.7CM—
134TF—
219.8TFC—
214.9TFC—
86.7CL—
0MWL—
229.9CM—
11.2FL—

Properties (4)

additional_info
SC365460
custom_field_two
3
customer
LACSD
datetime
2018-11-27T23:35:00-08:00
