Wastewater/Activity/PacpInspection/1.0Nov 15, 2018, 07:45 AM
18 0671_18 0670 _14112018_234643.mp4
- Date
- 11/14/2018
- W/O
- 734990
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00696
- PipeID
- P14520
- Time
- 11:45 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K6224
- Sewer Name
- 18 PHOEBE AVENUE TRUNK
- City
- LA MIRADA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- RFIR_WO_734990_TV18081_NOV2018
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 18 0670
- Downstream MH
- 18 0671
- Dir. of Survey
- Upstream
- Length Surveyed
- 164.1 ft.
- Total Length
- 164.1 ft.
- Structural Index
- 3
- Structural Quick
- 453D
- Structural Rating
- 103
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 103
Observation photos (3)

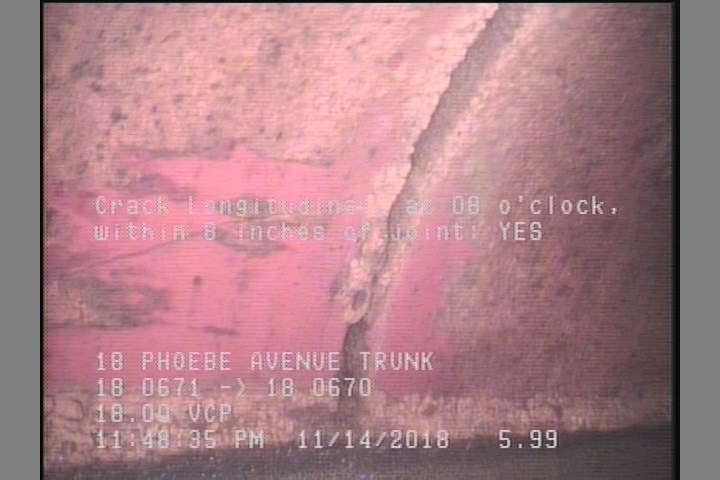

6 ft. - Crack Longitudinal, at 08 o'clock, within 8 inches of joint: YES

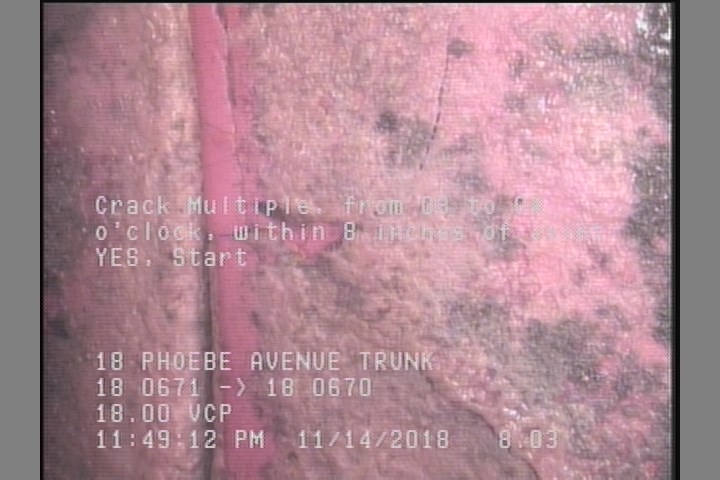

7.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

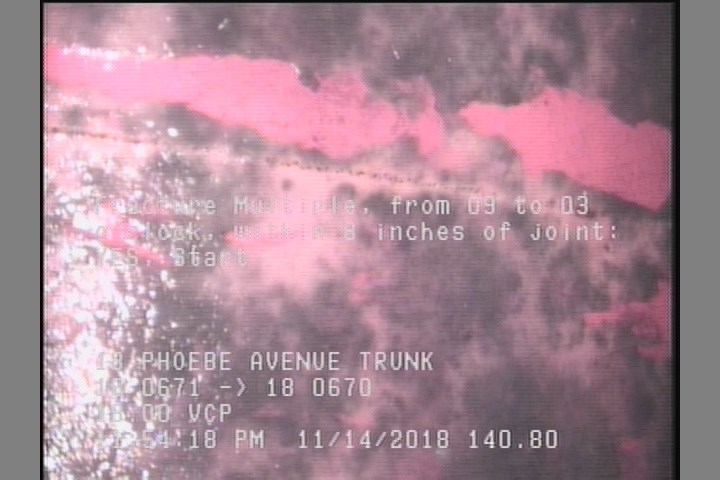

140.8 ft. - Fracture Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 140.8 | FM | — |
| 140.7 | CM | — |
| 0 | MWM | — |
| 6 | CL | — |
| 164.1 | FM | — |
| 0 | AMH | 18 0670 |
| 164.1 | AMH | 18 0671 |
| 7.9 | CM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC365452
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2018-11-14T23:45:59-08:00
