Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Nov 14, 2018, 06:52 AM

  • 02 0108_02 0107 _13112018_225314.mp4

Date
11/13/2018
W/O
734861
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00237
PipeID
P02275
Time
10:52 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K6219
Sewer Name
02 BELLFLOWER TRUNK
City
BELLFLOWER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
38
Purpose
Routine Assessment
Project
RFIR_WO_734861_TV02350_NOV2018
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
02 0108
Downstream MH
02 0107
Dir. of Survey
Downstream
Length Surveyed
365.4 ft.
Total Length
365.4 ft.
Structural Index
3
Structural Quick
493K
Structural Rating
216
O&M Index
3
O&M Quick
3F21
O&M Rating
104
Overall Index
3
Overall Quick
—
Overall Rating
320
Pipe schematic from manhole 02 0108 to 02 0107
MH: 02 0108MH: 02 0107downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK0 ft. AMH - Upstream Manhole, Survey Begins - 02 01084 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start19.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"41.5 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish58.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"63.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start85.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"109.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"119.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES120.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"171.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"174.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"195 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start226.6 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES234.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"237.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"248.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"275.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"320.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"347.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"350.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"365.4 ft. DSZ - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish365.4 ft. AMH - Downstream Manhole, Survey Ends - 02 0107365.4 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK365.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (4)

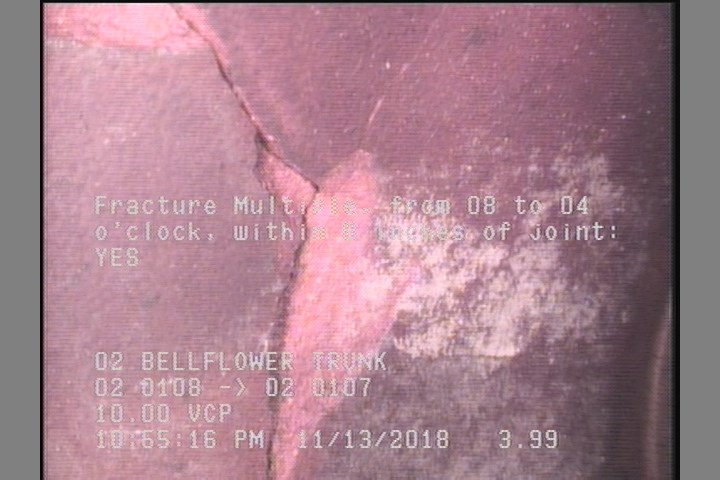

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

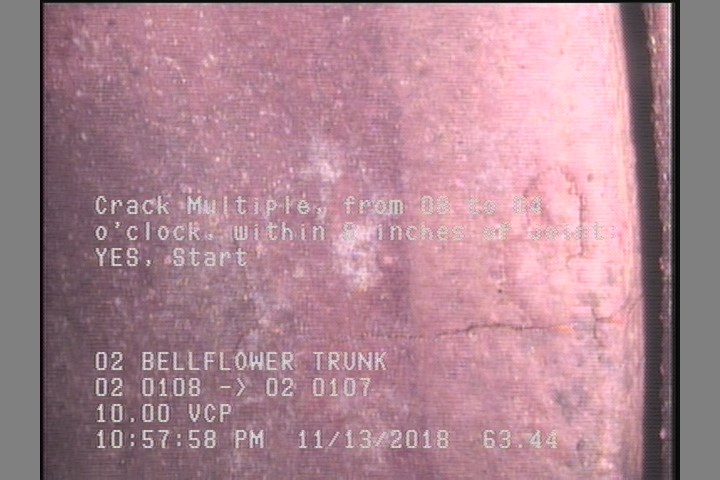

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    63.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

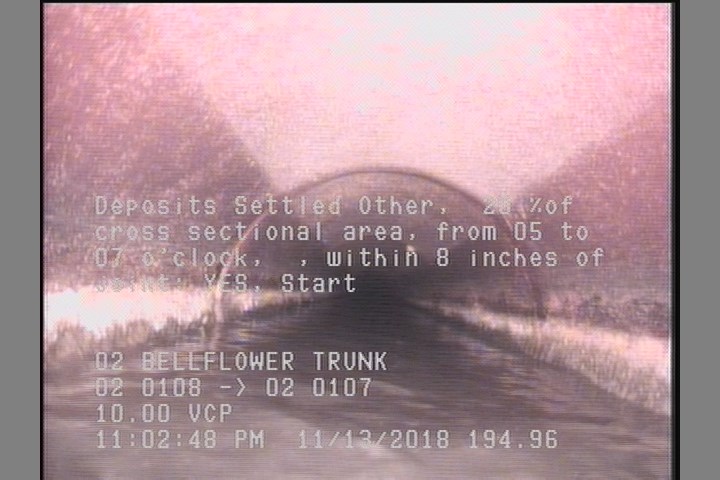

  • Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    195 ft. - Deposits Settled Other, 20 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

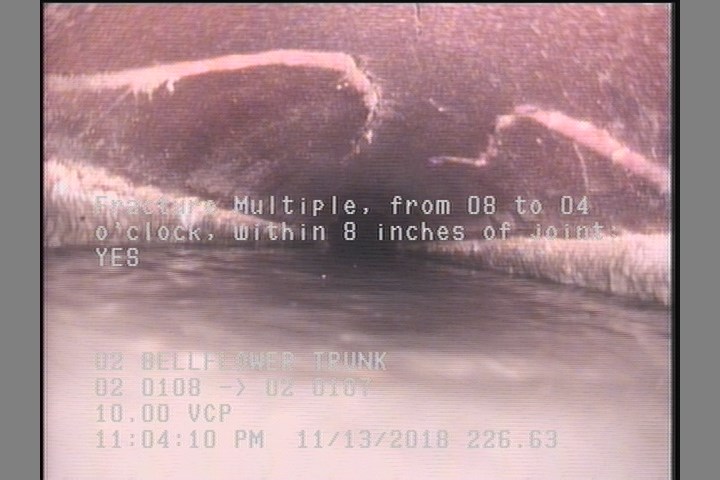

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    226.6 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

All inspections of P02275Work order 734861

Observations (28)

DistanceCodeObservation
365.4DSZ—
248.8TF—
171.9TFC—
0MWL—
347.4TFC—
85.5TF—
350.2TF—
0MWM—
174.5TF—
109.2TF—
275.7TF—
365.4AMH02 0107
120.9TF—
226.6FM—
195DSZ—
365.4MGOCONNECTION AT MH 9 O'CLOCK
119.7DAGS—
0MGOCONNECTION AT MH 3 O'CLOCK
320.7TF—
58.8TF—
41.5FM—
4FM—
237.3TF—
63.4CM—
234.2TF—
0AMH02 0108
19.5TF—
365.4CM—

Properties (4)

additional_info
SC365247
custom_field_two
2
customer
LACSD
datetime
2018-11-13T22:52:52-08:00
