Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Feb 18, 2017, 12:39 AM

  • 01 0391_01 0390_030817_111702.mp4

Date
02/17/2017
W/O
624309
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00208
PipeID
P00870
Time
4:39 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
4315
Sewer Name
01 HOLMES-WILLOWBROOK TRUNK
City
LOS ANGELES
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
16
Purpose
Routine Assessment
Project
WO_624309_TV01032_MAR2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
01 0391
Downstream MH
01 0390
Dir. of Survey
Downstream
Length Surveyed
204.4 ft.
Total Length
204.4 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2G11
O&M Rating
81
Overall Index
2
Overall Quick
—
Overall Rating
81
Pipe schematic from manhole 01 0391 to 01 0390
MH: 01 0391MH: 01 0390downstream0 ft. AMH - Upstream Manhole, Survey Begins - 01 03910 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area4.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start4.9 ft. MGO - General Observation - PIPE LINED42.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"42.2 ft. RFL - Roots Fine Lateral, from 02 to 04 o'clock67.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"93.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"116.8 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"142.2 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"167.7 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"193 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 4"204.4 ft. MSA - Survey Abandoned - DEBRIS204.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish

Observation photos (1)

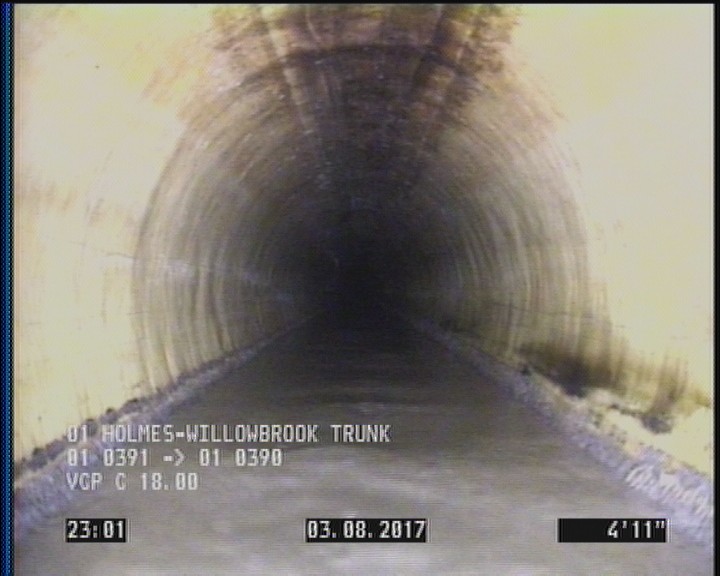

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

    4.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start

All inspections of P00870Work order 624309

Observations (15)

DistanceCodeObservation
42.2TF—
204.4MSADEBRIS
4.9DAGS—
0AMH01 0391
0MWM—
116.8TF—
67.7TF—
0MWL—
204.4DAGS—
167.7TF—
193TF—
93.7TF—
42.2RFL—
142.2TF—
4.9MGOPIPE LINED

Properties (6)

additional_info
SC318730
custom_field_two
5
customer
LACSD
datetime
2017-02-17T16:39:24-08:00
lining
CIPP
year_laid
35628
