Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 7, 2017, 09:11 AM

  • H 1367_H 1366 _01072017_012513.mpg

Date
01/07/2017
W/O
616852
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z01187
PipeID
P26164
Time
1:11 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4068
Sewer Name
H JOINT OUTFALL H - UNIT 5D RELIEF
City
SOUTH EL MONTE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_616852_DISTRICT15_JAN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
H 1367
Downstream MH
H 1366
Dir. of Survey
Downstream
Length Surveyed
450 ft.
Total Length
450 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2Q12
O&M Rating
178
Overall Index
2
Overall Quick
—
Overall Rating
178
Pipe schematic from manhole H 1367 to H 1366
MH: H 1367MH: H 1366downstream0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 13670 ft. MWL - Water Level, 15 %of cross sectional area0.1 ft. VC - Vermin Cockroach2.1 ft. MGO - General Observation - MAGNESIUM H.O. START2.9 ft. MGO - General Observation - MAGNESIUM H.O. START2.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start205.6 ft. MGP - General Photograph444.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish444.1 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH450 ft. AMH - Downstream Manhole, Survey Ends - H 1366450 ft. VC - Vermin Cockroach

Observation photos (2)

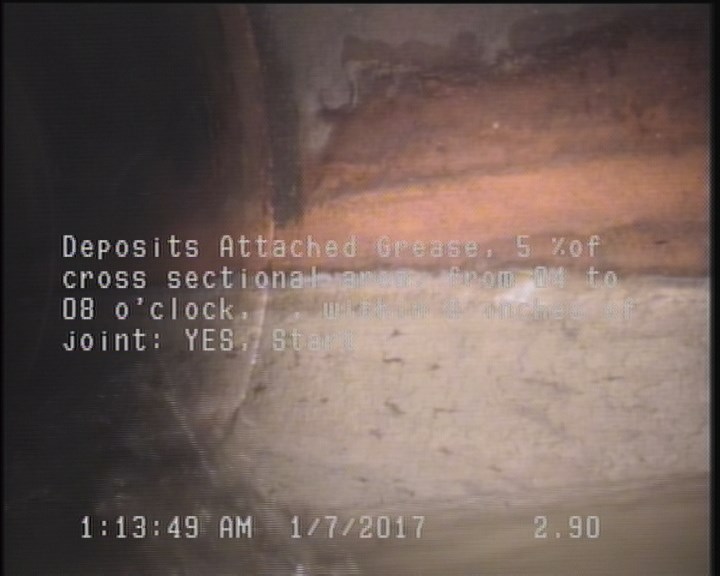

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

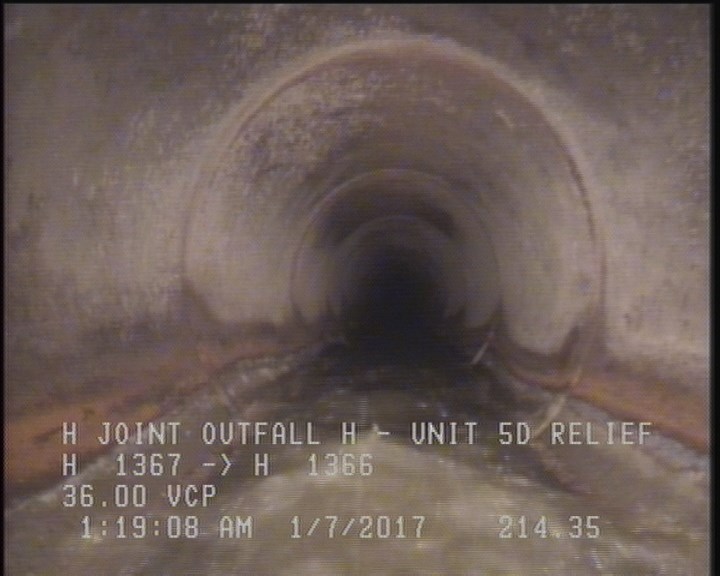

  • General Photograph

    205.6 ft. - General Photograph

All inspections of P26164Work order 616852

Observations (12)

DistanceCodeObservation
0MWM—
2.1MGOMAGNESIUM H.O. START
2.9MGOMAGNESIUM H.O. START
0AMHH 1367
0.1VC—
0MWL—
444.1DAGS—
2.9DAGS—
444.1MGOMAGNEZIUM H.O. FINISH
450AMHH 1366
450VC—
205.6MGP—

Properties (7)

additional_info
SC318609
custom_field_two
4
customer
LACSD
datetime
2017-01-07T01:11:41-08:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
40073
