Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 7, 2017, 06:32 AM

  • H 1359_H 1358 _01062017_225230.mpg

Date
01/06/2017
W/O
616852
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z01187
PipeID
P26156
Time
10:32 PM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4068
Sewer Name
H JOINT OUTFALL H - UNIT 5D RELIEF
City
SOUTH EL MONTE
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_616852_DISTRICT15_JAN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
H 1359
Downstream MH
H 1358
Dir. of Survey
Downstream
Length Surveyed
595.3 ft.
Total Length
595.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
3A2W
O&M Rating
271
Overall Index
2
Overall Quick
—
Overall Rating
271
Pipe schematic from manhole H 1359 to H 1358
MH: H 1359MH: H 1358downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 13590 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK ACTIVE0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. VC - Vermin Cockroach2.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start2.5 ft. MGO - General Observation - MAGNESIUM H.O. START193.3 ft. OBZ - Obstacles Other, 15 %of cross sectional area, from 04 to 08 o'clock, Start - DEBRIS NOT VISIBLE245.7 ft. OBZ - Obstacles Other, 15 %of cross sectional area, from 04 to 08 o'clock, Finish - DEBRIS NOT VISIBLE346.1 ft. MGP - General Photograph420.3 ft. OBZ - Obstacles Other, 15 %of cross sectional area, from 04 to 08 o'clock - DEBRIS NOT VISIBLE590.2 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH590.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish595.3 ft. AMH - Downstream Manhole, Survey Ends - H 1358595.3 ft. VC - Vermin Cockroach

Observation photos (4)

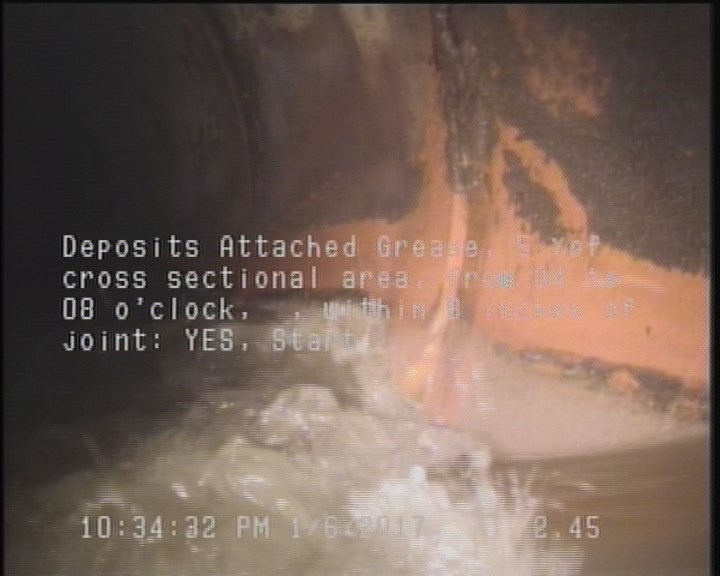

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

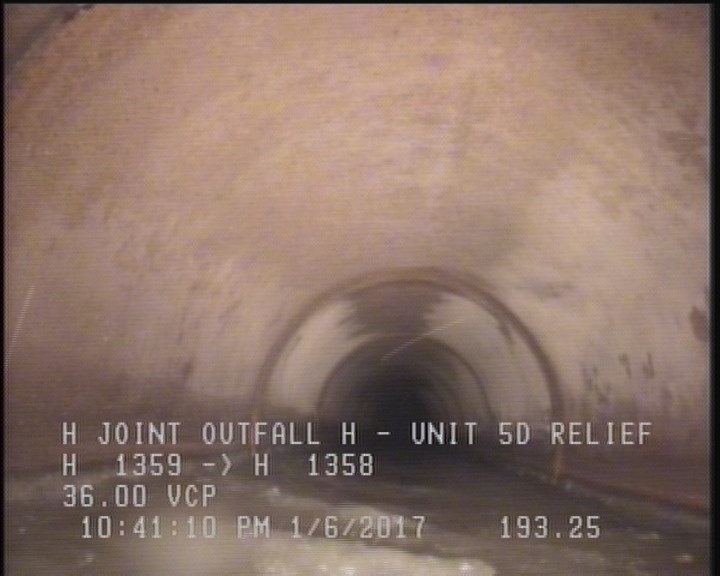

  • Obstacles Other, 15 %of cross sectional area, from 04 to 08 o'clock, Start - DEBRIS NOT VISIBLE

    193.3 ft. - Obstacles Other, 15 %of cross sectional area, from 04 to 08 o'clock, Start - DEBRIS NOT VISIBLE

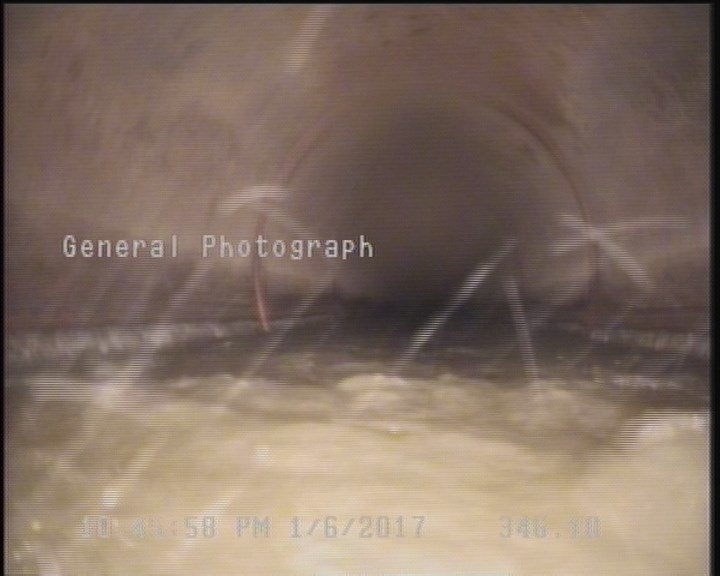

  • General Photograph

    346.1 ft. - General Photograph

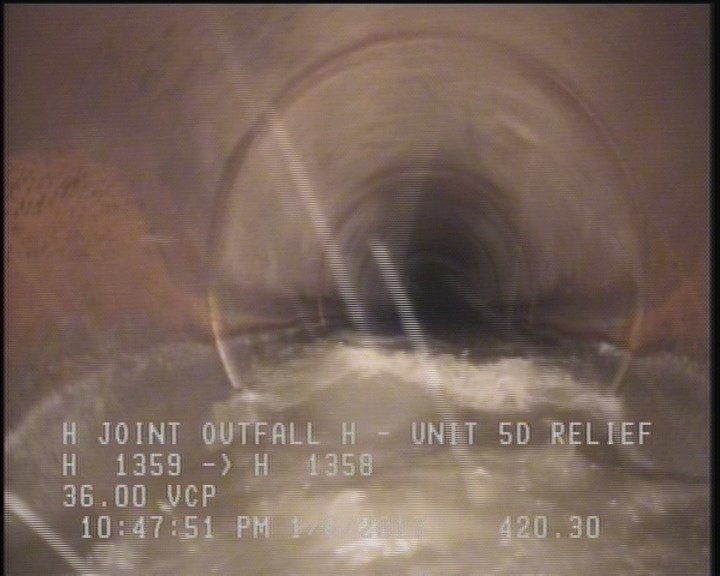

  • Obstacles Other, 15 %of cross sectional area, from 04 to 08 o'clock - DEBRIS NOT VISIBLE

    420.3 ft. - Obstacles Other, 15 %of cross sectional area, from 04 to 08 o'clock - DEBRIS NOT VISIBLE

All inspections of P26156Work order 616852

Observations (15)

DistanceCodeObservation
590.2MGOMAGNEZIUM H.O. FINISH
0MWL—
2.5DAGS—
0AMHH 1359
420.3OBZDEBRIS NOT VISIBLE
0MGOCONNECTION AT MH 3 O'CLOCK ACTIVE
0MWM—
595.3AMHH 1358
193.3OBZDEBRIS NOT VISIBLE
595.3VC—
346.1MGP—
2.5MGOMAGNESIUM H.O. START
590.2DAGS—
0VC—
245.7OBZDEBRIS NOT VISIBLE

Properties (7)

additional_info
SC318609
custom_field_two
4
customer
LACSD
datetime
2017-01-06T22:32:52-08:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
40073
