Wastewater/Activity/PacpInspection/1.0Jan 7, 2017, 08:10 AM
H 1357_H 1356 _01072017_003043.mpg
- Date
- 01/07/2017
- W/O
- 616852
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01187
- PipeID
- P26154
- Time
- 12:10 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4068
- Sewer Name
- H JOINT OUTFALL H - UNIT 5D RELIEF
- City
- SOUTH EL MONTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_616852_DISTRICT15_JAN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- H 1357
- Downstream MH
- H 1356
- Dir. of Survey
- Downstream
- Length Surveyed
- 401.3 ft.
- Total Length
- 401.3 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 3N2O
- O&M Rating
- 390
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 392
Observation photos (3)

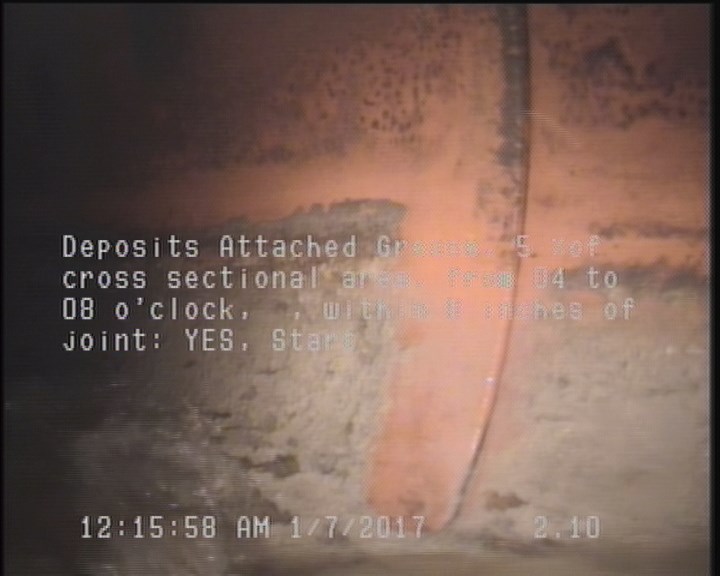

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
232.2 ft. - General Photograph

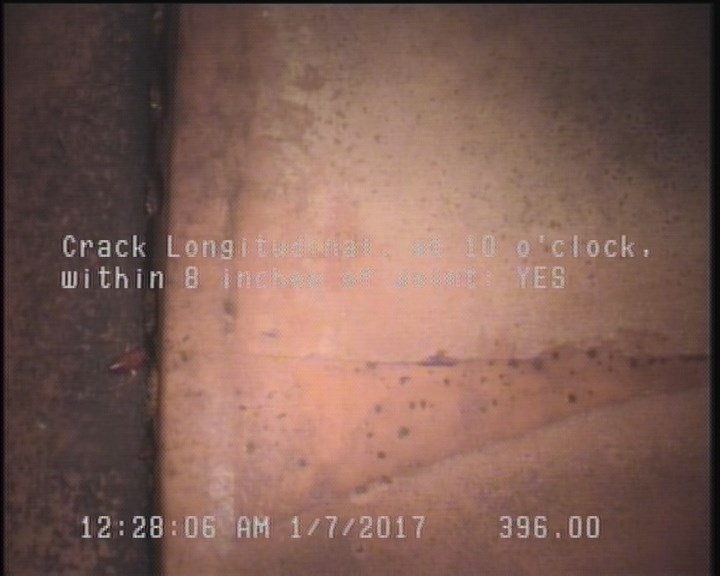

396 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES
Observations (16)
| Distance | Code | Observation |
|---|---|---|
| 0 | VC | — |
| 396 | CL | — |
| 401.3 | VC | — |
| 232.2 | MGP | — |
| 2.1 | MGO | MAGNESIUM H.O. START |
| 401.2 | MGO | MAGNEZIUM H.O. FINISH |
| 0 | AMH | H 1357 |
| 23 | OBZ | DEBRIS NOT VISIBLE |
| 401.2 | DAGS | — |
| 0 | MWL | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK MADE |
| 2.1 | DAGS | — |
| 401.3 | AMH | H 1356 |
| 401.2 | OBZ | DEBRIS NOT VISIBLE |
| 0 | MWM | — |
| 401.3 | MGO | CONNECTION AT MH 9 O'CLOCK ACTIVE |
Properties (7)
- additional_info
- SC318609
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-01-07T00:10:53-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 39994
