Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 6, 2017, 08:43 AM

  • H 1371_H 1370 _01062017_005955.mpg

Date
01/06/2017
W/O
616852
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z01187
PipeID
P26168
Time
12:43 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4067
Sewer Name
H JOINT OUTFALL H - UNIT 5D RELIEF
City
SOUTH EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
28
Purpose
Routine Assessment
Project
WO_616852_DISTRICT15_JAN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
36 in.
Width
36 in.
Upstream MH
H 1371
Downstream MH
H 1370
Dir. of Survey
Downstream
Length Surveyed
339.6 ft.
Total Length
339.7 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2O12
O&M Rating
158
Overall Index
2
Overall Quick
—
Overall Rating
158
Pipe schematic from manhole H 1371 to H 1370
MH: H 1371MH: H 1370downstream0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - H 13710 ft. MWL - Water Level, 10 %of cross sectional area2.2 ft. VC - Vermin Cockroach2.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start3.6 ft. MGO - General Observation - MAGNESIUM H.O. START134.8 ft. MGP - General Photograph278.1 ft. OBZ - Obstacles Other, 10 %of cross sectional area, from 04 to 08 o'clock, Start - DEBRIS NOT VISIBLE333.5 ft. OBZ - Obstacles Other, 10 %of cross sectional area, from 04 to 08 o'clock, Finish - DEBRIS NOT VISIBLE335.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish335.1 ft. MGO - General Observation - MAGNEZIUM H.O. FINISH339.7 ft. VC - Vermin Cockroach339.7 ft. AMH - Downstream Manhole, Survey Ends - H 1370

Observation photos (2)

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

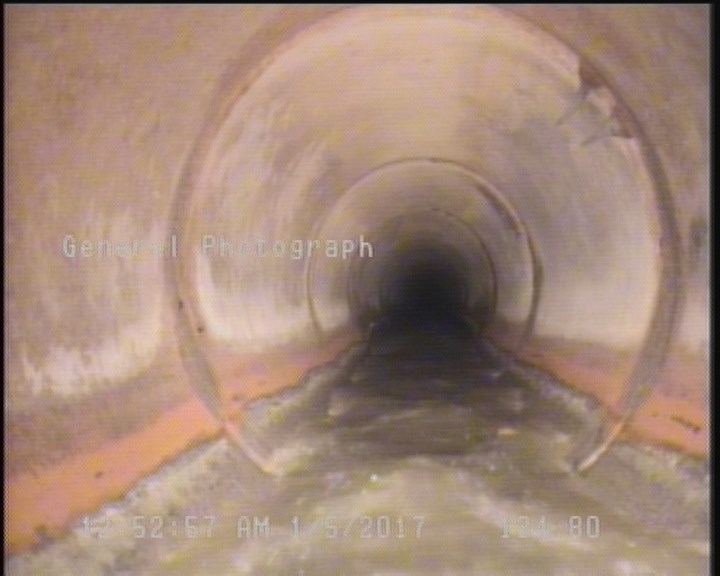

  • General Photograph

    134.8 ft. - General Photograph

All inspections of P26168Work order 616852

Observations (13)

DistanceCodeObservation
339.7VC—
339.7AMHH 1370
3.6MGOMAGNESIUM H.O. START
0MWM—
335.1DAGS—
2.2VC—
0AMHH 1371
278.1OBZDEBRIS NOT VISIBLE
0MWL—
335.1MGOMAGNEZIUM H.O. FINISH
134.8MGP—
333.5OBZDEBRIS NOT VISIBLE
2.2DAGS—

Properties (7)

additional_info
SC318608
custom_field_two
4
customer
LACSD
datetime
2017-01-06T00:43:57-08:00
documentation
PRO PIPE
is_lateral_inspection
false
year_laid
40073
