Wastewater/Activity/PacpInspection/1.0Sep 22, 2017, 05:48 AM
22 1246_22 1245 _09212017_225045.mp4
- Date
- 09/21/2017
- W/O
- 658224
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00806
- PipeID
- P16507
- Time
- 10:48 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4982
- Sewer Name
- 22 DISTRICT #22 MAIN RELIEF TRUNK
- City
- COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 26
- Purpose
- Routine Assessment
- Project
- WO_658224_TV22095_SEP2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 22 1246
- Downstream MH
- 22 1245
- Dir. of Survey
- Downstream
- Length Surveyed
- 446 ft.
- Total Length
- 446 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

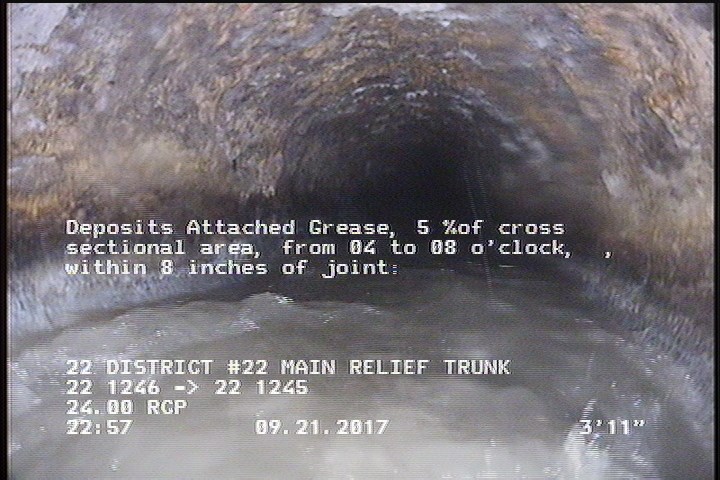

3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

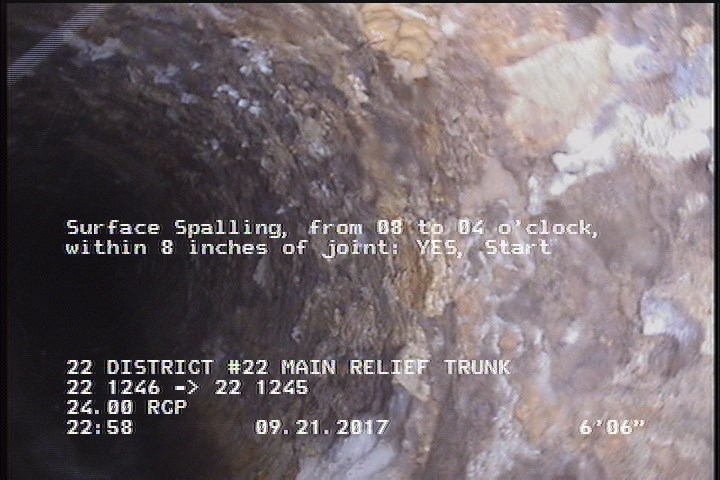

6.5 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

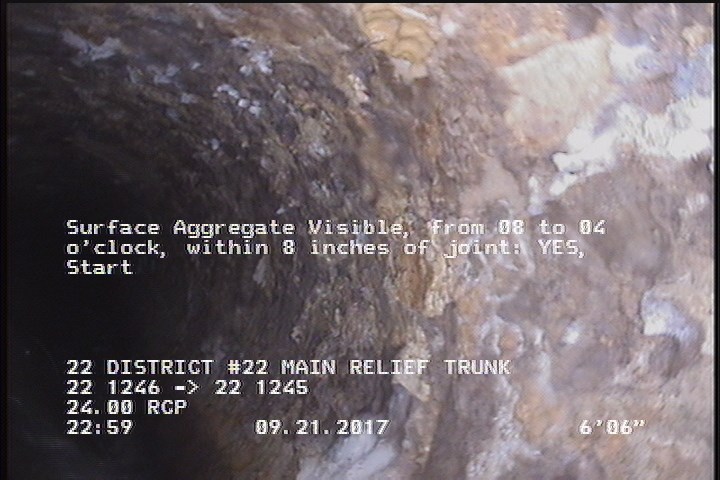

6.5 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 6.5 | SSS | — |
| 0 | MWL | — |
| 0 | MWM | — |
| 0 | AMH | 22 1246 |
| 3.9 | DAGS | — |
| 6.5 | SAV | — |
| 446 | AMH | 22 1245 |
| 397.8 | LLD | — |
| 446 | SSS | — |
| 446 | SAV | — |
| 446 | DAGS | — |
| 446 | LLD | — |
Properties (6)
- additional_info
- SC345974
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-21T22:48:29-07:00
- is_lateral_inspection
- false
- year_laid
- 29888
