Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 08:10 AM
29 0284_29 0283A _21092017_012534.mp4
- Date
- 09/21/2017
- W/O
- 658119
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00375
- PipeID
- P24740
- Time
- 1:10 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4886
- Sewer Name
- 29 ORANGE AVENUE SEWER
- City
- SIGNAL HILL
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- WO_658119_TV29040_SEP2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 8 in.
- Width
- 8 in.
- Upstream MH
- 29 0283A
- Downstream MH
- 29 0284
- Dir. of Survey
- Upstream
- Length Surveyed
- 35.5 ft.
- Total Length
- 35.5 ft.
- Structural Index
- 3
- Structural Quick
- 3300
- Structural Rating
- 9
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (3)

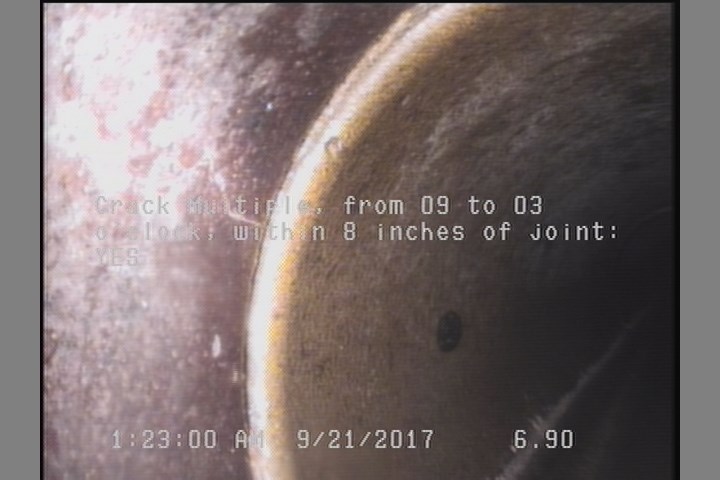

6.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

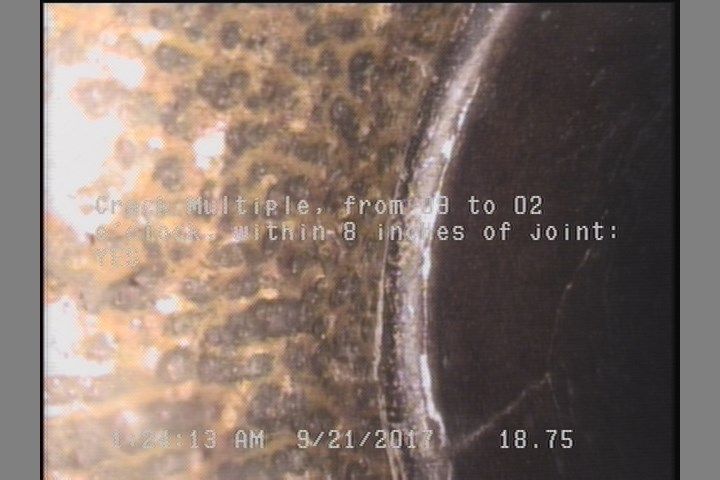

18.8 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

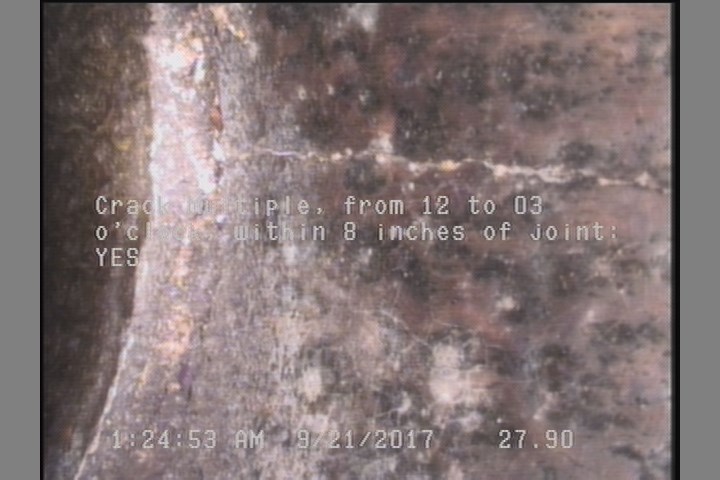

27.9 ft. - Crack Multiple, from 12 to 03 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 27.9 | CM | — |
| 0 | AMH | 29 0283A |
| 18.8 | CM | — |
| 6.9 | CM | — |
| 0.6 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 17.9 | TF | — |
| 35.5 | AMH | 29 0284 |
| 0 | MWL | — |
Properties (7)
- additional_info
- SC345946
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-09-21T01:10:49-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 39295
