Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 22, 2017, 04:50 AM

  • 29 0288_29 0817 _21092017_220222.mp4

Date
09/21/2017
W/O
658119
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00375
PipeID
P25787
Time
9:50 PM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4887
Sewer Name
29 ORANGE AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
01
Purpose
Routine Assessment
Project
WO_658119_TV29040_SEP2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0817
Downstream MH
29 0288
Dir. of Survey
Upstream
Length Surveyed
152.4 ft.
Total Length
152.4 ft.
Structural Index
3
Structural Quick
3121
Structural Rating
5
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 29 0817 to 29 0288
MH: 29 0817MH: 29 0288upstream0 ft. AMH - Upstream Manhole, Survey Ends - 29 028844.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"57.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"100.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"106.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES123.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"148.5 ft. CM - Crack Multiple, from 07 to 08 o'clock, within 8 inches of joint: YES152.4 ft. MWM - Water Mark, 10 %of cross sectional area152.4 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK152.4 ft. AMH - Downstream Manhole, Survey Begins - 29 0817152.4 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (2)

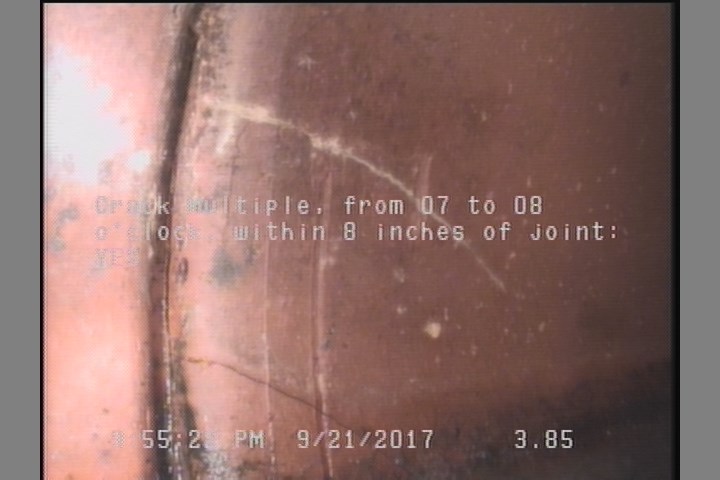

  • Crack Multiple, from 07 to 08 o'clock, within 8 inches of joint: YES

    3.9 ft. - Crack Multiple, from 07 to 08 o'clock, within 8 inches of joint: YES

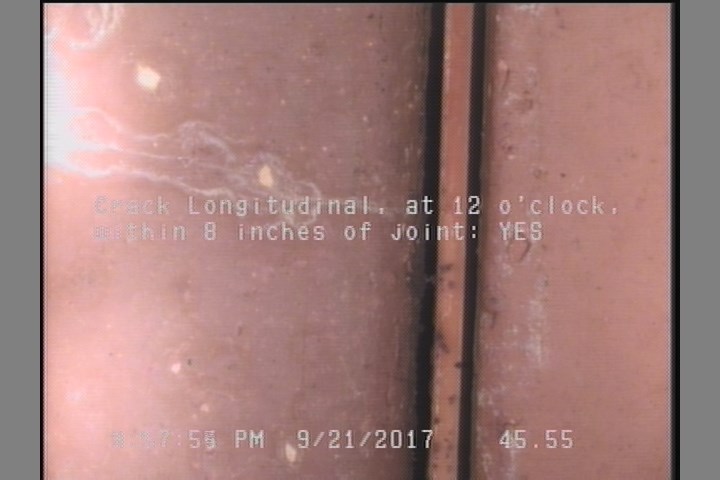

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    45.6 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

All inspections of P25787Work order 658119

Observations (11)

DistanceCodeObservation
107.9TF—
45.6CL—
3.9CM—
29.2TF—
95.2TF—
0MWM—
52.1TF—
0MGOCONNECTION AT MH 9 O'CLOCK
152.4AMH29 0288
0AMH29 0817
0MWL—

Properties (7)

additional_info
SC345947
custom_field_two
4
customer
LACSD
datetime
2017-09-21T21:50:20-07:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
39295
