Wastewater/Activity/PacpInspection/1.0Oct 3, 2017, 06:03 AM
B 0069B_B 0069A_02102017_230423.mp4
- Date
- 10/02/2017
- W/O
- U-508-7069
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00115
- PipeID
- P20285
- Time
- 11:03 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4899
- Sewer Name
- B JOINT OUTFALL B - UNIT 9C
- City
- COMPTON
- Loc. details
- Parking Lot
- Location Code
- G
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_657994_TV08108_SEP2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 90 in.
- Width
- 90 in.
- Upstream MH
- B 0069B
- Downstream MH
- B 0069A
- Dir. of Survey
- Downstream
- Length Surveyed
- 12.7 ft.
- Total Length
- 12.7 ft.
- Structural Index
- 4
- Structural Quick
- 5232
- Structural Rating
- 16
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 20
Observation photos (2)
2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

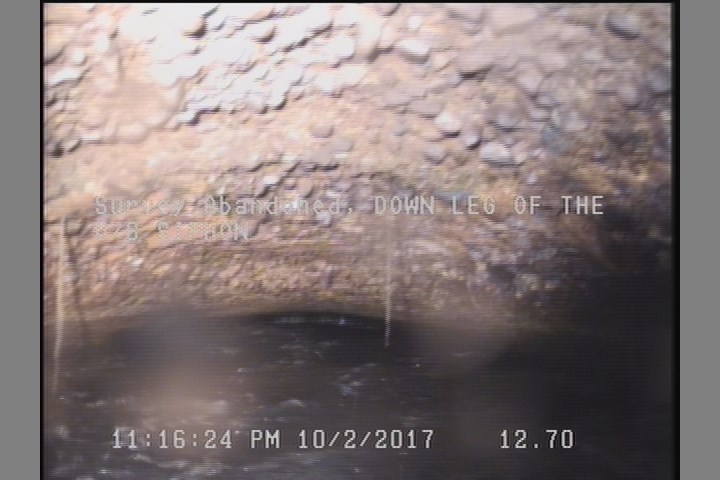

12.7 ft. - Survey Abandoned - DOWN LEG OF THE U/S SIPHON
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 12.7 | SRV | — |
| 12.7 | MSA | DOWN LEG OF THE U/S SIPHON |
| 0 | AMH | B 0069B |
| 12.7 | SAP | — |
| 0 | MWM | — |
| 2.1 | SAP | — |
| 2.1 | SRV | — |
| 0 | MWL | — |
Properties (7)
- additional_info
- SC346159
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-10-02T23:03:30-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 33875
