Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 25, 2017, 05:41 AM

  • 15 1165_15 1164 _20170525_000459.mp4

Date
05/24/2017
W/O
635526
Weather
Dry
Operator/Surveyor
JUAN B
Sewer ID
Z00635
PipeID
P25911
Time
10:41 PM
Certificate
U-715-07000770
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4531
Sewer Name
15 TYLER AVENUE RELIEF TRUNK
City
EL MONTE CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
17
Purpose
Routine Assessment
Project
WO_635526_TV15082_MAY2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Width
24 in.
Upstream MH
15 1165
Downstream MH
15 1164
Dir. of Survey
Downstream
Length Surveyed
275.1 ft.
Total Length
275.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2J00
O&M Rating
108
Overall Index
2
Overall Quick
—
Overall Rating
108
Pipe schematic from manhole 15 1165 to 15 1164
MH: 15 1165MH: 15 1164downstream0 ft. AMH - Upstream Manhole, Survey Begins - 15 11650 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start31 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: YES, 6"48.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"120.6 ft. TFA - Tap Factory Made Active, at 11 o'clock, -, within 8 inches of joint: YES, 6"185.4 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6"212.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 4"275.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish275.1 ft. AMH - Downstream Manhole, Survey Ends - 15 1164

Observation photos (1)

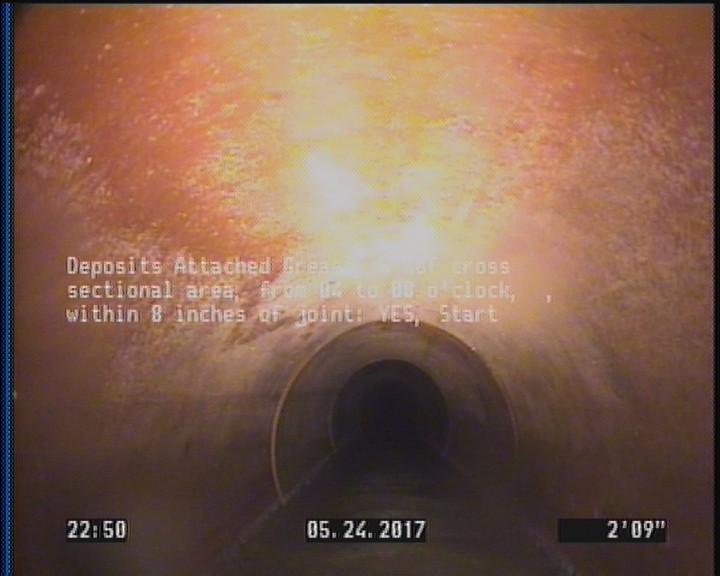

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2.7 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

All inspections of P25911Work order 635526

Observations (11)

DistanceCodeObservation
0AMH15 1165
212.8TF—
0MWM—
31TF—
2.7DAGS—
48.9TFA—
275.1DAGS—
0MWL—
185.4TF—
275.1AMH15 1164
120.6TFA—

Properties (7)

additional_info
SC340745
custom_field_two
4
customer
LACSD
datetime
2017-05-24T22:41:37-07:00
documentation
PROPIPE
is_lateral_inspection
false
year_laid
39519
