Wastewater/Activity/PacpInspection/1.0May 26, 2017, 05:59 AM
15 0947_15 0946 _20170526_001627.mp4
- Date
- 05/25/2017
- W/O
- 635526
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00635
- PipeID
- P12076
- Time
- 10:59 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4532
- Sewer Name
- 15 TYLER AVENUE RELIEF TRUNK
- City
- EL MONTE
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_635526_TV15082_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 15 0947
- Downstream MH
- 15 0946
- Dir. of Survey
- Downstream
- Length Surveyed
- 446.1 ft.
- Total Length
- 446.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2Q00
- O&M Rating
- 180
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 180
Observation photos (2)

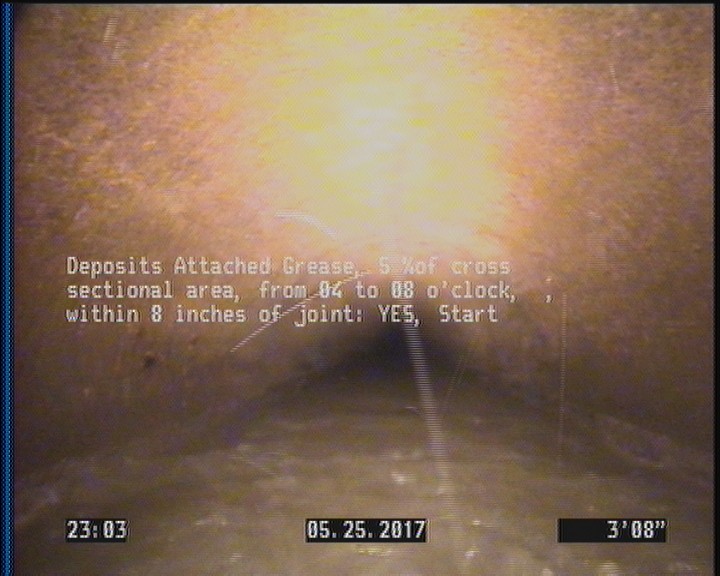

3.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
3.6 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 3.6 | DAGS | — |
| 446.1 | AMH | 15 0946 |
| 446.1 | DAE | — |
| 3.6 | DAE | — |
| 446.1 | MGO | CONNECTION AT 9 OC |
| 0 | AMH | 15 0947 |
| 0 | MWL | — |
| 446.1 | DAGS | — |
| 0 | MWM | — |
Properties (7)
- additional_info
- SC340746
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-25T22:59:22-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 30503
