Wastewater/Activity/PacpInspection/1.0Dec 12, 2018, 07:40 PM
21 1082_21 0857_12122018_121352.mp4
- Date
- 12/12/2018
- W/O
- 0744088
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00764
- PipeID
- P16204
- Time
- 11:40 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7875
- Sewer Name
- 21 EMERALD AVENUE TRUNK
- City
- SAN DIMAS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 02
- Purpose
- Maintenance Related
- Project
- 20181211DF_EMERALD_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 21 1082
- Downstream MH
- 21 0857
- Dir. of Survey
- Downstream
- Length Surveyed
- 167.8 ft.
- Total Length
- 167.8 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (4)

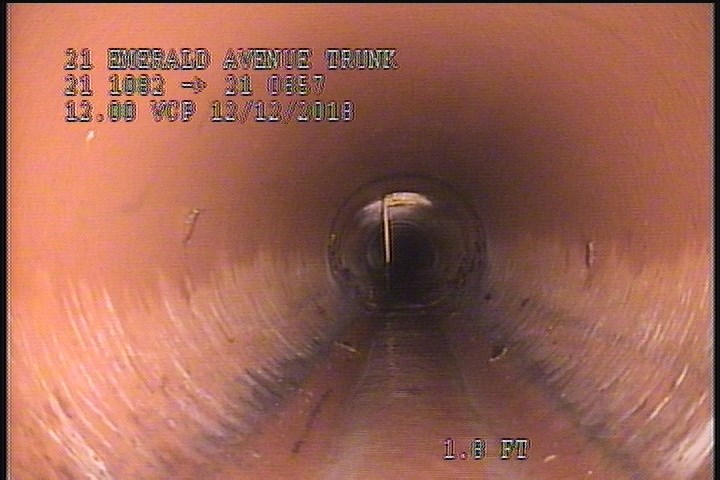

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

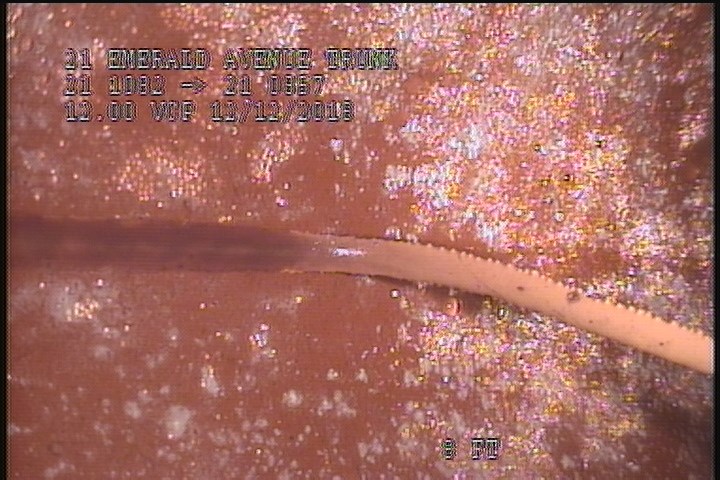

8 ft. - Roots Fine Joint, at 12 o'clock, within 8 inches of joint: YESR

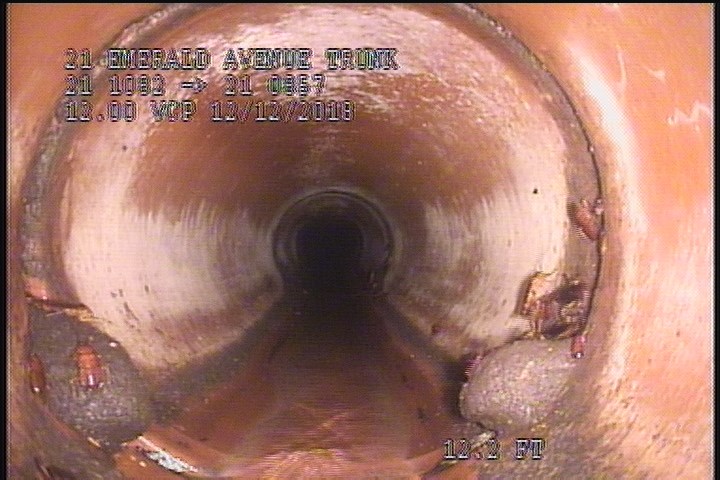

12.2 ft. - General Photograph

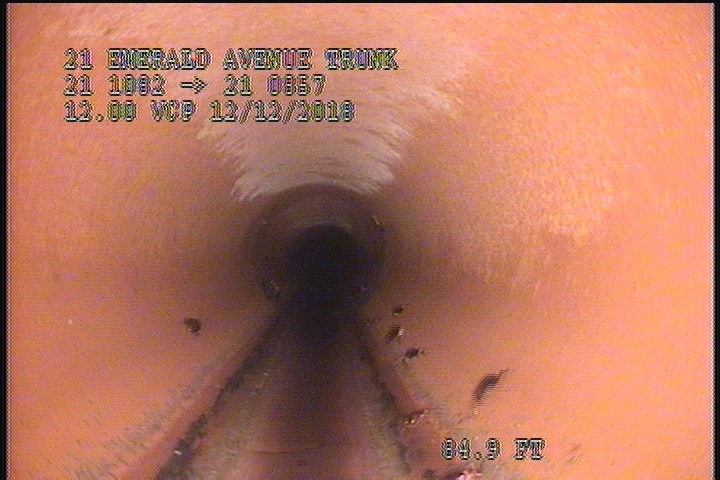

84.9 ft. - General Photograph
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 167.8 | AMH | 12:30 PM |
| 12.2 | MGP | — |
| 0 | MWL | — |
| 8 | RFJ | — |
| 167.8 | MGO | Conn. @ Mh, 5 O' Clock. Active |
| 0 | MGO | ROACHES @ MH |
| 165.3 | SSS | — |
| 84.9 | MGP | — |
| 0 | AMH | 12:12 PM |
| 167.7 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 102.9 | TB | — |
| 167.8 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 2 | SSS | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-12T11:40:36-08:00
