Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 12, 2018, 07:34 PM

  • 21 1082A _21 1082_12122018_115054.mp4

Date
12/12/2018
W/O
0744088
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00764
PipeID
P16205
Time
11:34 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7876
Sewer Name
21 EMERALD AVENUE TRUNK
City
SAN DIMAS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 21
Page No.
02
Purpose
Maintenance Related
Project
20181211DF_EMERALD_AVENUE_TRUNK
Material
Vitrified Clay Pipe
Shape
Circular
Height
10 in.
Upstream MH
21 1082A
Downstream MH
21 1082
Dir. of Survey
Downstream
Length Surveyed
217.6 ft.
Total Length
217.6 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 21 1082A to 21 1082
MH: 21 1082AMH: 21 1082downstream0 ft. AMH - Upstream Manhole, Survey Begins - 11:45 AM0 ft. MWM - Water Mark, 10 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active1.7 ft. MGO - General Observation - ROACHES @ MH2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10.6 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"12.1 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"123.3 ft. MGP - General Photograph129.3 ft. MGP - General Photograph190.1 ft. MGP - General Photograph203.2 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"214.6 ft. MGO - General Observation - Mag Coat xx% 9 to 3 o' Clock Throughout214.6 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish214.6 ft. MGO - General Observation - ROACHES @ MH217.6 ft. AMH - Downstream Manhole, Survey Ends - 12:12 PM

Observation photos (3)

  • General Photograph

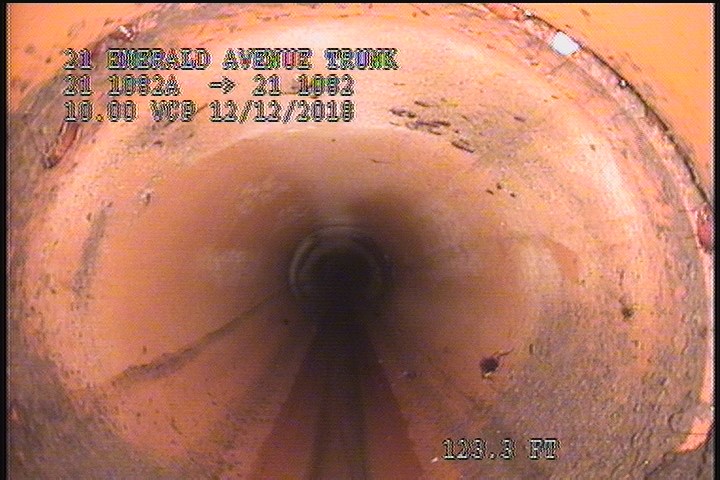

    123.3 ft. - General Photograph

  • General Photograph

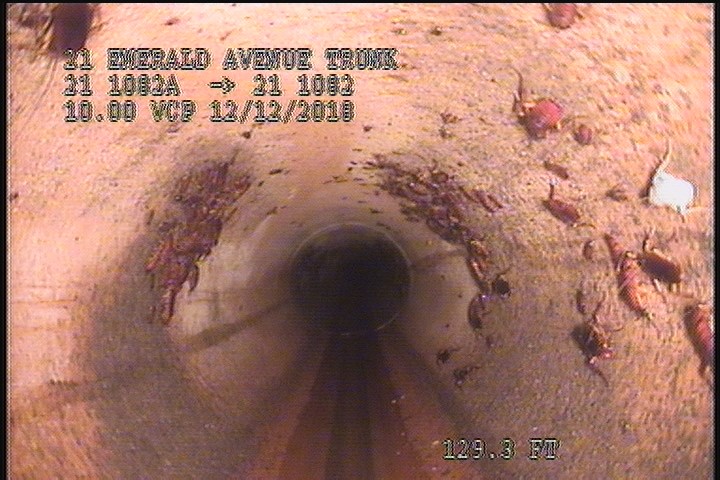

    129.3 ft. - General Photograph

  • General Photograph

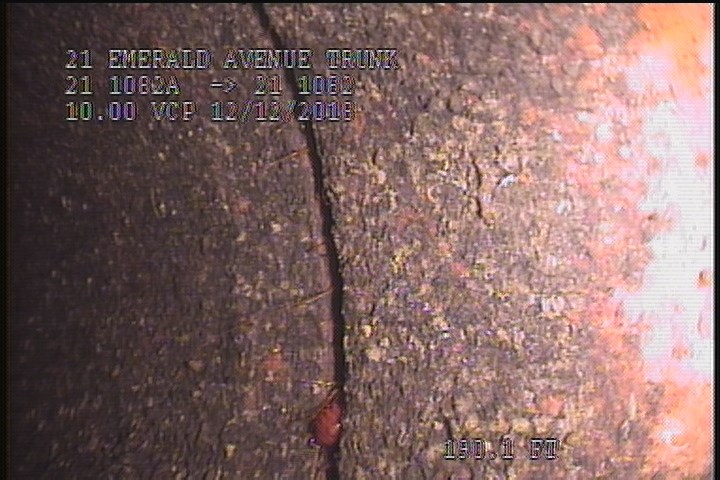

    190.1 ft. - General Photograph

All inspections of P16205Work order 0744088

Observations (17)

DistanceCodeObservation
203.2TFA—
217.6AMH12:12 PM
129.3MGP—
0AMH11:45 AM
214.6MGOMag Coat xx% 9 to 3 o' Clock Throughout
12.1TFC—
2SSS—
10.6TBA—
0MWM—
214.6SSS—
123.3MGP—
1.7MGOROACHES @ MH
190.1MGP—
0MWL—
0MGOConn. @ Mh, 9 O' Clock. Active
214.6MGOROACHES @ MH
0MGOConn. @ Mh, 3 O' Clock. Active

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-12-12T11:34:31-08:00
