Wastewater/Activity/PacpInspection/1.0Dec 11, 2018, 07:31 PM
21 1084B_21 1287_12112018_113424.mp4
- Date
- 12/11/2018
- W/O
- 0744088
- Weather
- Dry
- Operator/Surveyor
- FRANKLIN
- Sewer ID
- Z00764
- PipeID
- P24722
- Time
- 11:31 AM
- Certificate
- U-415-06024039
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7875
- Sewer Name
- 21 EMERALD AVENUE TRUNK
- City
- SAN DIMAS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 02
- Purpose
- Maintenance Related
- Project
- 20181211DF_EMERALD_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Upstream MH
- 21 1084B
- Downstream MH
- 21 1287
- Dir. of Survey
- Downstream
- Length Surveyed
- 118 ft.
- Total Length
- 118 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (4)

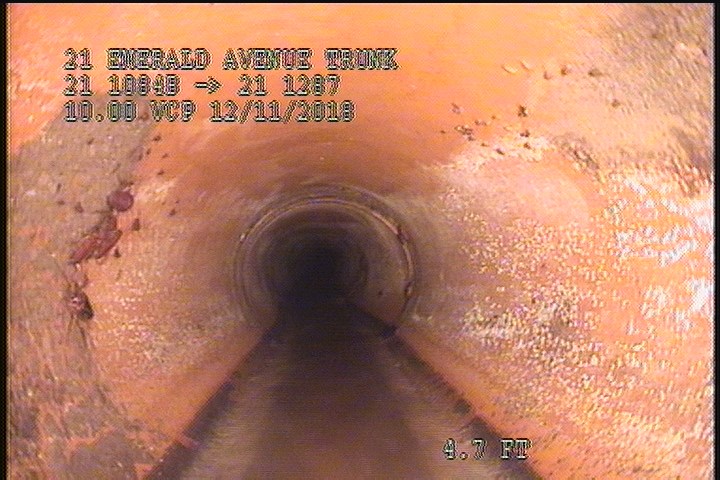

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

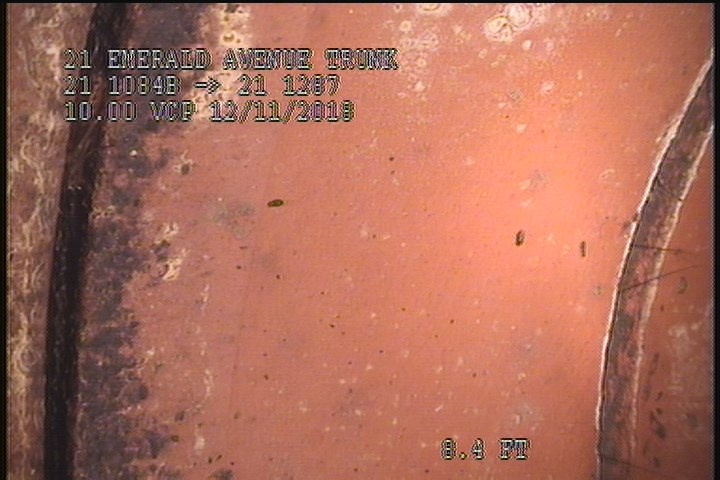

8.4 ft. - General Photograph - VCP PATCH REPAIR

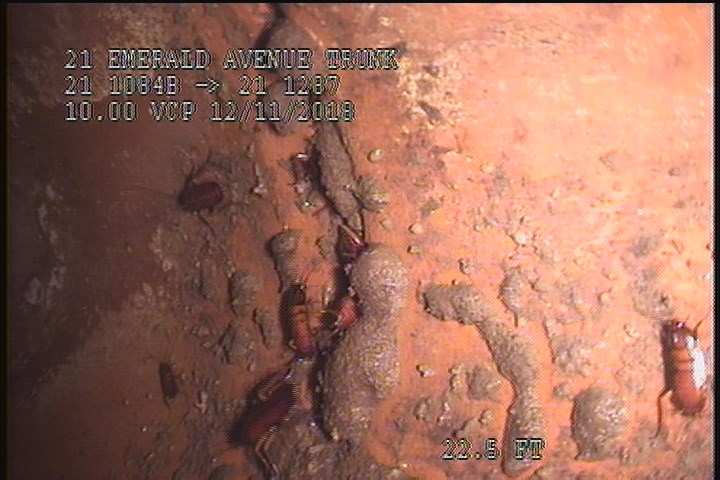

22.5 ft. - General Photograph

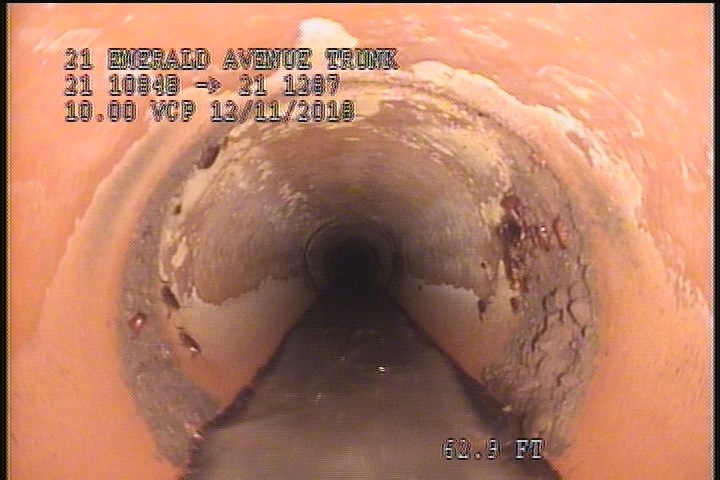

62.9 ft. - General Photograph
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 117.3 | SSS | — |
| 0 | MGO | ROACHES @ MH |
| 118 | AMH | 11:53 AM |
| 8.4 | MGP | VCP PATCH REPAIR |
| 2 | SSS | — |
| 118 | MGO | ROACHES @ MH |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. CAPPED |
| 0 | AMH | 11:33 AM |
| 117.9 | MGO | GREASE THROUGHOUT THE REACH (5%) |
| 29.6 | TFC | — |
| 0 | MWM | — |
| 22.5 | MGP | — |
| 0 | MWL | — |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 62.9 | MGP | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-11T11:31:54-08:00
