Wastewater/Activity/PacpInspection/1.0Dec 11, 2018, 01:52 PM
08 0683_08 0591_12112018_055448.mp4
- Date
- 12/11/2018
- W/O
- 0741815
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00016
- PipeID
- P00002
- Time
- 5:52 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1074
- Sewer Name
- 08 MAIN STREET TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 07
- Purpose
- Capital Improvement Program Assesment
- Project
- 20181210MDM_MAIN_STREET_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 08 0591
- Downstream MH
- 08 0683
- Dir. of Survey
- Upstream
- Length Surveyed
- 12.5 ft.
- Total Length
- 12.5 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 5
- O&M Quick
- 5141
- O&M Rating
- 9
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (3)

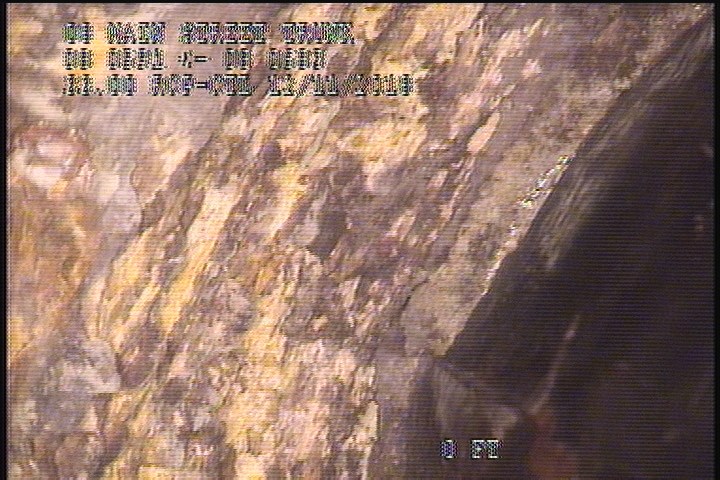

2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - AREA SOF MISSING TILES

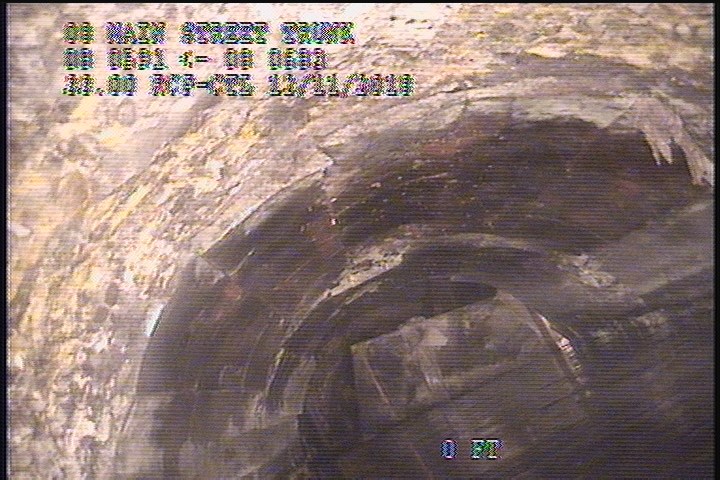

2 ft. - General Observation - MISSING TILES 10% START

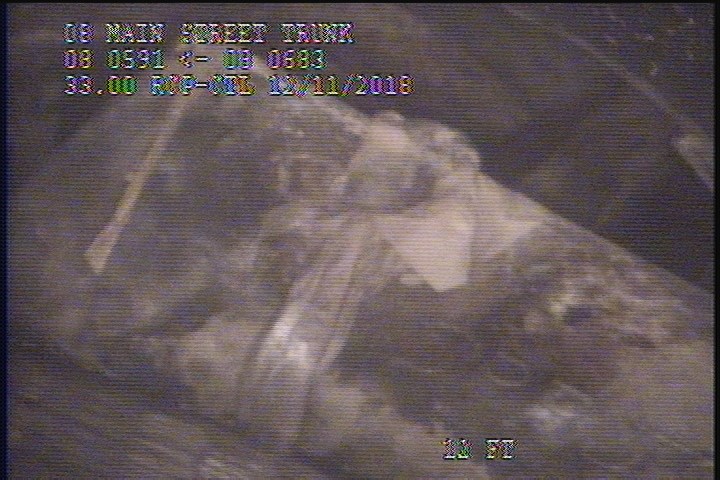

12 ft. - Deposits Settled Other, 80 %of cross sectional area, from 01 to 11 o'clock, , within 8 inches of joint: NO - FALLEN STOPLOG
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 12 | MGO | MISSING TILES 10% |
| 12 | DSZ | FALLEN STOPLOG |
| 12.5 | AMH | 5:55AM |
| 0 | MGO | Conn. @ Mh, 9 O' Clock. Active |
| 2 | SAM | AREA SOF MISSING TILES |
| 0 | MWL | — |
| 0 | AMH | 5:50AM |
| 2 | MGO | MISSING TILES 10% START |
| 0 | MWM | — |
| 12 | SAM | SEVERE AGG AREAS OF MISSING TILES |
Properties (4)
- custom_field_three
- SEVERE AGG MISSING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-11T05:52:49-08:00
