Wastewater/Activity/PacpInspection/1.0Dec 11, 2018, 01:01 PM
08 0591_08 0001_12112018_060534.mp4
- Date
- 12/11/2018
- W/O
- 0741815
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00016
- PipeID
- P00001
- Time
- 5:01 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H1074
- Sewer Name
- 08 MAIN STREET TRUNK
- City
- CARSON
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 08
- Page No.
- 07
- Purpose
- Capital Improvement Program Assesment
- Project
- 20181210MDM_MAIN_STREET_TRUNK
- Material
- RCP-CTL
- Shape
- Circular
- Height
- 33 in.
- Upstream MH
- 08 0591
- Downstream MH
- 08 0001
- Dir. of Survey
- Downstream
- Length Surveyed
- 8.5 ft.
- Total Length
- 8.5 ft.
- Structural Index
- 4
- Structural Quick
- 4100
- Structural Rating
- 4
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (2)

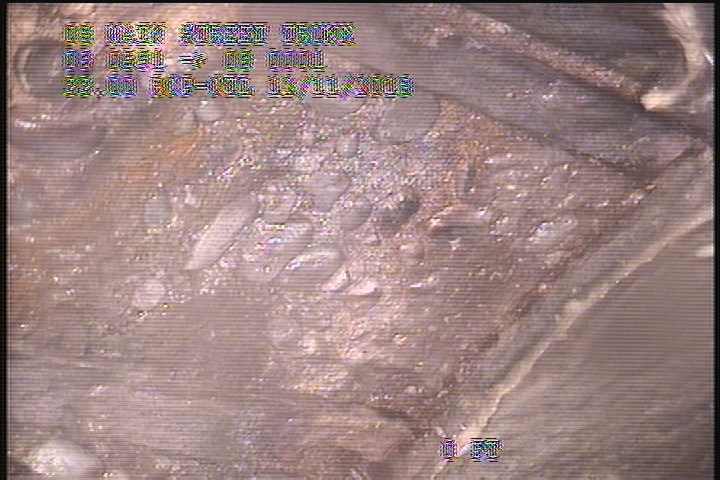

2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - AREAS OF MISSING TILES

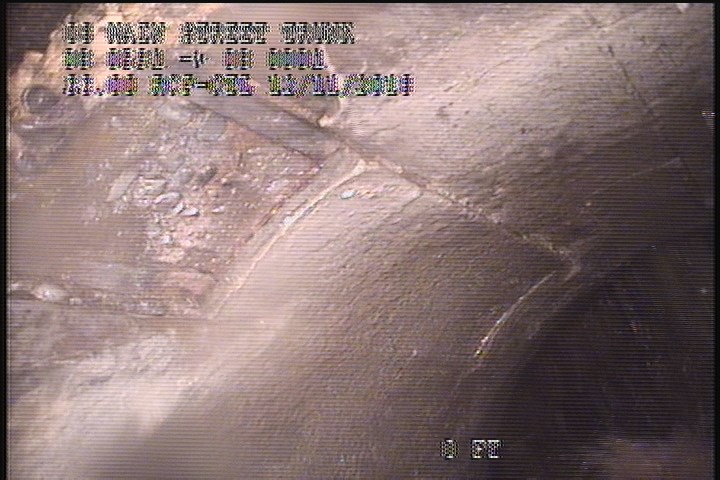

2 ft. - General Observation - MISSING TILES 5% START
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 8.5 | AMH | 6:05AM |
| 8 | MGO | MSSING TILES 5% FINISH |
| 0 | MGO | Conn. @ Mh, 3 O' Clock. Active |
| 0 | AMH | 6:00AM |
| 2 | SAM | AREAS OF MISSING TILES |
| 0 | MWL | — |
| 2 | MGO | MISSING TILES 5% START |
| 8 | SAM | SEVERE AGG AREAS OF MISSING TILES |
| 0 | MWM | — |
Properties (4)
- custom_field_three
- SEVERE AGG MISSING
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2018-12-11T05:01:15-08:00
