Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 10, 2018, 07:07 PM

  • 22 0903_22 0902_12102018_111438.mp4

Date
12/10/2018
W/O
0743924
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00799
PipeID
P17274
Time
11:07 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7874
Sewer Name
22 CONEY TRUNK, SECTS 2&3
City
AZUSA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
11
Purpose
Maintenance Related
Project
20181210DF_CONEY_TRUNK_SECTS_2_3
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
22 0903
Downstream MH
22 0902
Dir. of Survey
Downstream
Length Surveyed
155.9 ft.
Total Length
155.9 ft.
Structural Index
2
Structural Quick
2200
Structural Rating
4
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
4
Pipe schematic from manhole 22 0903 to 22 0902
MH: 22 0903MH: 22 0902downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 11:12 AM0 ft. MWM - Water Mark, 20 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start31.7 ft. MGP - General Photograph44.9 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES93.4 ft. MGP - General Photograph142.7 ft. MGP - General Photograph146.1 ft. MGP - General Photograph152.7 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish155.9 ft. AMH - Downstream Manhole, Survey Ends - 11:26 AM155.9 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)155.9 ft. MGO - General Observation - ROACHES @ MH

Observation photos (6)

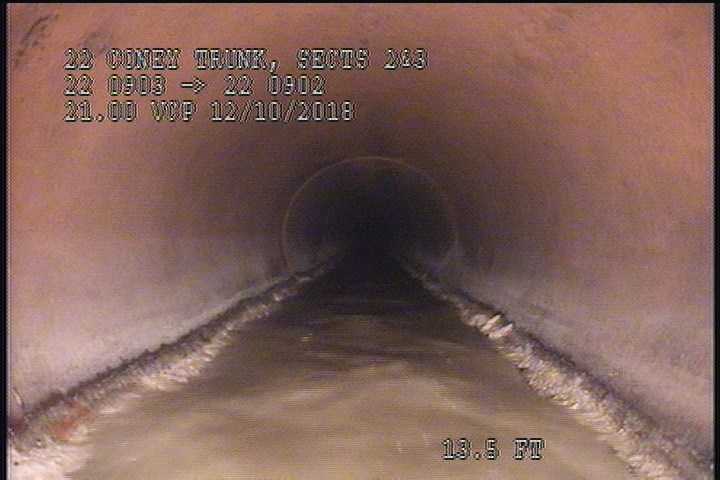

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

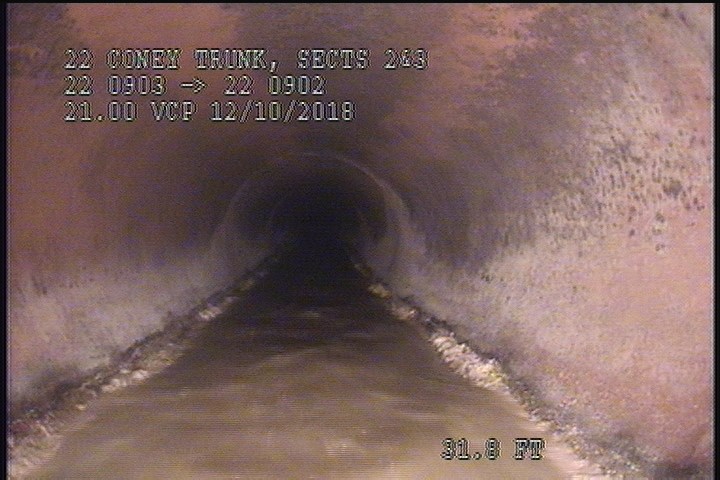

  • General Photograph

    31.7 ft. - General Photograph

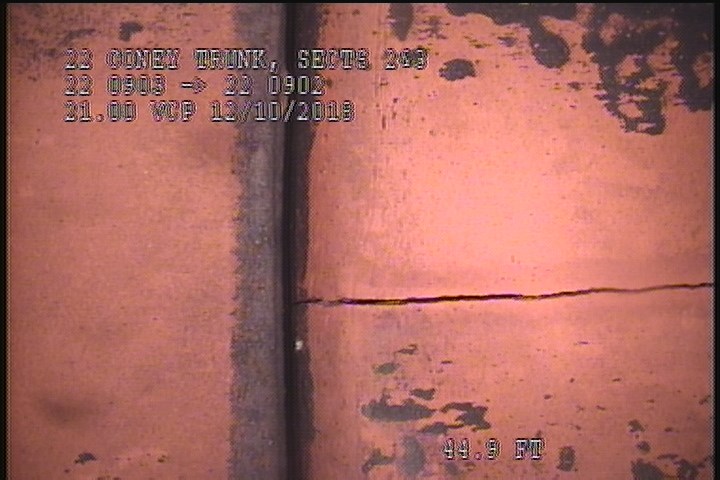

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    44.9 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • General Photograph

    93.4 ft. - General Photograph

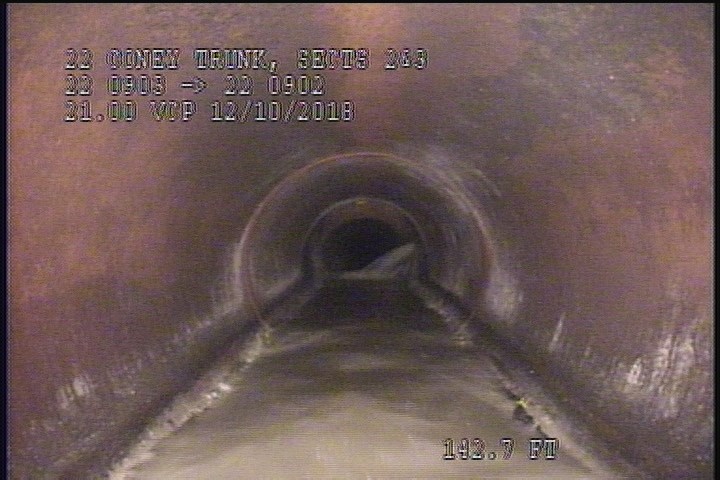

  • General Photograph

    142.7 ft. - General Photograph

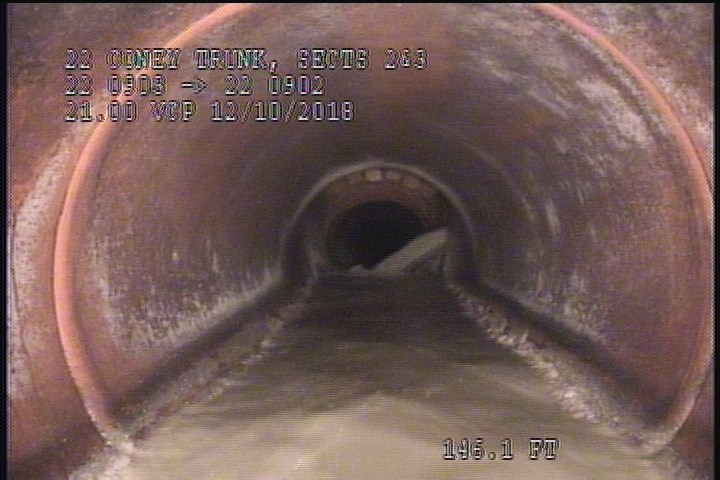

  • General Photograph

    146.1 ft. - General Photograph

All inspections of P17274Work order 0743924

Observations (13)

DistanceCodeObservation
2SSS—
142.7MGP—
152.7SSS—
44.9CL—
146.1MGP—
0MWL—
155.9AMH11:26 AM
0AMH11:12 AM
155.9MGOGREASE THROUGHOUT THE REACH (5%)
31.7MGP—
155.9MGOROACHES @ MH
93.4MGP—
0MWM—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-12-10T11:07:53-08:00
