Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 10, 2018, 06:14 PM

  • 22 0905_22 0904_12102018_103702.mp4

Date
12/10/2018
W/O
0743924
Weather
Dry
Operator/Surveyor
FRANKLIN
Sewer ID
Z00799
PipeID
P17276
Time
10:14 AM
Certificate
U-415-06024039
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G7874
Sewer Name
22 CONEY TRUNK, SECTS 2&3
City
AZUSA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
11
Purpose
Maintenance Related
Project
20181210DF_CONEY_TRUNK_SECTS_2_3
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Upstream MH
22 0905
Downstream MH
22 0904
Dir. of Survey
Downstream
Length Surveyed
299 ft.
Total Length
299 ft.
Structural Index
2
Structural Quick
2100
Structural Rating
2
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 22 0905 to 22 0904
MH: 22 0905MH: 22 0904downstream0 ft. AMH - Upstream Manhole, Survey Begins - 10:36 AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start91.3 ft. MGP - General Photograph150.6 ft. MGP - General Photograph175.5 ft. MGP - General Photograph258.5 ft. MGP - General Photograph295.9 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish299 ft. MGO - General Observation - Conn. @ Mh, 3 O' Clock. Active299 ft. AMH - Downstream Manhole, Survey Ends - 10:55 AM299 ft. MGO - General Observation - GREASE THROUGHOUT THE REACH (5%)

Observation photos (5)

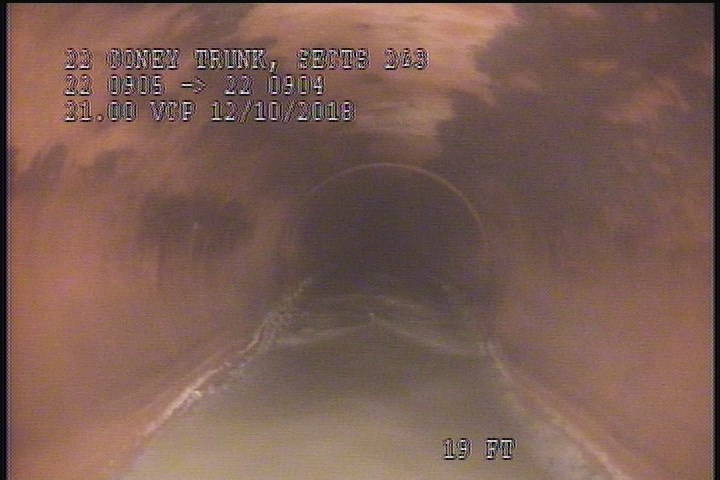

  • Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

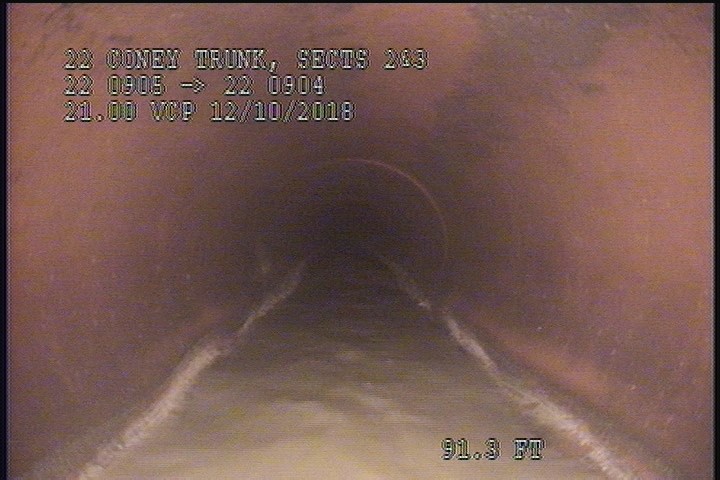

  • General Photograph

    91.3 ft. - General Photograph

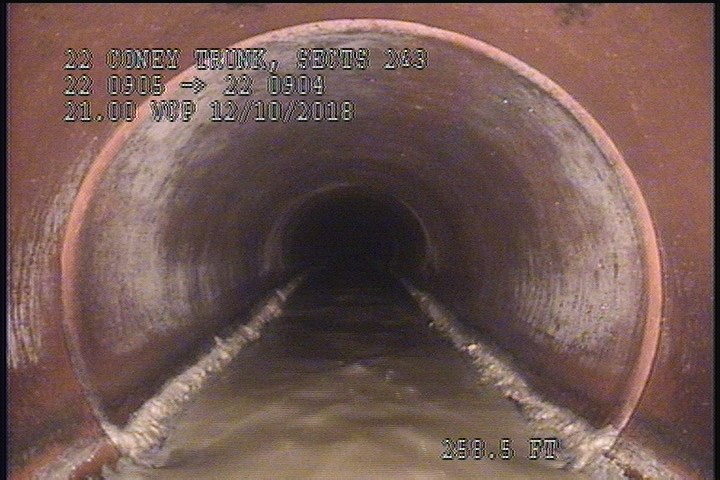

  • General Photograph

    150.6 ft. - General Photograph

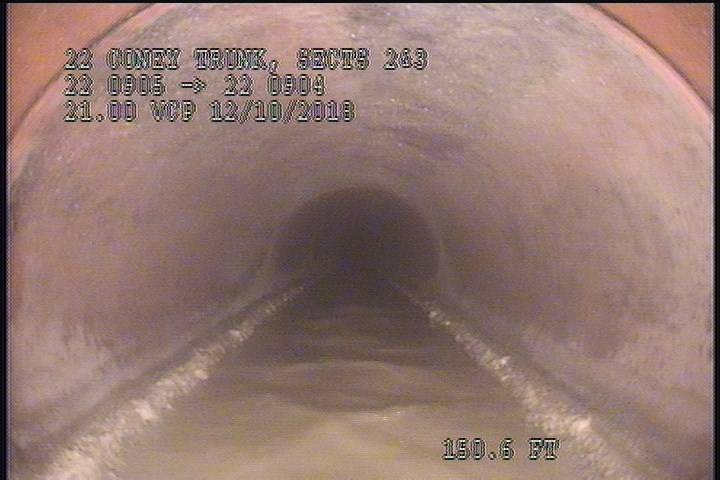

  • General Photograph

    175.5 ft. - General Photograph

  • General Photograph

    258.5 ft. - General Photograph

All inspections of P17276Work order 0743924

Observations (12)

DistanceCodeObservation
295.9SSS—
258.5MGP—
0AMH10:36 AM
2SSS—
299MGOConn. @ Mh, 3 O' Clock. Active
0MWM—
299AMH10:55 AM
299MGOGREASE THROUGHOUT THE REACH (5%)
0MWL—
150.6MGP—
175.5MGP—
91.3MGP—

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2018-12-10T10:14:14-08:00
