Wastewater/Activity/PacpInspection/1.0Dec 7, 2018, 04:27 PM
29 0416_29 0415_1272018_091706.mp4
- Date
- 12/07/2018
- W/O
- 0742392
- Weather
- Dry
- Operator/Surveyor
- SANTIAGO OBREGON
- Sewer ID
- Z00355
- PipeID
- P24453
- Time
- 8:27 AM
- Certificate
- U-1014-06022541
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- G7872
- Sewer Name
- 29 LEWIS AVENUE TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 29
- Page No.
- 03
- Purpose
- Routine Assessment
- Project
- 20181207SHO_LEWIS_AVENUE_TRUNK
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 7.679999828338623 in.
- Upstream MH
- 29 0416
- Downstream MH
- 29 0415
- Dir. of Survey
- Downstream
- Length Surveyed
- 422 ft.
- Total Length
- 422 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 3123
- O&M Rating
- 9
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 9
Observation photos (4)

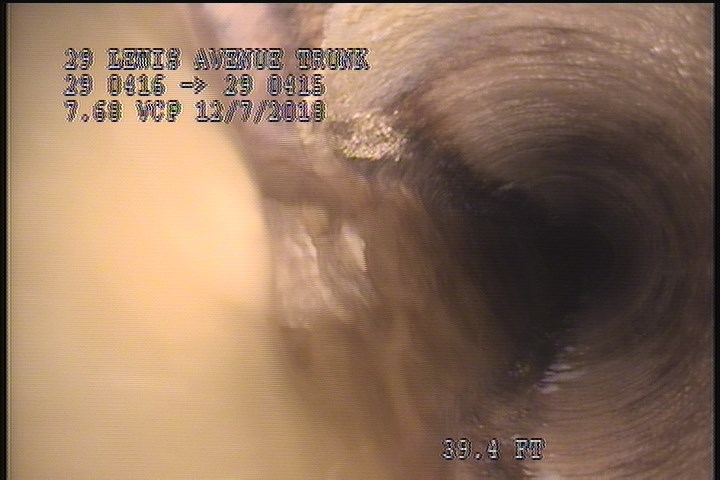

39.4 ft. - Obstacles Other, 5 %of cross sectional area, from 05 to 07 o'clock - DEBRIS

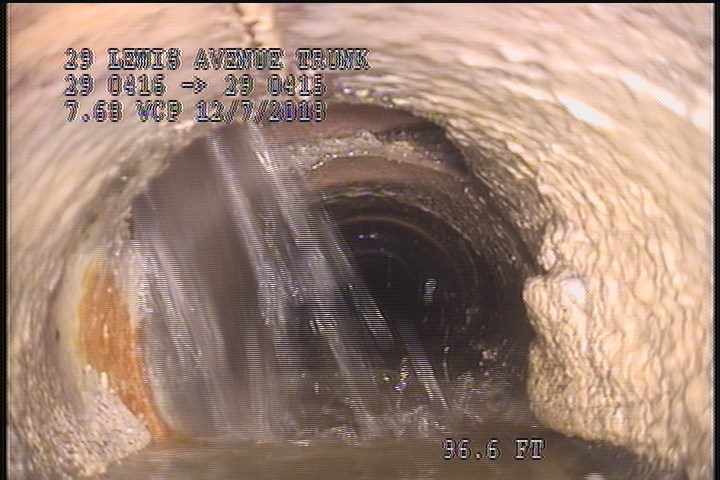

96.6 ft. - Deposits Attached Grease, 05 %of cross sectional area, from 02 to 05 o'clock, , within 8 inches of joint: NO

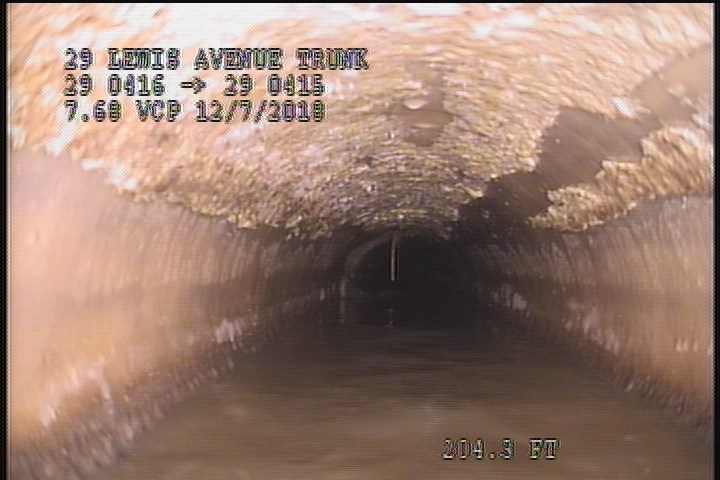

204.3 ft. - General Observation - POSSIBLE MAG FROM 10 TO 2

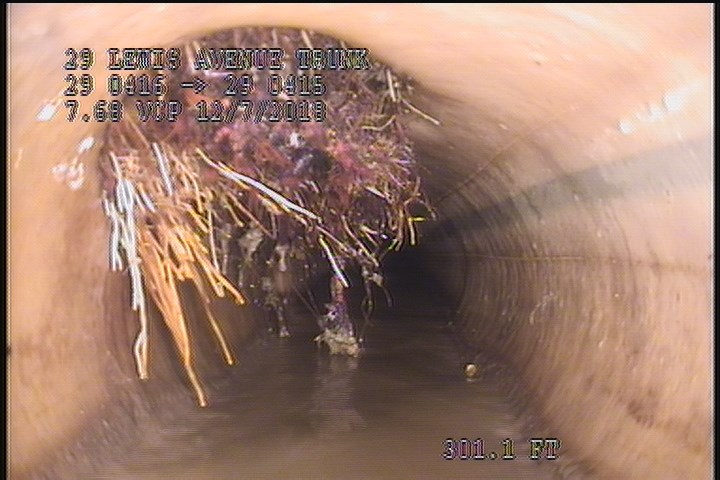

301.6 ft. - Roots Medium Lateral, from 09 to 12 o'clock, 20 %, within 8 inches of joint: NO
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 39.4 | OBZ | DEBRIS |
| 0 | MWL | — |
| 204.3 | MGO | POSSIBLE MAG FROM 10 TO 2 |
| 96.6 | DAGS | — |
| 422 | AMH | MH 0415 |
| 0 | MWM | — |
| 301.5 | TFD | 100% BLOCKAGE FROM ROOTS |
| 208.7 | TFA | — |
| 301.6 | RML | — |
| 0 | AMH | MH 0416 |
| 98.1 | TFA | — |
| 422 | MGO | ACTIVE CONNECTION IN THE MH @ 8 |
Properties (5)
- custom_field_three
- LINER IS IN GOOD CONDITION
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2018-12-07T08:27:25-08:00
- lining
- CIPP
