Wastewater/Activity/PacpInspection/1.0Nov 23, 2016, 09:26 AM
B 1509_B 1508 _11232016_013931.mp4
- Date
- 11/23/2016
- W/O
- 608085
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01124
- PipeID
- P25624
- Time
- 1:26 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3886
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_608085_TV16038_DEC2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 1509
- Downstream MH
- B 1508
- Dir. of Survey
- Downstream
- Length Surveyed
- 425.9 ft.
- Total Length
- 425.9 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (2)

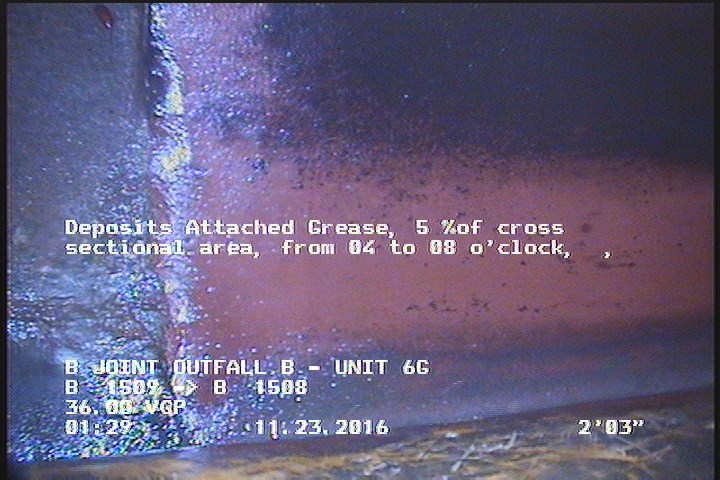

2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

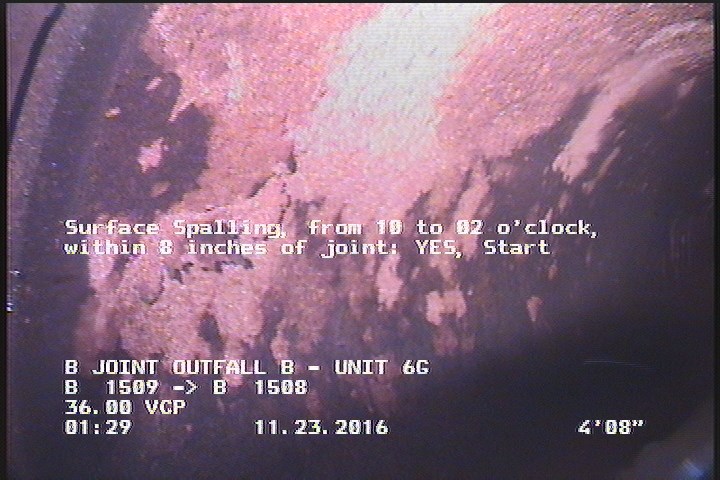

4.6 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0.1 | VC | AT MH |
| 4.6 | SSS | — |
| 0 | AMH | B 1509 |
| 2.3 | DAGS | — |
| 420.6 | DAGS | — |
| 425.9 | MGO | CCTV FOOTAGE DIFFERENT FROM SPREAD SHEET |
| 425.9 | AMH | B 1508 |
| 336.1 | SSS | — |
| 0 | MWM | — |
Properties (6)
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-23T01:26:51-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 38891
