Wastewater/Activity/PacpInspection/1.0Nov 28, 2016, 09:38 AM
B 1504_B 1503 _11282016_021246.mp4
- Date
- 11/28/2016
- W/O
- 608085
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z01124
- PipeID
- P25619
- Time
- 1:38 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3887
- Sewer Name
- B JOINT OUTFALL B - UNIT 6G
- City
- ALHAMBRA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 16
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_608085_TV16038_DEC2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 36 in.
- Width
- 36 in.
- Upstream MH
- B 1504
- Downstream MH
- B 1503
- Dir. of Survey
- Downstream
- Length Surveyed
- 438.8 ft.
- Total Length
- 438.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2Q00
- O&M Rating
- 176
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 176
Observation photos (3)

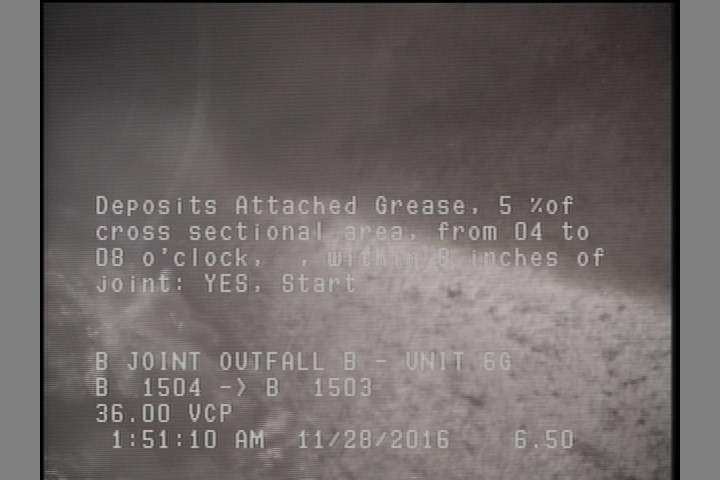

6.5 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

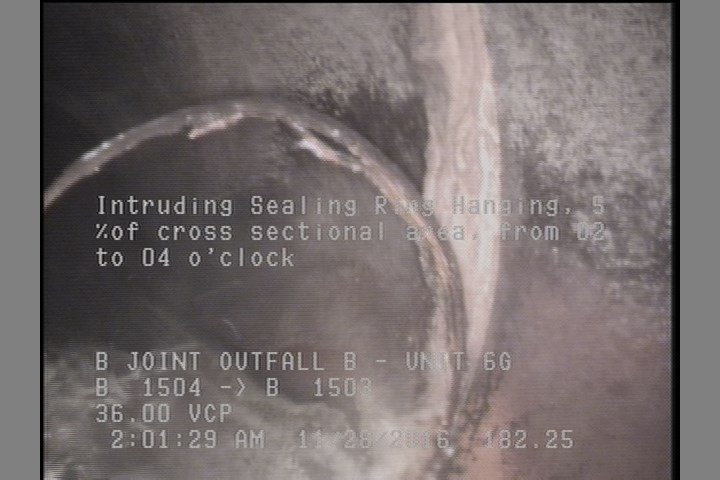

182.2 ft. - Intruding Sealing Ring Hanging, 5 %of cross sectional area, from 02 to 04 o'clock

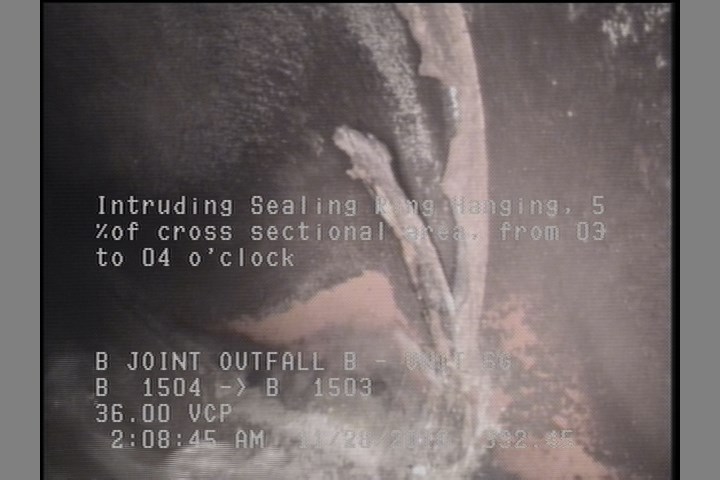

392.4 ft. - Intruding Sealing Ring Hanging, 5 %of cross sectional area, from 03 to 04 o'clock
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | B 1504 |
| 182.2 | ISSRH | — |
| 392.4 | ISSRH | — |
| 0 | MWL | — |
| 6.5 | DAGS | — |
| 438.8 | AMH | B 1503 |
| 438 | DAGS | — |
| 0 | MWM | — |
Properties (7)
- additional_info
- SC305221
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-28T01:38:49-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
- year_laid
- 38884
