Wastewater/Activity/PacpInspection/1.0Dec 24, 2014, 10:13 AM
32 1327_32 1326_12242014_022122.mp4
- Date
- 12/24/2014
- W/O
- 0464353
- Weather
- Dry
- Operator/Surveyor
- C. DEHNER
- Sewer ID
- Z01119
- PipeID
- P24958
- Time
- 2:13 AM
- Certificate
- U-912-15963
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K2074
- Sewer Name
- 32 DISTRICT #26 INTERCEPTOR RELIEF TRUNK
- City
- SANTA CLARITA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_0464353_TV32013_2014October
- Sewer Type
- GRAVITY
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 32 1327
- Downstream MH
- 32 1326
- Dir. of Survey
- Downstream
- Length Surveyed
- 127.6 ft.
- Total Length
- 127.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

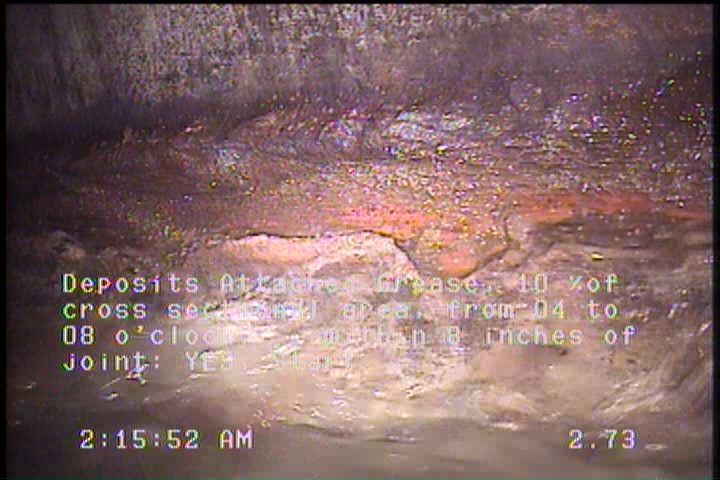

2.7 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 32 1327 |
| 127.6 | AMH | 32 1326 |
| 0 | MWL | — |
| 2.7 | DAGS | — |
| 0 | MWM | — |
| 124.9 | DAGS | — |
Properties (7)
- additional_info
- SC207205
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2014-12-24T02:13:46-08:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 20030318
