Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jan 4, 2018, 11:41 AM

  • 22 0468_22 0467_142018_043413.mp4

Date
01/04/2018
W/O
#
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00816
PipeID
P16806
Time
3:41 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0720
Sewer Name
22 LARK ELLEN TRUNK, SECTS 4,5,&6
City
IRWINDALE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 22
Page No.
19
Purpose
Capital Improvement Program Assesment
Project
20180104MDM_LARK_ELLEN_TRUNK_SECTS_4_5_6
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
22 0468
Downstream MH
22 0467
Dir. of Survey
Downstream
Length Surveyed
278.3 ft.
Total Length
278.3 ft.
Structural Index
3
Structural Quick
4221
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 22 0468 to 22 0467
MH: 22 0468MH: 22 0467downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 15 %of cross sectional area0 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active0 ft. AMH - Upstream Manhole, Survey Begins - 4:30AM2 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG2 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTCHED3.1 ft. MGO - General Observation - MAG COAT 60% START 9:00 TO 3:0044 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active49.9 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: YES, 6" - Active52.9 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG96.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Capped165.9 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Open262.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6" - Active278.3 ft. AMH - Downstream Manhole, Survey Ends - 4:55AM278.3 ft. MGO - General Observation - MAG COAT 60% FINISH278.3 ft. SAM - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - SEVERE AGG278.3 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish - PEELING CONCRETE SEVERE AGG ATTCHED278.3 ft. MGO - General Observation - Conn. @ Mh, 9 O' Clock. Active

Observation photos (4)

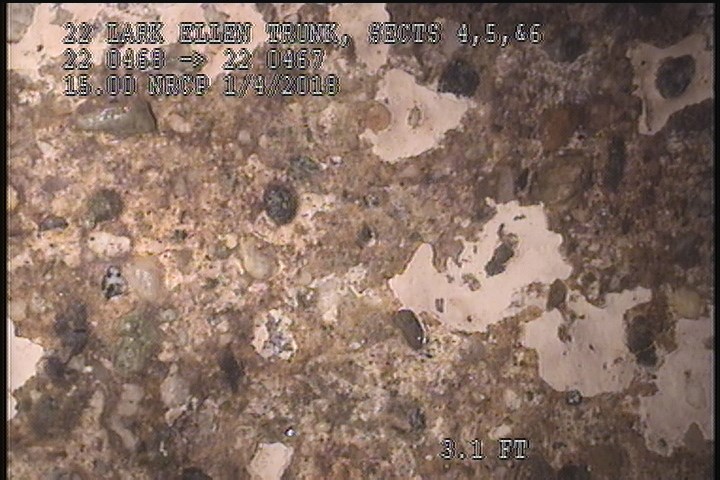

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

    2 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SEVERE AGG

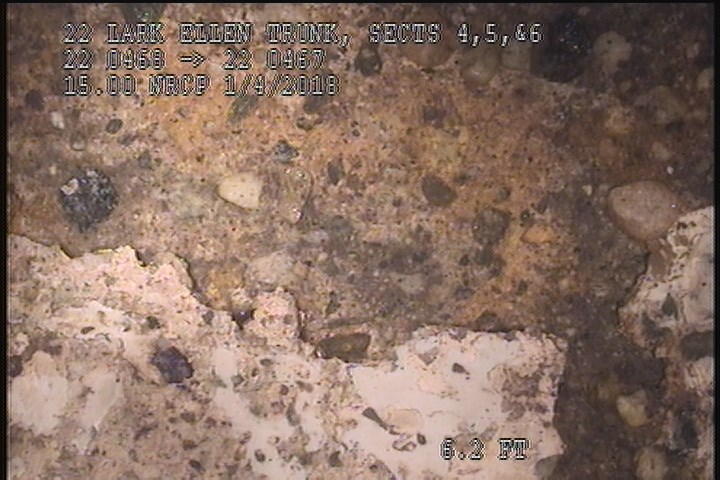

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTCHED

    2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - PEELING CONCRETE SEVERE AGG ATTCHED

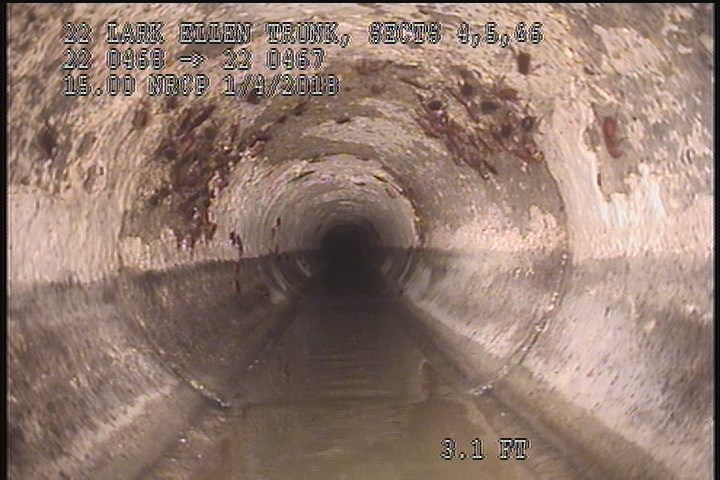

  • General Observation - MAG COAT 60% START 9:00 TO 3:00

    3.1 ft. - General Observation - MAG COAT 60% START 9:00 TO 3:00

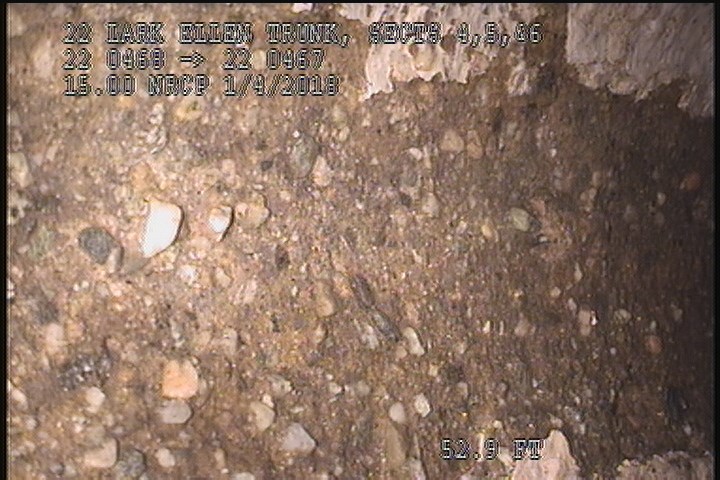

  • Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

    52.9 ft. - Surface Aggregate Missing, from 09 to 03 o'clock, within 8 inches of joint: NO - SEVERE AGG

All inspections of P16806Work order #

Observations (18)

DistanceCodeObservation
49.9TFActive
0MWL—
2SAMSEVERE AGG
278.3AMH4:55AM
0MWM—
278.3MGOMAG COAT 60% FINISH
52.9SAMSEVERE AGG
278.3SAMSEVERE AGG
0MGOConn. @ Mh, 9 O' Clock. Active
96.9TFCCapped
278.3SSSPEELING CONCRETE SEVERE AGG ATTCHED
278.3MGOConn. @ Mh, 9 O' Clock. Active
0AMH4:30AM
262.2TFActive
165.9TFOpen
2SSSPEELING CONCRETE SEVERE AGG ATTCHED
3.1MGOMAG COAT 60% START 9:00 TO 3:00
44TFActive

Properties (6)

custom_field_three
PEELING CONCRETE SEVERE AGG ATTCHED
custom_field_two
2
customer
LACSD
datetime
2018-01-04T03:41:05-08:00
documentation
MARTIN,MANANES,REVELES
is_lateral_inspection
false
