Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 28, 2017, 08:42 AM

  • 16 0556_16 0555 _28092017_014252.mp4

Date
09/28/2017
W/O
663060
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00659
PipeID
P13607
Time
1:42 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4279
Sewer Name
16 LAMANDA PARK TRUNK
City
PASADENA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
15
Purpose
Routine Assessment
Project
WO_630370_TV05315_AUG2017
Sewer Type
Gravity
Material
Reinforced Concrete Pipe
Shape
Circular
Height
22 in.
Width
22 in.
Upstream MH
16 0555
Downstream MH
16 0556
Dir. of Survey
Upstream
Length Surveyed
311.9 ft.
Total Length
311.9 ft.
Structural Index
3
Structural Quick
3K00
Structural Rating
183
O&M Index
2
O&M Quick
2K12
O&M Rating
124
Overall Index
2
Overall Quick
—
Overall Rating
307
Pipe schematic from manhole 16 0555 to 16 0556
MH: 16 0555MH: 16 0556upstream0 ft. VC - Vermin Cockroach0 ft. AMH - Upstream Manhole, Survey Ends - 16 05563.5 ft. MGO - General Observation - MAG COAT FINISH3.5 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish3.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Finish8.5 ft. TBA - Tap Break-In Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"64.6 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"67.9 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: YES, 4"117.3 ft. TFA - Tap Factory Made Active, at 02 o'clock, -, within 8 inches of joint: YES, 4"121.1 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"165.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"309.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start309.8 ft. MGO - General Observation - MAG COAT START309.8 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start309.8 ft. VC - Vermin Cockroach311.9 ft. MWL - Water Level, 10 %of cross sectional area311.9 ft. MWM - Water Mark, 20 %of cross sectional area311.9 ft. AMH - Downstream Manhole, Survey Begins - 16 0555311.9 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE

Observation photos (2)

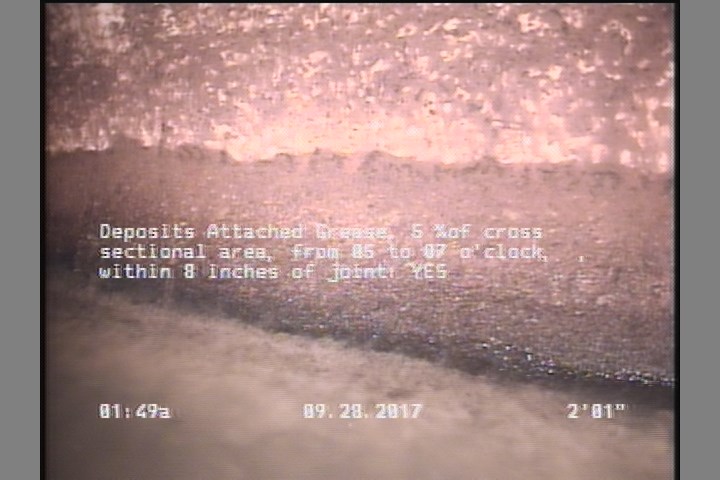

  • Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

    2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

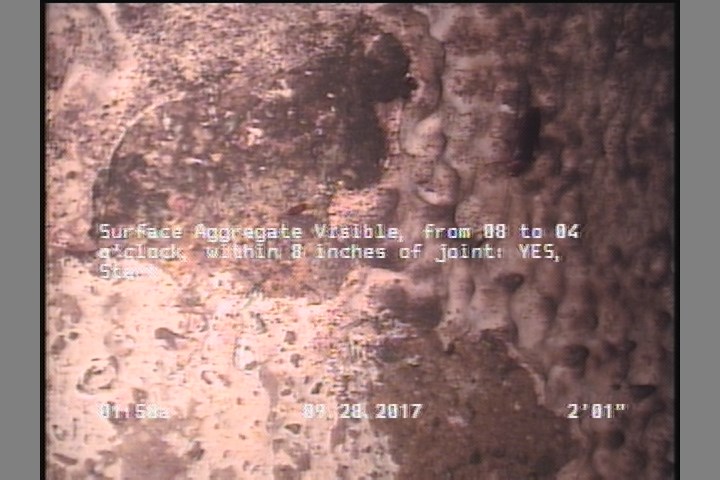

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P13607Work order 663060

Observations (19)

DistanceCodeObservation
311.9VC—
194.6TFA—
2.1DAGS—
146.5TFC—
0MWL—
311.9AMH16 0556
2.1MGOMAG COAT START
308.4MGOMAG COAT FINISH
308.4SAV—
244TFA—
303.4TBA—
2.1SAV—
2.1VC—
308.4DAGS—
0MWM—
0AMH16 0555
0MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
247.3TFA—
190.8TFC—

Properties (5)

additional_info
SC352124
custom_field_two
3
customer
LACSD
datetime
2017-09-28T01:42:43-07:00
is_lateral_inspection
false
