Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 21, 2017, 08:27 AM
Date
09/21/2017
W/O
658119
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00375
PipeID
P24194
Time
1:27 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4886
Sewer Name
29 ORANGE AVENUE SEWER
City
SIGNAL HILL
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 29
Page No.
03
Purpose
Routine Assessment
Project
WO_630370_TV05315_AUG2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Width
8 in.
Upstream MH
29 0284
Downstream MH
29 0285
Dir. of Survey
Upstream
Length Surveyed
302.4 ft.
Total Length
302.4 ft.
Structural Index
3
Structural Quick
3321
Structural Rating
11
O&M Index
1
O&M Quick
2113
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
16
Pipe schematic from manhole 29 0284 to 29 0285
MH: 29 0284MH: 29 0285upstream0 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish0 ft. AMH - Upstream Manhole, Survey Ends - 29 02851.4 ft. MGO - General Observation - SPALLING THROUGHOUT THE REACH8.2 ft. RFJ - Roots Fine Joint, at 08 o'clock, within 8 inches of joint: YES9.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"11.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"25.7 ft. RFJ - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES35 ft. RFJ - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES75.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"116.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"140.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 6"158.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"209.6 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: NO, 6", 6" - BROKEN230.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"269.8 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 6"271.6 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start273.8 ft. CL - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES275 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"276.9 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES302.4 ft. MWM - Water Mark, 10 %of cross sectional area302.4 ft. AMH - Downstream Manhole, Survey Begins - 29 0284302.4 ft. MWL - Water Level, 5 %of cross sectional area

Observation photos (5)

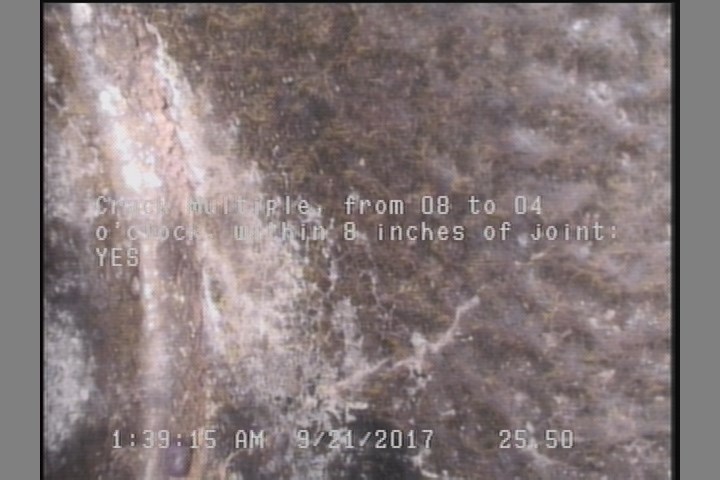

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    25.5 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

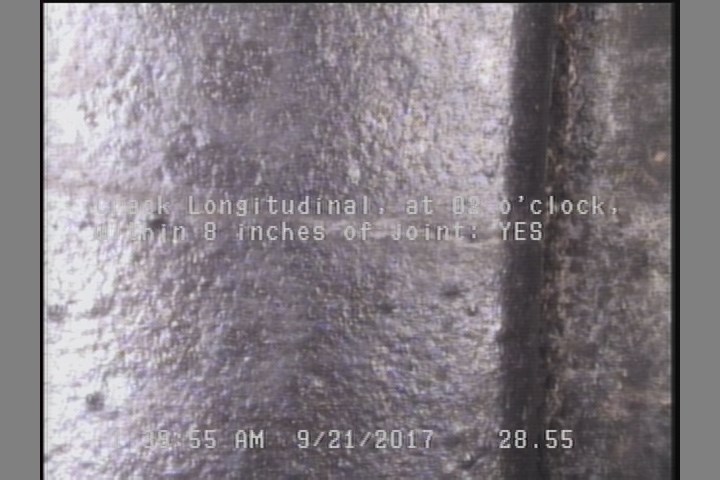

  • Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

    28.6 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

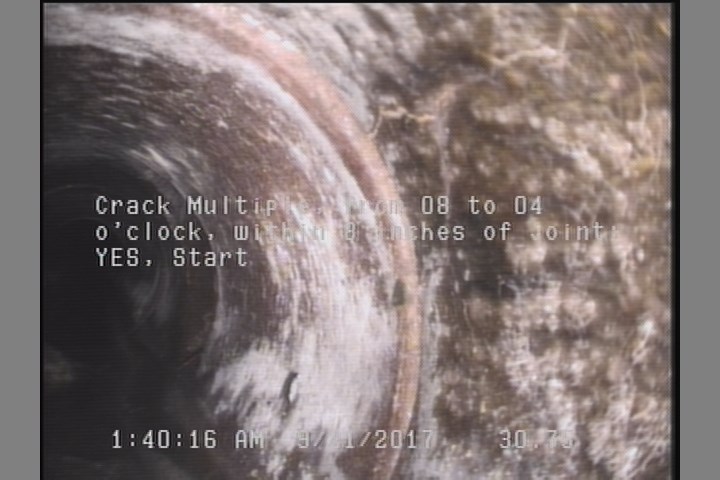

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    30.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

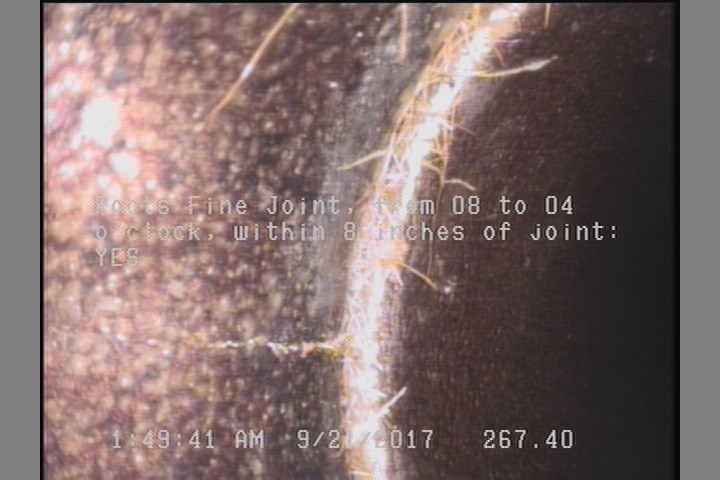

  • Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

    267.4 ft. - Roots Fine Joint, from 08 to 04 o'clock, within 8 inches of joint: YES

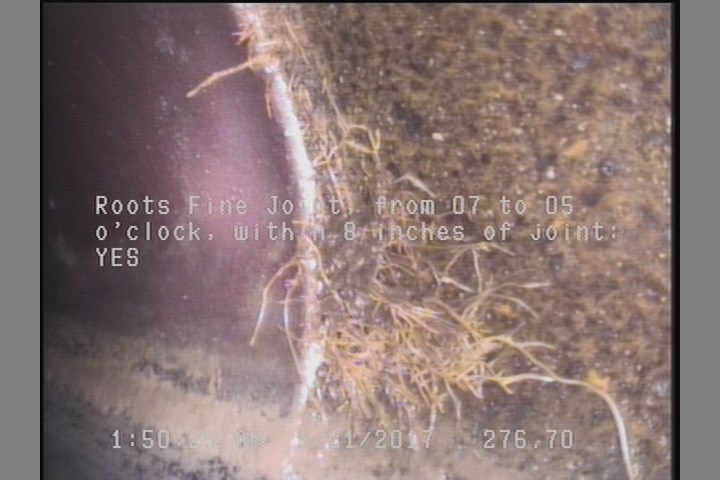

  • Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES

    276.7 ft. - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES

All inspections of P24194Work order 658119

Observations (22)

DistanceCodeObservation
302.4CM—
32.6TFC—
161.7TFC—
294.2RFJ—
290.7TFC—
293.2TF—
143.8TFC—
0MWM—
227TFC—
0AMH29 0284
267.4RFJ—
25.5CM—
185.6TF—
0MWL—
276.7RFJ—
72.1TF—
302.4AMH29 0285
28.6CL—
30.8CM—
301MGOSPALLING THROUGHOUT THE REACH
92.8TFDBROKEN
27.4TFC—

Properties (6)

additional_info
SC345946
custom_field_two
3
customer
LACSD
datetime
2017-09-21T01:27:58-07:00
is_lateral_inspection
false
year_laid
39295
