Wastewater/Activity/PacpInspection/1.0Sep 11, 2017, 11:29 AM
- Date
- 09/11/2017
- W/O
- 657840
- Weather
- Dry
- Operator/Surveyor
- CORTEZ ESTEBAN
- Sewer ID
- Z00199
- PipeID
- P01397
- Time
- 4:29 AM
- Certificate
- U-209-848
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4921
- Sewer Name
- 01 CALIFORNIA AVENUE EXTENSION TRUNK
- City
- SOUTH GATE
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 11
- Purpose
- Routine Assessment
- Project
- WO_630370_TV05315_AUG2017
- Sewer Type
- Siphon
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- 01 0687
- Downstream MH
- 01 0688
- Dir. of Survey
- Upstream
- Length Surveyed
- 2.2 ft.
- Total Length
- 2.2 ft.
- Structural Index
- 4
- Structural Quick
- 5131
- Structural Rating
- 8
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 12
Observation photos (3)

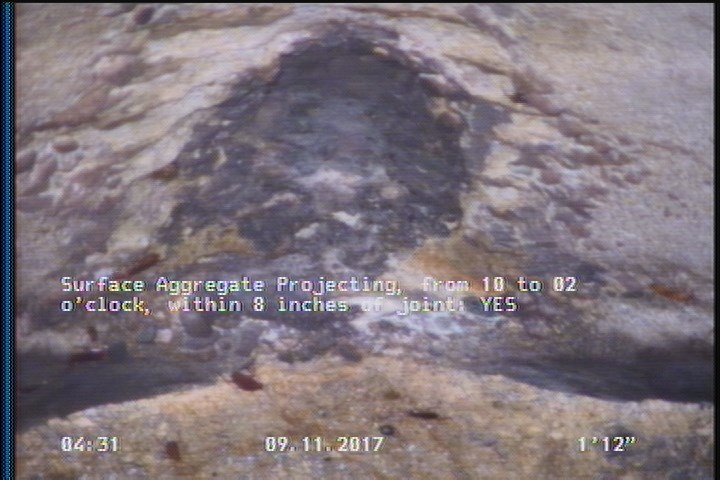

2 ft. - Surface Aggregate Projecting, from 10 to 02 o'clock, within 8 inches of joint: YES

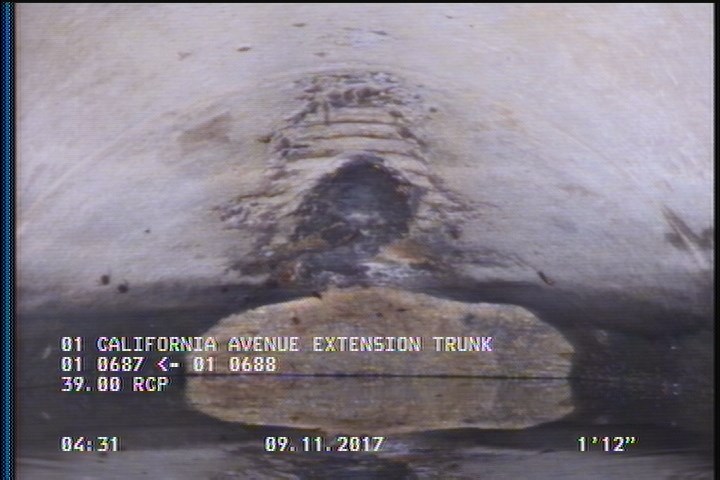

2 ft. - Deposits Settled Other, 30 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

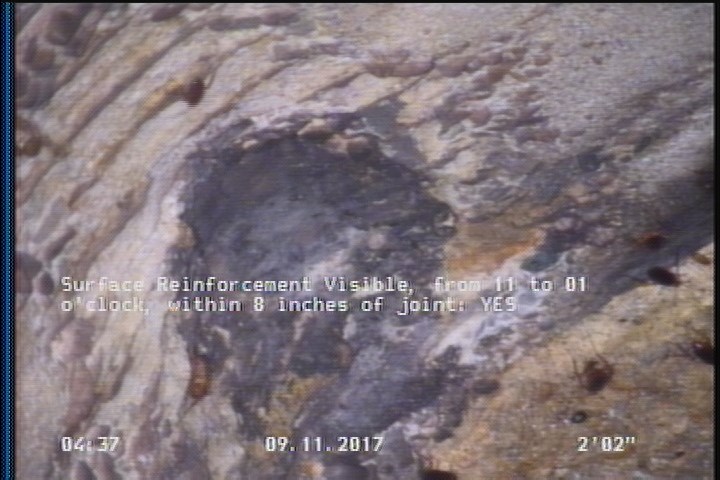

2.2 ft. - Surface Reinforcement Visible, from 11 to 01 o'clock, within 8 inches of joint: YES
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 2 | MSA | VIEW OF THE U/S SIPHON FROM D/S MH |
| 2 | SAP | — |
| 1.8 | MGO | PEELING/FLAKING/SPALLING THROUGHOUT THE REACH |
| 2.2 | SRV | — |
| 0 | MGO | — |
| 0 | AMH | 01 0687 |
| 2 | DSZ | — |
Properties (5)
- additional_info
- SC345828
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-11T04:29:06-07:00
- is_lateral_inspection
- false
