Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Sep 19, 2017, 07:01 AM

  • 32 1175_32 1174_19092017_001729.mp4

Date
09/19/2017
W/O
654216
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00839
PipeID
P19629
Time
12:01 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4879
Sewer Name
32 SAN FERNANDO ROAD TRUNK
City
SANTA CLARITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 32
Page No.
09
Purpose
Routine Assessment
Project
WO_630370_TV05315_AUG2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
32 1174
Downstream MH
32 1175
Dir. of Survey
Upstream
Length Surveyed
395.2 ft.
Total Length
395.2 ft.
Structural Index
2
Structural Quick
322O
Structural Rating
162
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
162
Pipe schematic from manhole 32 1174 to 32 1175
MH: 32 1174MH: 32 1175upstream0 ft. MGO - General Observation - LATERAL AT MH 9 OCLOCK0 ft. MGO - General Observation - LATERAL AT MH 3 OCLOCK0 ft. AMH - Upstream Manhole, Survey Ends - 32 11751.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish102.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"213.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"219.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"235.1 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Finish235.1 ft. MMC - Material Change, Vitrified clay pipe376 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"392.6 ft. SAV - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start392.7 ft. MGO - General Observation - MAG COAT393.2 ft. SSS - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start395.2 ft. MWM - Water Mark, 15 %of cross sectional area395.2 ft. MWL - Water Level, 10 %of cross sectional area395.2 ft. AMH - Downstream Manhole, Survey Begins - 32 1174

Observation photos (2)

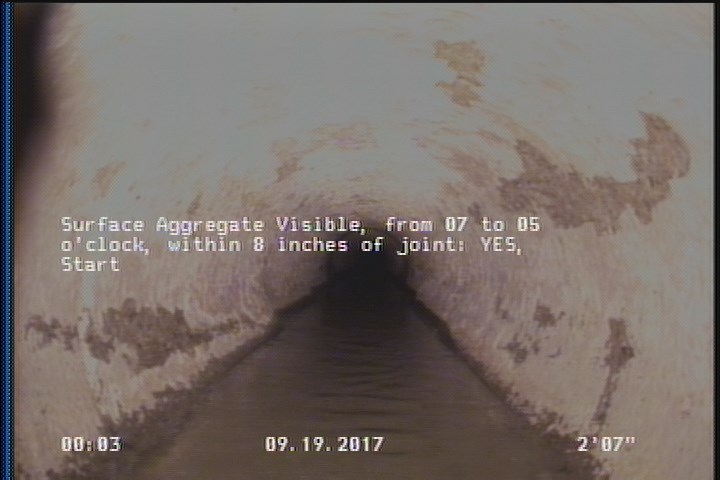

  • Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

    2.6 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

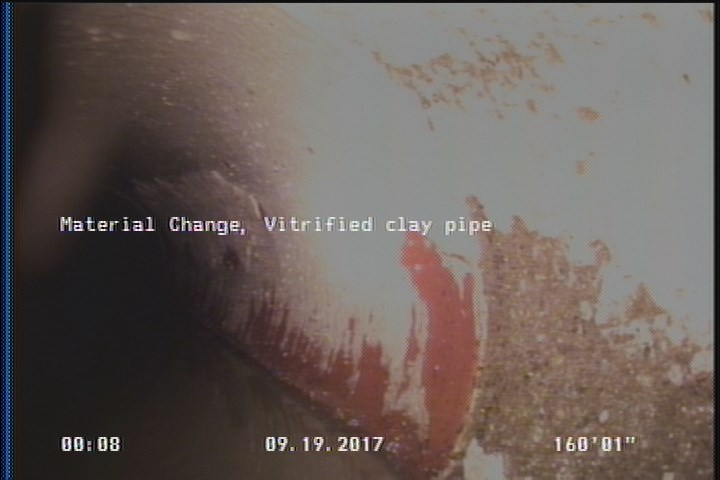

  • Material Change, Vitrified clay pipe

    160.1 ft. - Material Change, Vitrified clay pipe

All inspections of P19629Work order 654216

Observations (16)

DistanceCodeObservation
175.9TF—
395.2MGOLATERAL AT MH 9 OCLOCK
0MWM—
0MWL—
0AMH32 1174
395.2MGOLATERAL AT MH 3 OCLOCK
160.1SAV—
292.3TF—
160.1MMC—
394SSS—
2.5MGOMAG COAT
395.2AMH32 1175
2.6SAV—
181.5TF—
2SSS—
19.2TF—

Properties (5)

additional_info
SC345939
custom_field_two
3
customer
LACSD
datetime
2017-09-19T00:01:20-07:00
is_lateral_inspection
false
