Wastewater/Activity/PacpInspection/1.0Sep 19, 2017, 11:03 AM
32 1169_32 1168 _19092017_041751.mp4
- Date
- 09/19/2017
- W/O
- 654216
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00839
- PipeID
- P19623
- Time
- 4:03 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4879
- Sewer Name
- 32 SAN FERNANDO ROAD TRUNK
- City
- SANTA CLARITA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 32
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_630370_TV05315_AUG2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 32 1169
- Downstream MH
- 32 1168
- Dir. of Survey
- Downstream
- Length Surveyed
- 408.3 ft.
- Total Length
- 408.3 ft.
- Structural Index
- 2
- Structural Quick
- 322^
- Structural Rating
- 312
- O&M Index
- 1
- O&M Quick
- 1100
- O&M Rating
- 1
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 313
Observation photos (3)

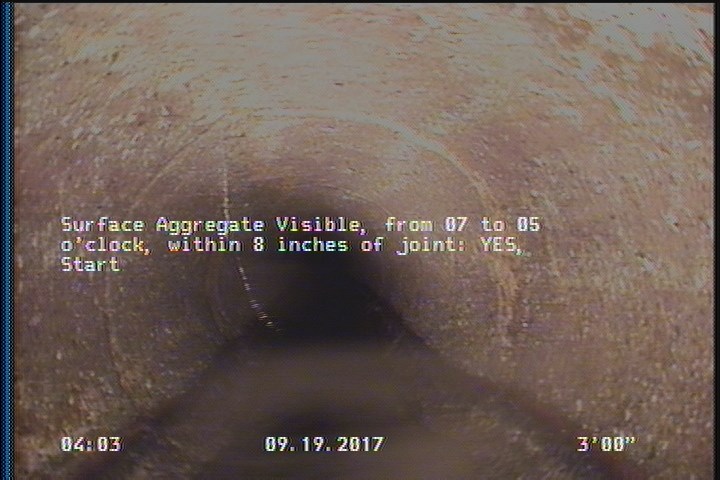

3 ft. - Surface Aggregate Projecting, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

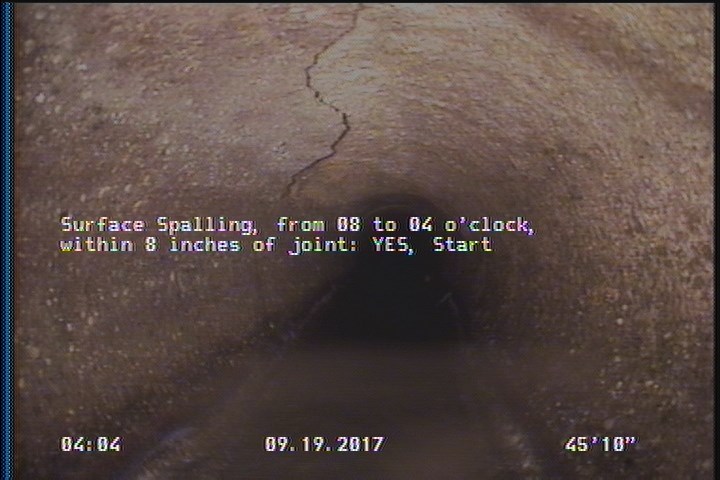

45.8 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

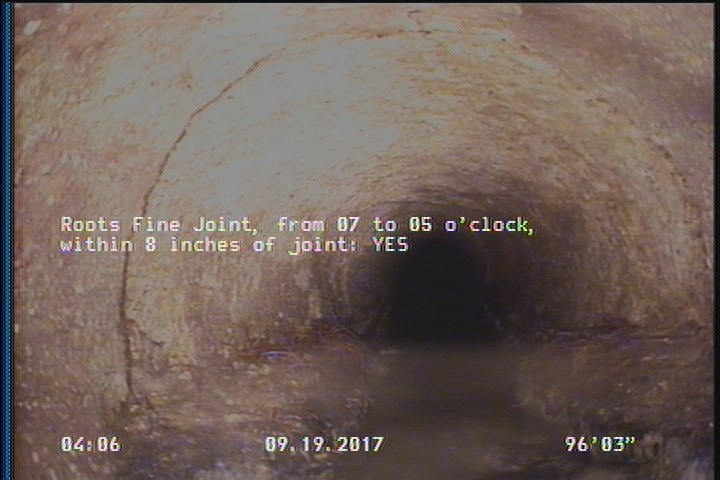

96.3 ft. - Roots Fine Joint, from 07 to 05 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 3 | SAP | — |
| 407 | SSS | — |
| 3 | MGO | MAG COAT |
| 2 | SSS | — |
| 59.7 | TFC | — |
| 0 | AMH | 32 1169 |
| 231 | TFC | — |
| 0 | MWM | — |
| 405.6 | SAP | — |
| 45.8 | SSS | — |
| 226.1 | TF | — |
| 39.5 | TFC | — |
| 96.3 | RFJ | — |
| 408.3 | AMH | 32 1168 |
| 405.6 | SSS | — |
| 408.3 | MGO | LATERAL AT MH 3 OCLOCK |
Properties (5)
- additional_info
- SC345939
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-19T04:03:16-07:00
- is_lateral_inspection
- false
