Wastewater/Activity/PacpInspection/1.0Sep 20, 2017, 09:07 AM
05 2275_05 0756 _09202017_020840.mp4
- Date
- 09/20/2017
- W/O
- 630370
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00484
- PipeID
- P05983
- Time
- 2:07 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4979
- Sewer Name
- 05 MANCHESTER-VERMONT RELIEF TRUNK
- City
- LOS ANGELES
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_630370_TV05315_AUG2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 0756
- Downstream MH
- 05 2275
- Dir. of Survey
- Upstream
- Length Surveyed
- 228.2 ft.
- Total Length
- 228.2 ft.
- Structural Index
- 4
- Structural Quick
- 4200
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2H00
- O&M Rating
- 94
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 102
Observation photos (3)

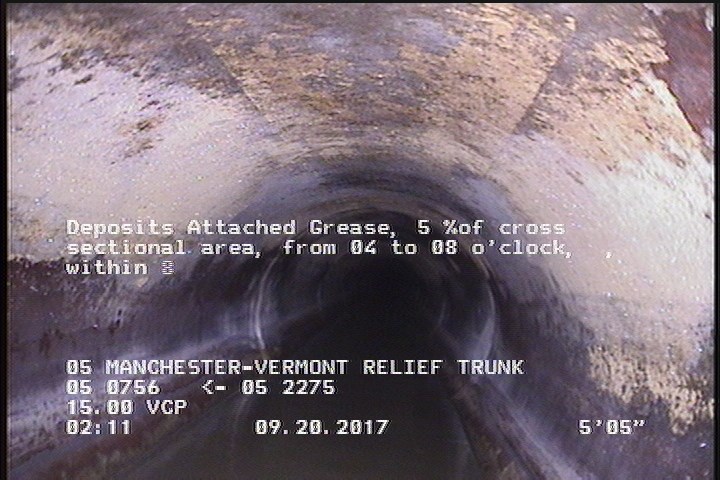

5.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

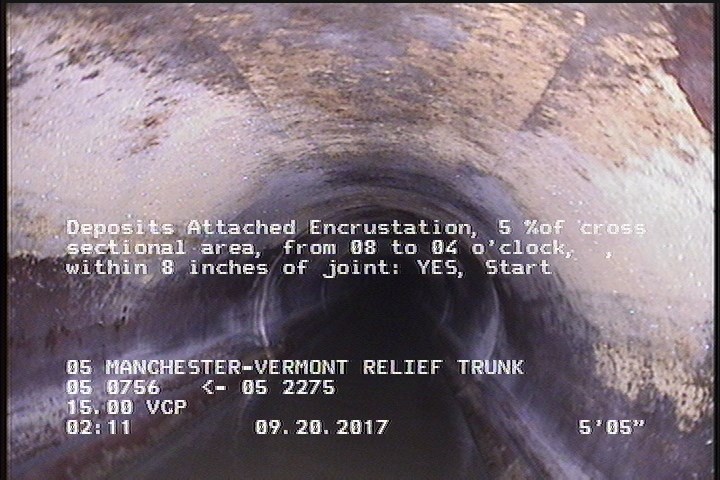

5.4 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES, Start

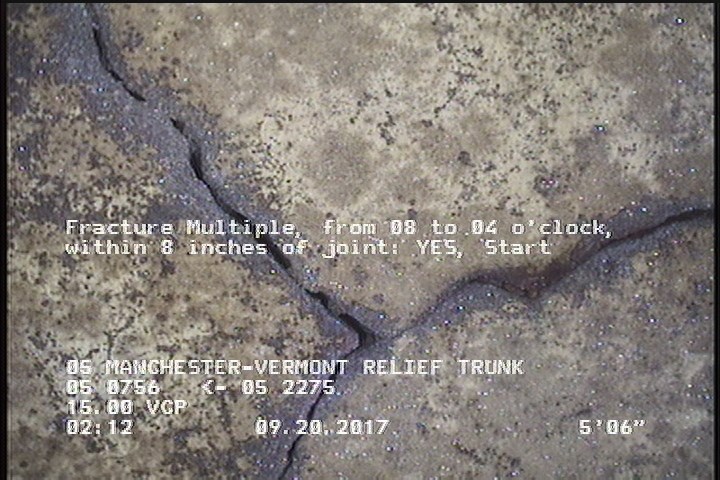

5.5 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 5.4 | DAGS | — |
| 0 | MWM | — |
| 228.2 | MGO | CONNECTION AT 3 OC |
| 228.2 | DAGS | — |
| 228.2 | AMH | 05 2275 |
| 0 | AMH | 05 0756 |
| 228.2 | MGO | CONNECTION AT 9 OC |
| 227 | MGO | SPALLING THROUGHOUT THE REACH |
| 228.2 | DAE | — |
| 0 | MWL | — |
| 228.2 | FM | — |
| 5.5 | FM | — |
| 5.4 | DAE | — |
Properties (5)
- additional_info
- SC345971
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-09-20T02:07:54-07:00
- is_lateral_inspection
- false
