Wastewater/Activity/PacpInspection/1.0Dec 6, 2016, 12:27 PM
02 1544A_02 1544_12062016_043400.mp4
- Date
- 12/06/2016
- W/O
- 607654
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00230
- PipeID
- P03973
- Time
- 4:27 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3932
- Sewer Name
- 02 ARIZONA AVENUE TRUNK, SECTION 1
- City
- EAST LOS ANGELES
- Loc. details
- Alley
- Location Code
- H
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 12
- Purpose
- Routine Assessment
- Project
- WO_607654_TV02006_DEC2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 02 1544A
- Downstream MH
- 02 1544
- Dir. of Survey
- Downstream
- Length Surveyed
- 191.6 ft.
- Total Length
- 191.6 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (1)

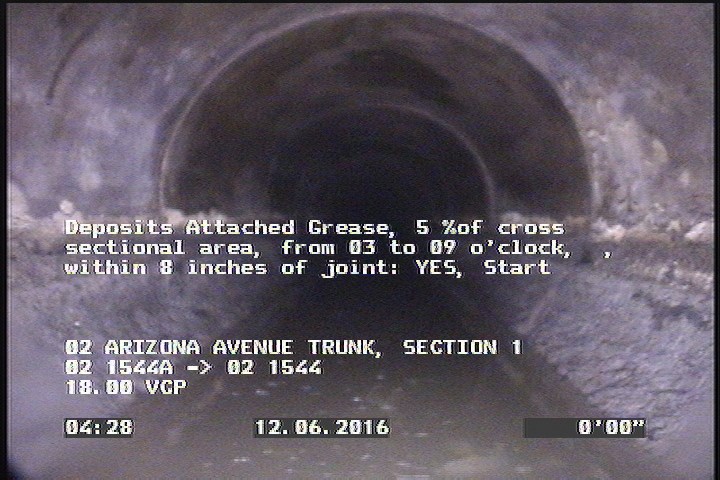

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 179.3 | TBA | — |
| 0 | AMH | 02 1544A |
| 149.4 | TB | — |
| 97.2 | TB | — |
| 189.2 | DAGS | — |
| 2 | DAGS | — |
| 110 | TBA | — |
| 191.6 | AMH | 02 1544 |
| 0 | MGO | LATERAL AT MH 9 O CLOCK |
| 0 | VC | — |
Properties (6)
- additional_info
- SC307676
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-12-06T04:27:00-08:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
