Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 13, 2016, 12:10 PM

  • 02 1306_02 1305A_12132016_041925.mp4

Date
12/13/2016
W/O
607634
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00238
PipeID
P03826
Time
4:10 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3938
Sewer Name
02 BELVEDERE TRUNK
City
EAST LOS ANGELES, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
12
Purpose
Routine Assessment
Project
WO_607634_TV02329_DEC2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 1306
Downstream MH
02 1305A
Dir. of Survey
Downstream
Length Surveyed
160.1 ft.
Total Length
160.1 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 1306 to 02 1305A
MH: 02 1306MH: 02 1305Adownstream0 ft. MGO - General Observation - LATERAL AT MH 9 O CLOCK0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 13060 ft. MWM - Water Mark, 20 %of cross sectional area32.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"71.2 ft. TFD - Tap Factory Made Defective, at 02 o'clock, -, within 8 inches of joint: YES, 4", 1" - broken88.8 ft. TFA - Tap Factory Made Active, at 10 o'clock, -, within 8 inches of joint: NO, 4"95.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES102.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start156.1 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish160.1 ft. MGO - General Observation - LATERAL AT MH 9 O CLOCK160.1 ft. AMH - Downstream Manhole, Survey Ends - 02 1305a

Observation photos (2)

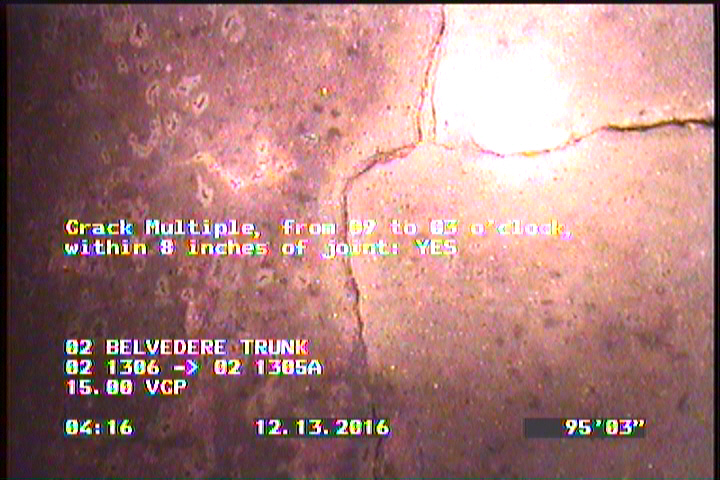

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    95.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

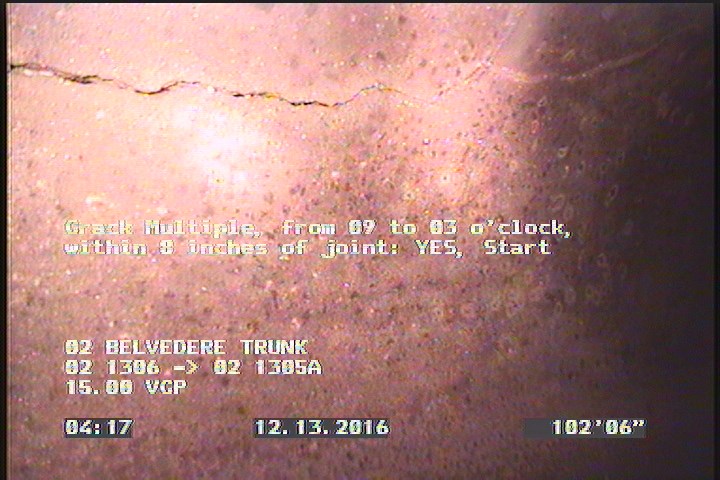

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    102.5 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P03826Work order 607634

Observations (12)

DistanceCodeObservation
0MGOLATERAL AT MH 9 O CLOCK
71.2TFDbroken
88.8TFA—
0MWL—
95.2CM—
102.5CM—
32.2TFC—
0AMH02 1306
0MWM—
156.1CM—
160.1MGOLATERAL AT MH 9 O CLOCK
160.1AMH02 1305a

Properties (6)

additional_info
SC317682
custom_field_two
3
customer
LACSD
datetime
2016-12-13T04:10:00-08:00
documentation
PRO-PIPE
is_lateral_inspection
false
