Wastewater/Activity/PacpInspection/1.0Nov 8, 2016, 08:28 AM
22 0341_22 0340_11082016_003015.mp4
- Date
- 11/08/2016
- W/O
- 602235
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00830
- PipeID
- P16668
- Time
- 12:28 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4007
- Sewer Name
- 22 WALNUT CREEK TRUNK, SECTS 1&2
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_602235_TV22111_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0341
- Downstream MH
- 22 0340
- Dir. of Survey
- Downstream
- Length Surveyed
- 196.8 ft.
- Total Length
- 196.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412G
- O&M Rating
- 82
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 82
Observation photos (2)

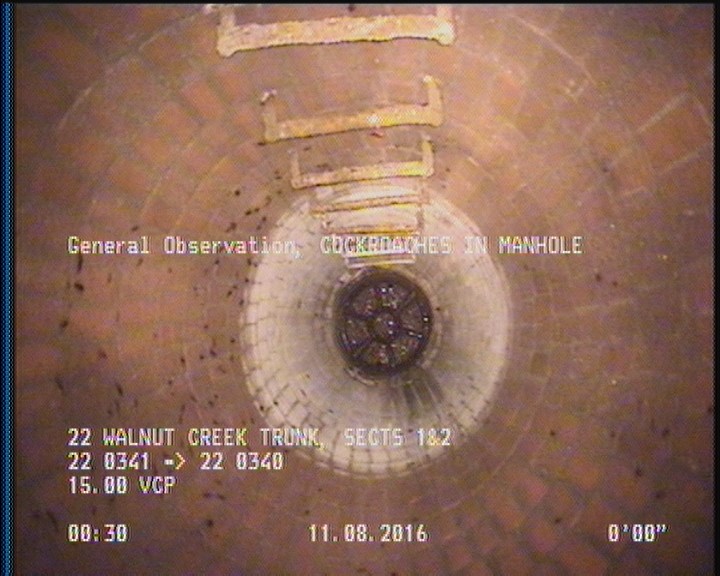

0 ft. - General Observation - COCKROACHES IN MANHOLE

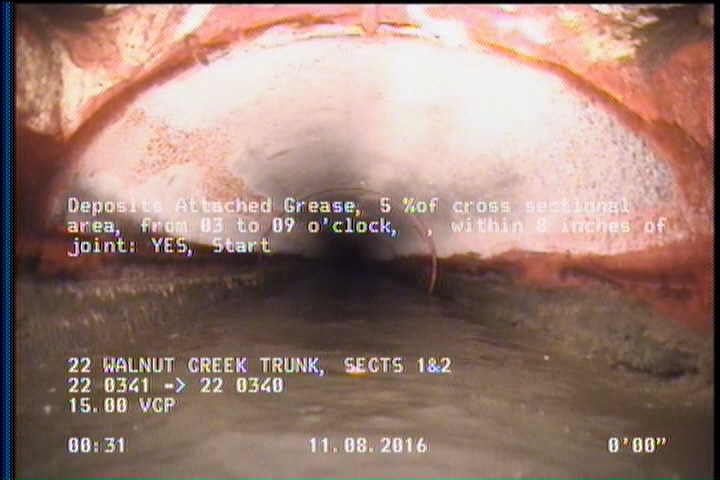

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 195.8 | DAGS | — |
| 196.8 | AMH | 22 0340 |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 96.8 | TFC | — |
| 0 | AMH | 22 0341 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 2 | DAGS | — |
| 0 | MWM | — |
Properties (6)
- additional_info
- SC306347
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-08T00:28:56-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
