Wastewater/Activity/PacpInspection/1.0Nov 7, 2016, 11:48 AM
22 0354_22 0353 _11072016_034928.mp4
- Date
- 11/07/2016
- W/O
- 602235
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00830
- PipeID
- P16686
- Time
- 3:48 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4006
- Sewer Name
- 22 WALNUT CREEK TRUNK, SECTS 1&2
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_602235_TV22111_NOV2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 22 0354
- Downstream MH
- 22 0353
- Dir. of Survey
- Downstream
- Length Surveyed
- 176.1 ft.
- Total Length
- 176.1 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 412F
- O&M Rating
- 74
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 74
Observation photos (1)

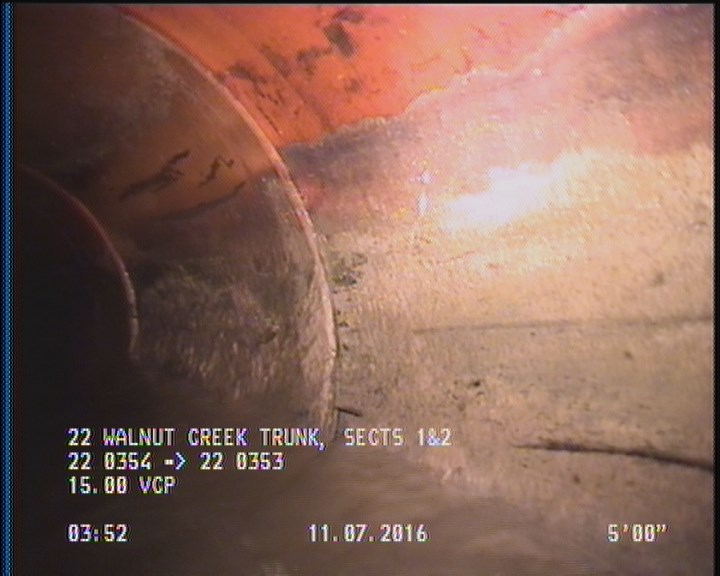

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | DAGS | — |
| 0 | MWM | — |
| 176.1 | AMH | 22 0353 |
| 0 | AMH | 22 0354 |
| 139.6 | TBA | — |
| 174.6 | DAGS | — |
Properties (6)
- additional_info
- SC306346
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-11-07T03:48:56-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
