Wastewater/Activity/PacpInspection/1.0Dec 5, 2016, 12:05 PM
01 0520A_01 0520_12052016_041702.mp4
- Date
- 12/05/2016
- W/O
- 602233
- Weather
- Dry
- Operator/Surveyor
- R.VARGAS
- Sewer ID
- Z00206
- PipeID
- P01005
- Time
- 4:05 AM
- Certificate
- U-209-211
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3896
- Sewer Name
- 01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 10
- Purpose
- Routine Assessment
- Project
- WO_602233_TV01017_DEC2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 01 0520A
- Downstream MH
- 01 0520
- Dir. of Survey
- Downstream
- Length Surveyed
- 150 ft.
- Total Length
- 150 ft.
- Structural Index
- 3
- Structural Quick
- 4121
- Structural Rating
- 6
- O&M Index
- 2
- O&M Quick
- 2E12
- O&M Rating
- 60
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 66
Observation photos (3)

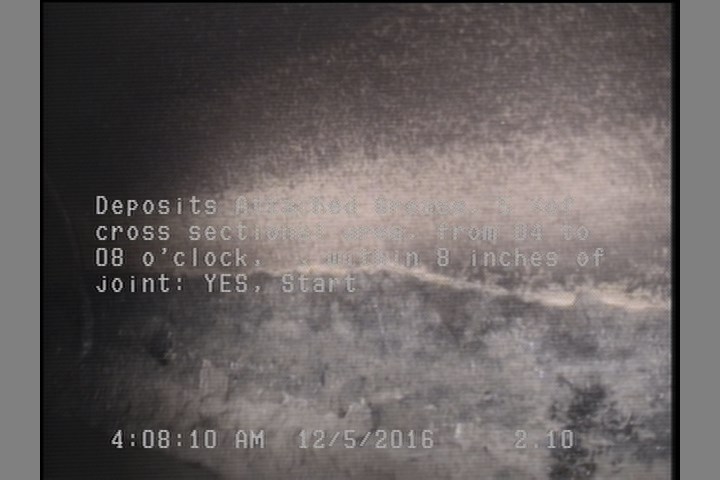

2.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

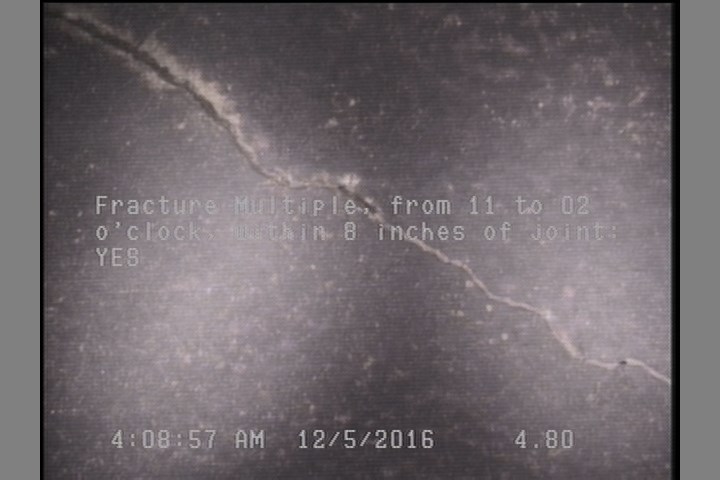

4.8 ft. - Fracture Multiple, from 11 to 02 o'clock, within 8 inches of joint: YES

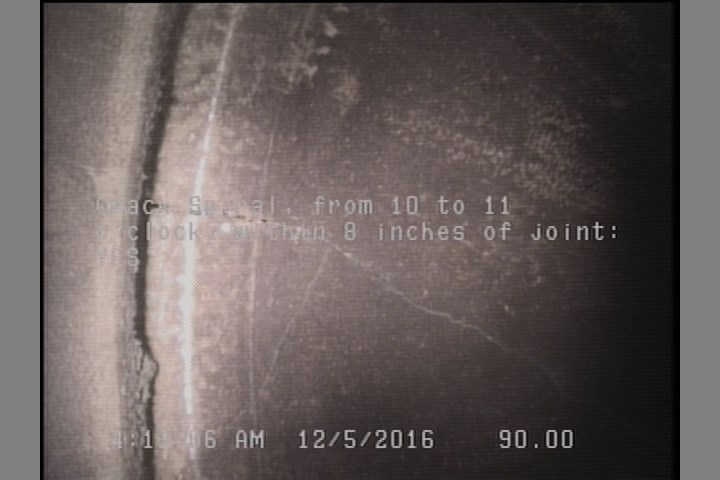

90 ft. - Crack Spiral, from 10 to 11 o'clock, within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 114.9 | TFC | — |
| 50.4 | TFA | — |
| 4.9 | TFC | — |
| 150 | AMH | 01 0520 |
| 90 | CS | — |
| 0 | MWM | — |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK ACTIVE |
| 4.8 | FM | — |
| 0 | AMH | 01 0520A |
| 150 | VC | AT MH |
| 2.1 | DAGS | — |
| 145.4 | DAGS | — |
| 100.2 | TFA | — |
| 85.9 | TF | — |
| 0 | MWL | — |
| 53 | TFC | — |
| 0 | VC | AT MH |
Properties (6)
- additional_info
- SC305230
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-12-05T04:05:27-08:00
- documentation
- PRO PIPE
- is_lateral_inspection
- false
