Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Dec 5, 2016, 11:35 AM

  • 01 0523_01 0522_12052016_033734.mp4

Date
12/05/2016
W/O
602233
Weather
Dry
Operator/Surveyor
R.VARGAS
Sewer ID
Z00206
PipeID
P01008
Time
3:35 AM
Certificate
U-209-211
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3896
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Easement/Right of Way
Location Code
D
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
10
Purpose
Routine Assessment
Project
WO_602233_TV01017_DEC2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
01 0522
Downstream MH
01 0523
Dir. of Survey
Upstream
Length Surveyed
2.1 ft.
Total Length
2.1 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
4111
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
5
Pipe schematic from manhole 01 0522 to 01 0523
MH: 01 0522MH: 01 0523upstream0 ft. OBZ - Obstacles Other, 30 %of cross sectional area, from 03 to 09 o'clock - AT MH DEBRIS0 ft. MSA - Survey Abandoned - SEVERE DEBRIS AND PIECE OF WOOD AT MH2.1 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK ACTIVE2.1 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. MGO - General Observation - PIECE OF WOOD2.1 ft. MWM - Water Mark, 15 %of cross sectional area2.1 ft. VC - Vermin Cockroach2.1 ft. AMH - Downstream Manhole, Survey Begins - 01 0522

Observation photos (3)

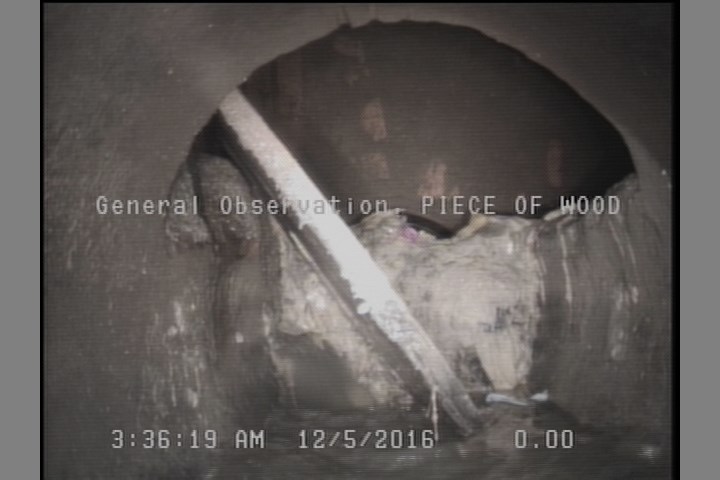

  • General Observation - PIECE OF WOOD

    0 ft. - General Observation - PIECE OF WOOD

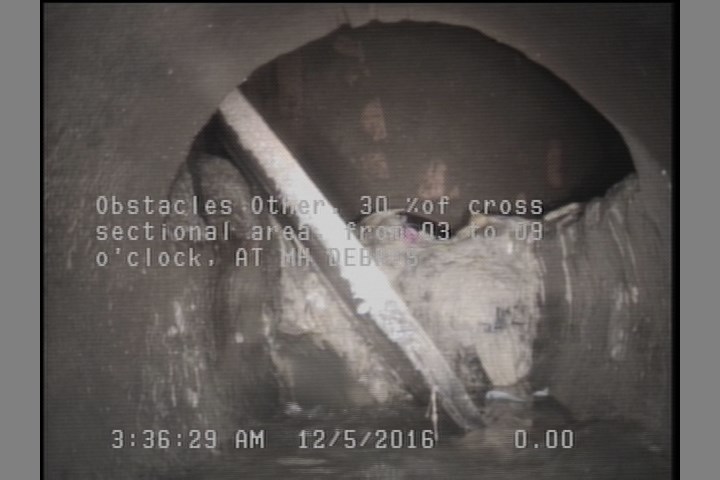

  • Obstacles Other, 30 %of cross sectional area, from 03 to 09 o'clock - AT MH DEBRIS

    2.1 ft. - Obstacles Other, 30 %of cross sectional area, from 03 to 09 o'clock - AT MH DEBRIS

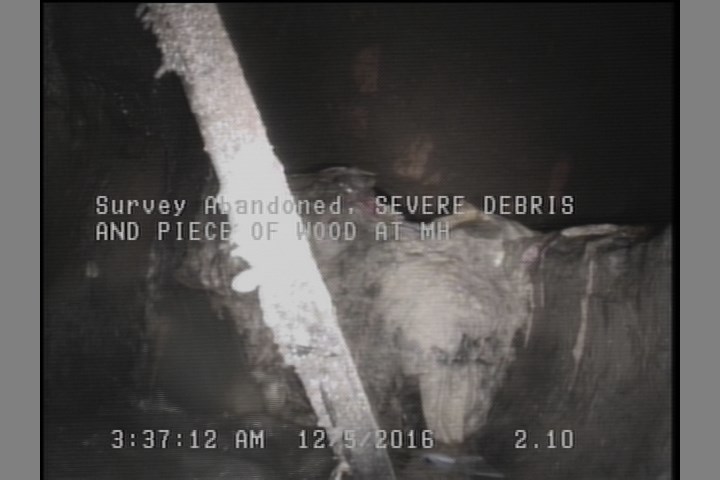

  • Survey Abandoned - SEVERE DEBRIS AND PIECE OF WOOD AT MH

    2.1 ft. - Survey Abandoned - SEVERE DEBRIS AND PIECE OF WOOD AT MH

All inspections of P01008Work order 602233

Observations (8)

DistanceCodeObservation
0MGOCONNECTION AT MH 9 O'CLOCK ACTIVE
2.1OBZAT MH DEBRIS
0MWL—
2.1MSASEVERE DEBRIS AND PIECE OF WOOD AT MH
0MGOPIECE OF WOOD
0MWM—
0VC—
0AMH01 0522

Properties (6)

additional_info
SC305230
custom_field_two
5
customer
LACSD
datetime
2016-12-05T03:35:14-08:00
documentation
PRO PIPE
is_lateral_inspection
false
