Wastewater/Activity/PacpInspection/1.0Oct 13, 2016, 10:17 AM
02 2264_02 2263 _13102016_032440.mp4
- Date
- 10/13/2016
- W/O
- 592208
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00257
- PipeID
- P04516
- Time
- 3:17 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3740
- Sewer Name
- 02 DOWNEY-BELLFLOWER RELIEF TRUNK RELOCATION
- City
- DOWNEY, CA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 32
- Purpose
- Routine Assessment
- Project
- WO_592208_TV02104_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 2264
- Downstream MH
- 02 2263
- Dir. of Survey
- Downstream
- Length Surveyed
- 88.8 ft.
- Total Length
- 88.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2B00
- O&M Rating
- 34
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 34
Observation photos (1)

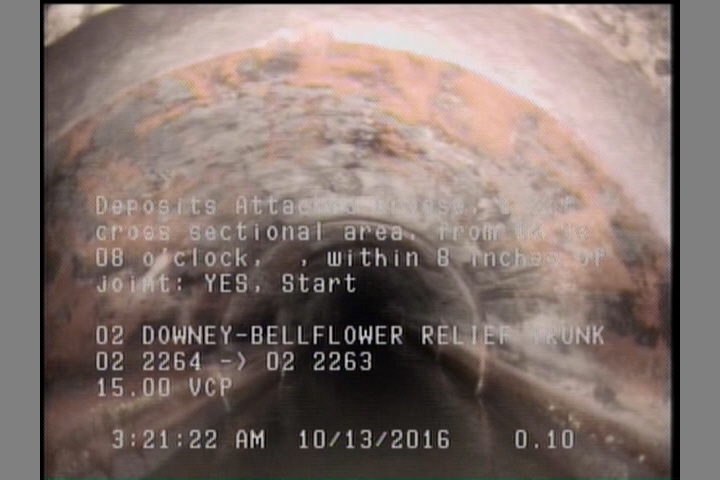

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | MWL | — |
| 2 | DAGS | — |
| 88.8 | AMH | 02 2263 |
| 0 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 88.8 | DAGS | — |
| 0 | AMH | 02 2264 |
Properties (6)
- additional_info
- SC303727
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-13T03:17:23-07:00
- documentation
- PRO-PIPE
- is_lateral_inspection
- false
