Wastewater/Activity/PacpInspection/1.0Oct 18, 2016, 08:09 AM
05 2231_05 2297 _18102016_011108.mp4
- Date
- 10/18/2016
- W/O
- 588899
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00429
- PipeID
- P07421
- Time
- 1:09 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3806
- Sewer Name
- 05 COLDEN AVENUE TRUNK
- City
- LOS ANGELES
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_588899_TV05142_SEP2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 2231
- Downstream MH
- 05 2297
- Dir. of Survey
- Downstream
- Length Surveyed
- 292.3 ft.
- Total Length
- 292.3 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (2)

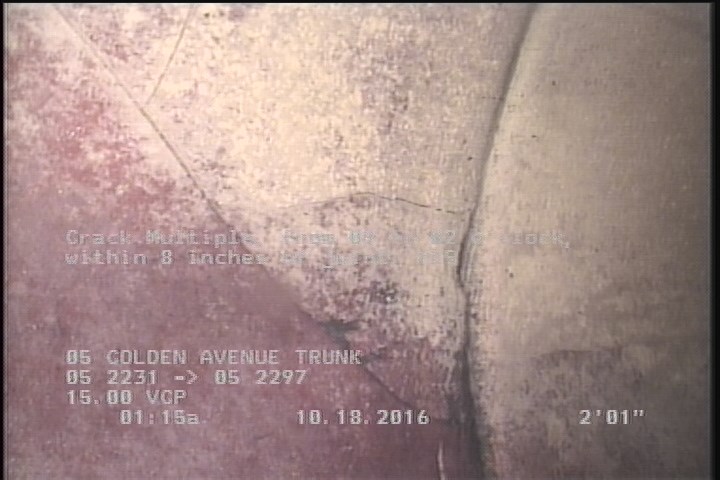

2.1 ft. - Crack Multiple, from 09 to 02 o'clock, within 8 inches of joint: YES

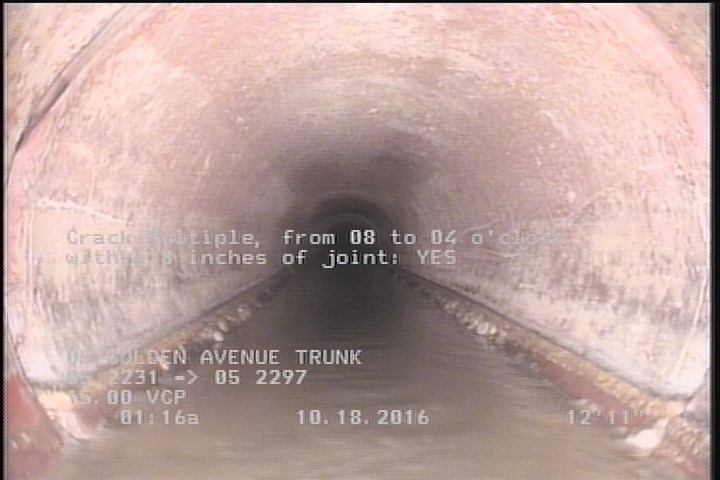

12.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | LATERAL AT MH 6 OCLOCK |
| 292.3 | AMH | 05 2297 |
| 0 | MWM | — |
| 0 | AMH | 05 2231 |
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 12.9 | CM | — |
| 0 | MWL | — |
| 2.1 | CM | — |
| 0 | MGO | LATERAL AT MH 9 OCLOCK |
Properties (7)
- additional_info
- SC304551
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-10-18T01:09:07-07:00
- documentation
- PROPIPE
- is_lateral_inspection
- false
- year_laid
- 28956
