Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 15, 2017, 10:42 AM

  • 03 0582_03 0581_6152017_035148.mp4

Date
06/15/2017
W/O
0635592
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00382
PipeID
P05244
Time
3:42 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0562
Sewer Name
03 MARINA RELIEF TRUNK, SECTION 2
City
LONG BEACH
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 03
Page No.
25
Purpose
Routine Assessment
Project
20170613MDM_MARINA_RELIEF_TRUNK_SECTION_2
Material
Vitrified Clay Pipe
Shape
Circular
Height
24 in.
Upstream MH
03 0582
Downstream MH
03 0581
Dir. of Survey
Downstream
Length Surveyed
400.8 ft.
Total Length
400.8 ft.
Structural Index
3
Structural Quick
3322
Structural Rating
13
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole 03 0582 to 03 0581
MH: 03 0582MH: 03 0581downstream0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 3:50AM0 ft. MWM - Water Mark, 40 %of cross sectional area2 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start29.3 ft. FC - Fracture Circumferential, from 02 to 03 o'clock, within 8 inches of joint: YES - HAIRLINE115.2 ft. FC - Fracture Circumferential, from 09 to 11 o'clock, within 8 inches of joint: YES - HAIRLINE141.8 ft. FL - Fracture Longitudinal, at 12 o'clock, within 8 inches of joint: YES - H178.1 ft. FL - Fracture Longitudinal, at 02 o'clock, within 8 inches of joint: YES - H207.6 ft. FL - Fracture Longitudinal, at 11 o'clock, within 8 inches of joint: YES - H272.8 ft. MGO - General Observation - 24" VCP400.1 ft. DAGS - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish400.8 ft. AMH - Downstream Manhole, Survey Ends - 4:20AM

Observation photos (2)

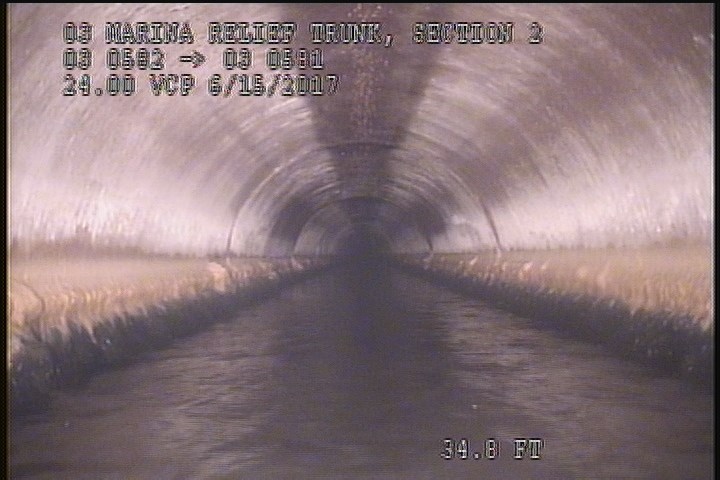

  • Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

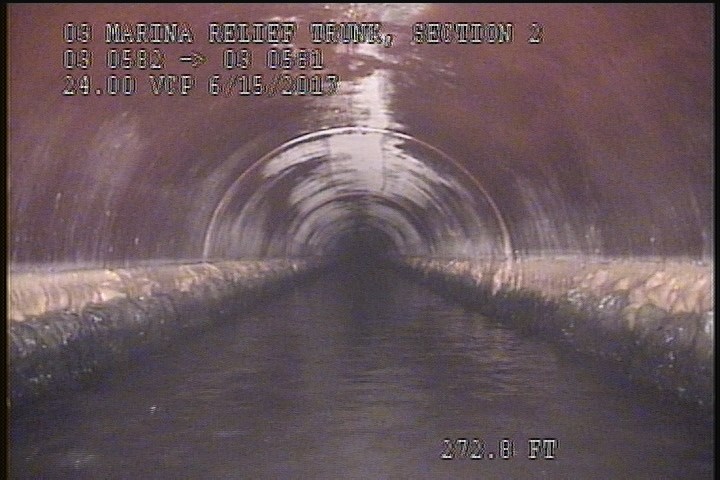

  • General Observation - 24" VCP

    272.8 ft. - General Observation - 24" VCP

All inspections of P05244Work order 0635592

Observations (12)

DistanceCodeObservation
0MWL—
0AMH3:50AM
272.8MGO24" VCP
178.1FLH
141.8FLH
400.8AMH4:20AM
2DAGS—
29.3FCHAIRLINE
0MWM—
115.2FCHAIRLINE
400.1DAGS—
207.6FLH

Properties (6)

custom_field_three
HAIRLINE FRACTURES
custom_field_two
4
customer
LACSD
datetime
2017-06-15T03:42:54-07:00
documentation
MARTIN,MANANES,OLIVER 111
is_lateral_inspection
false
